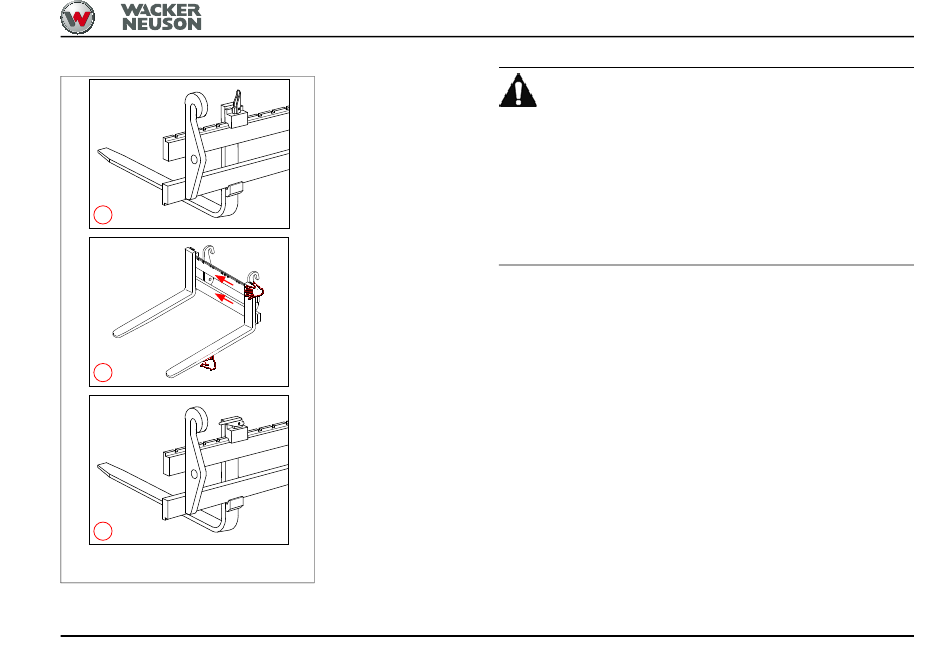

Fig. 100
BA TH412 * 06/2017 * 4512_5-11_Arbeitsbetrieb_en.fm
CAUTION
Crushing hazard when shifting the fork arms!
Fingers and hands can be crushed between the fork
frame and fork arms.
► Do not touch the sliding surface of the fork frame when
shifting the fork arms.
► Wear protective equipment.
1. Raise the pallet forks 10 – 30 cm above the ground.
2. Set the fork lock to position 1.
➥ The lock is released.
3. Move the forks to the required position.
- Hold the forks as shown.
4. Set the fork lock to position 3.
5. Shift the forks until the lock engages.
- Hold the forks as shown.
➥ The lock is engaged.
Operation 5
5-77
