5 Operation
Fitting attachments on a mechanical quickhitch
2
1
3

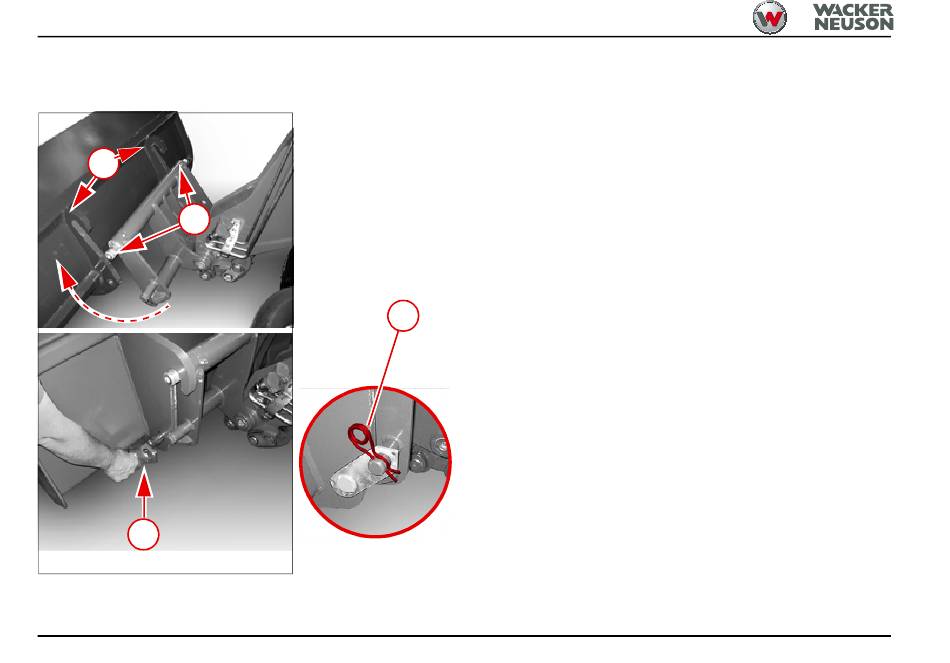

Fig. 76
5-48
The lock pins for the mechanical quickhitch are located at
the front on the loader unit.
1. Retract the telescopic boom completely.
2. Lower the attachment until it is barely above the
ground.
3. Remove lock pins 3.
4. Approach the machine to the attachment.
5. Position pin 1 under catch hooks 2.
6. Raise the loader unit and tilt in the attachment.
7. Insert lock pins 3.
4
8. Secure the lock pin with the safety pin 4 so that it
cannot slip out.
BA TH412 * 06/2017 * 4512_5-10_Anbaugeraete_en.fm
