3 Introduction

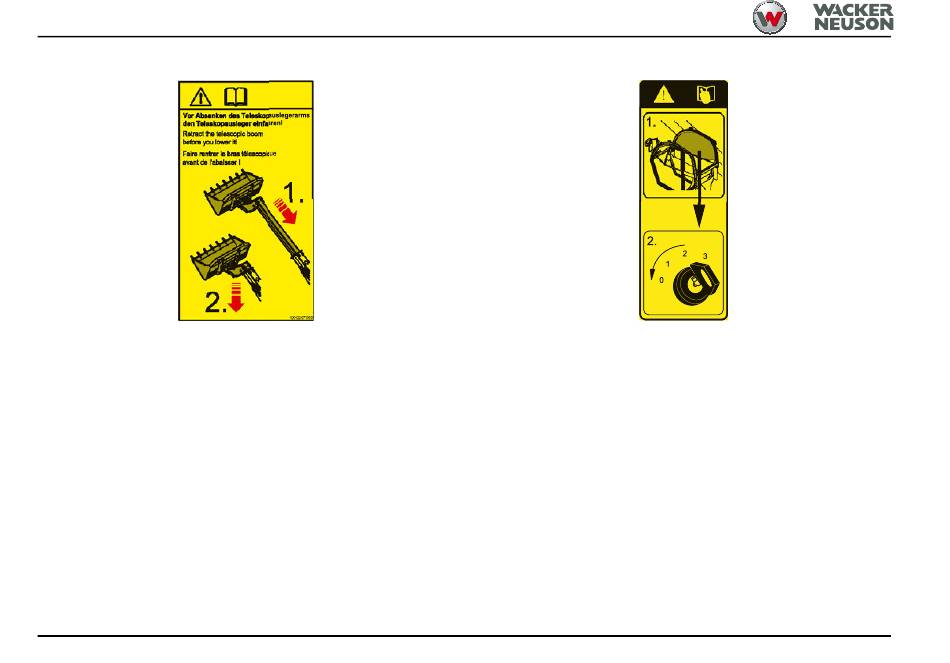

Fig. 15
Warning label W11: Tipping hazard!
Caution! If the loader unit is lowered with the telescopic
boom extended, the safe work load may be exceeded.
This can cause the vehicle to tip forward!
•
Retract the telescopic boom first and then lower it.
•
Observe the safe load indicator.
Located on the right window.
3-26
Fig. 16
Warning label W12: Injury hazard due to lowering of
mast!
•
If the right cabin window is damaged or missing, body
parts may protrude and be crushed by the loader unit.
•
If the right cabin window is damaged or missing,
immediately park the machine and secure it.
Located on the right window.
BA TH412 * 06/2017 * 4512_3-4_Beschilderung_en.fm
