Hydraulic connections on loader unit
NOTICE
Damage to the hydraulic system due to dirt!
► Avoid dirt.
► Pay attention to the daily maintenance plan.
► Ensure that the hydraulic connections are clean.
Operating hydraulic connections on the loader
unit
The hydraulic connections on the loader unit are operated
with additional control lever 6.
Move the additional control lever 6 toward L.
➥ Connection L = pressure side, connection R =
return.
Move control lever 6 toward R.
➥ Connection L = return, connection R = pressure
side.
BA TH412 * 06/2017 * 4512_5-9_Arbeitshydraulik_en.fm
R
R
6
L

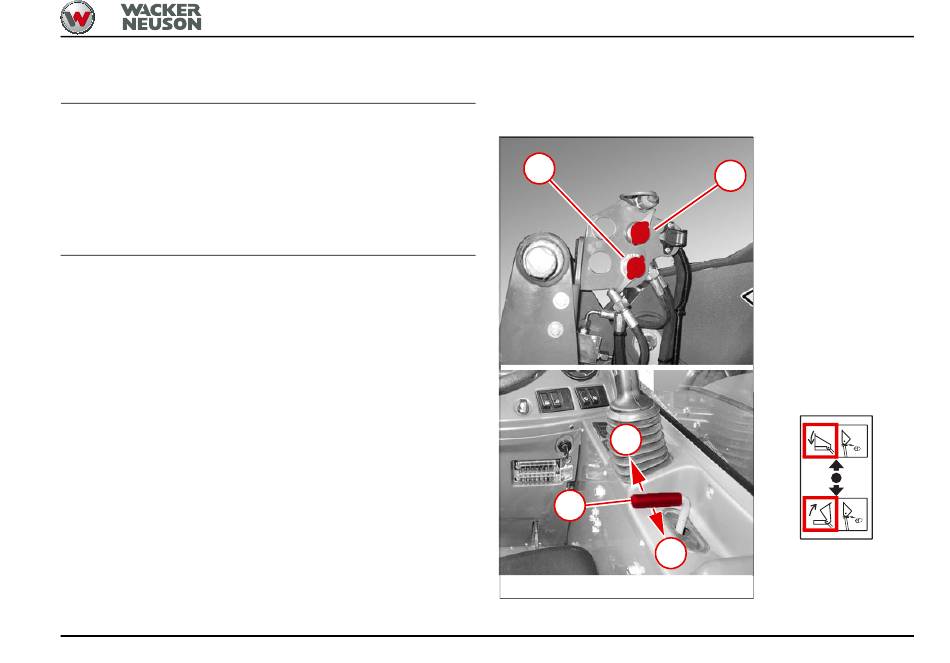

Fig. 73
Operation 5
L
5-41
