7 Maintenance
Connecting the battery jumper cables
Follow the order of the activity!
1. Remove the cover of the positive terminal L of the
machine.
2. First connect one end of the red battery jumper cable
(+) to the positive terminal of the discharged battery L,
then connect the other end to the positive terminal of
the starting battery V.
3. Connect one end of the black battery jumper cable (−)
to the negative terminal of the starting battery V.
4. Connect the other end of the black battery jumper
cable to a bare spot on the engine block.
- Do not connect it to the negative terminal of the
discharged battery, otherwise explosive vapors can
ignite if sparks are formed.
- Maintain a minimum distance of 30 cm from the
battery.
7-60
1
r
2
L
V
V
s
3

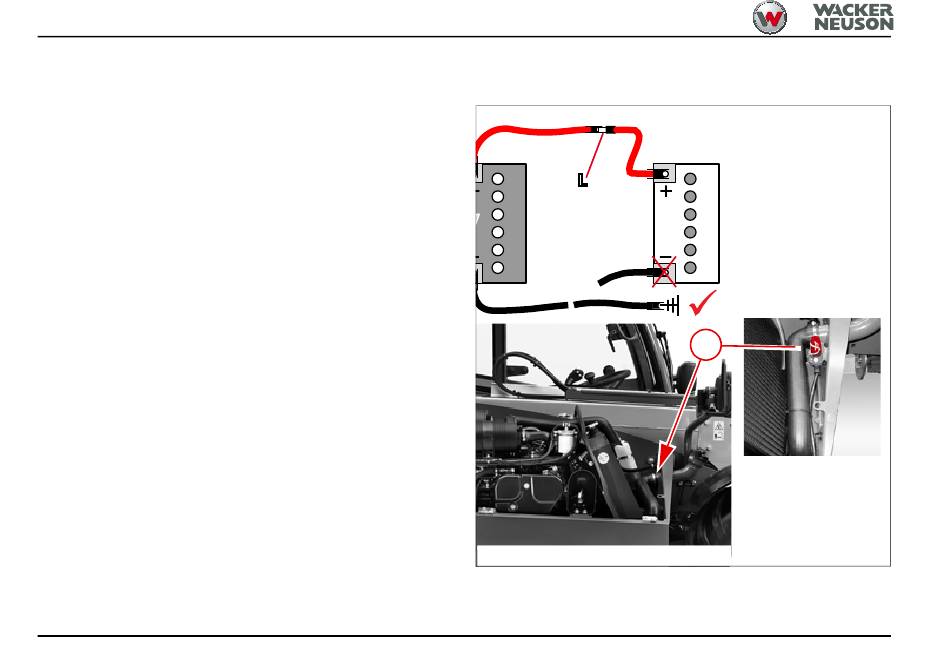

Fig. 161
