Grading

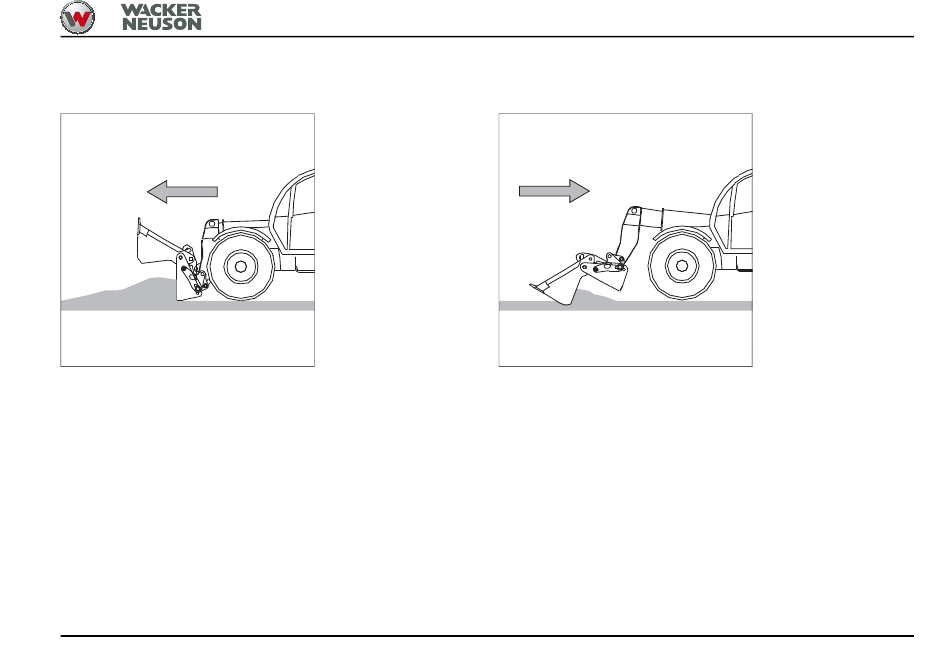

Fig. 93
1. Fold up the front half of the bucket.
2. Lower the universal bucket to the ground.
3. Set the depth of the layer you want to remove with the
lift hydraulics.
4. Set the angle of the rear cutting edge.
5. Grade the surface by performing forward machine
travel.
BA TH412 * 06/2017 * 4512_5-11_Arbeitsbetrieb_en.fm
Drawing material backward
Fig. 94
1. Fold up the front half of the bucket.
2. Lower the universal bucket to the ground.
3. Set the angle of the front cutting edge.
4. Select bucket mode
– see "Selecting the operating
mode" on page 5-37
5. Machine travel in reverse slowly fills the universal
bucket.
Operation 5
5-69
