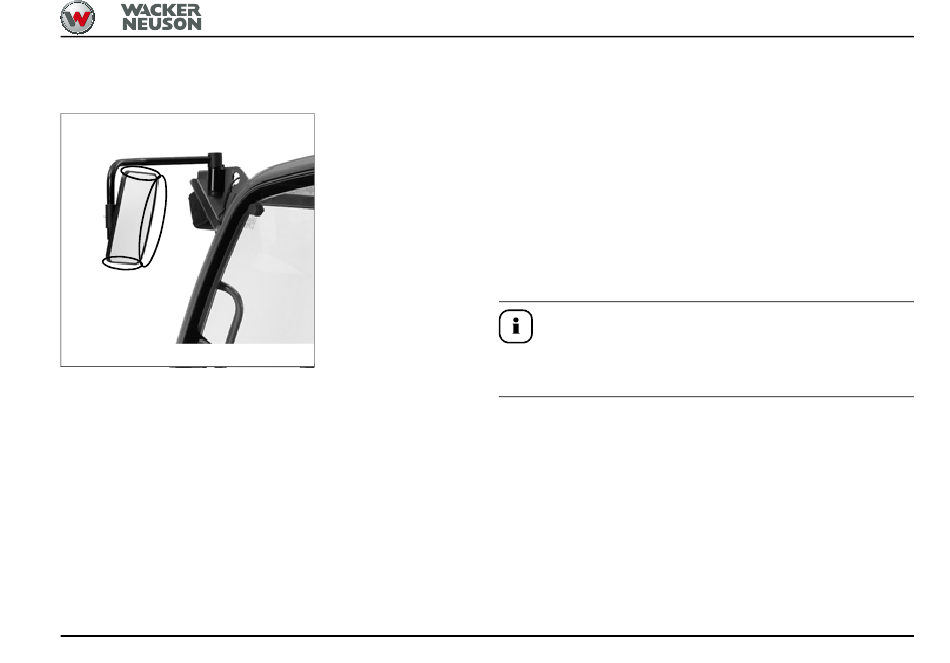

Adjusting the mirrors
Y
X
Z
Fig. 27
BA TH412 * 06/2017 * 4512_4-1_Steuerstand_en.fm
1. Adjust the rearview mirrors as shown.
- Turn the mirror bracket sufficiently forward (about
90°).
2. Adjust the rearview mirrors.
- The outer edge of the machine must be visible on
the inside X.
- The horizon must be visible at the upper edge Y.
- At the lower edge Z, the visible area must be as
close as possible to the machine.
Information
Adjust the inside rearview mirror (if present) in the same
way, so that the area directly behind the vehicle is visible.
Putting into operation 4
4-13
