Meaning of information labels

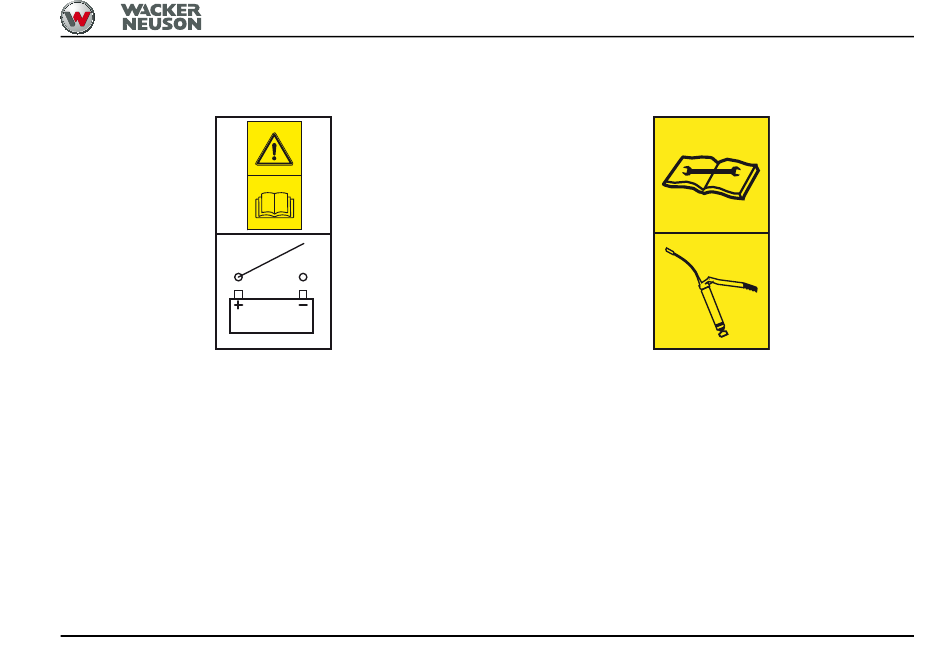

Fig. 17
Information label H1: Battery master switch
The battery disconnect switch is located here.
Observe the description in the Operator's Manual.
Located on the engine cover.
BA TH412 * 06/2017 * 4512_3-4_Beschilderung_en.fm
Fig. 18
Information label H2: Lubrication
Lubricate all lubrication points every 20 operating hours.
– see "Lubrication plan" on page 7-18
Located in the operator's compartment.
Introduction 3
3-27
