Loader unit control lever
A
S
E
Fig. 63

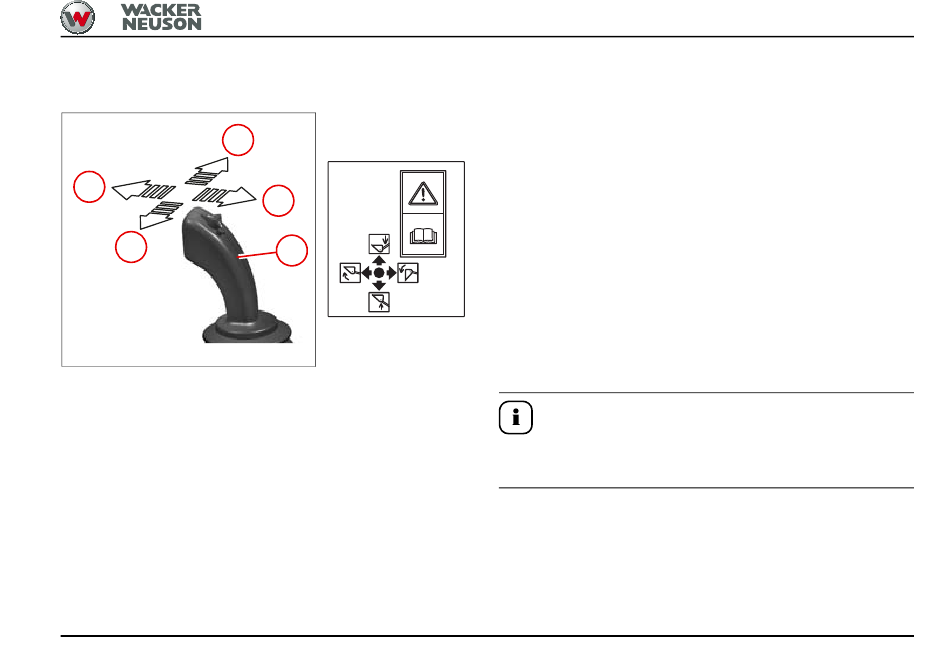

The control lever 4 controls the work movements of the
loader unit. Control lever is located on the right of the
operator seat.
BA TH412 * 06/2017 * 4512_5-9_Arbeitshydraulik_en.fm
H
4
Loader unit
Move the control lever 4 toward H:
➥ The loader unit is raised. The telescopic boom is
extended.
Move the control lever 4 toward S:
➥ The loader unit is lowered. The telescopic boom is
retracted.
Attachment
Move control lever 4 toward E.
➥ The attachment tilts in.
Move control lever 4 toward A.
➥ The attachment tilts out.
Information
The control lever automatically returns to the middle
position as soon as it is released.
Operation 5
5-29
