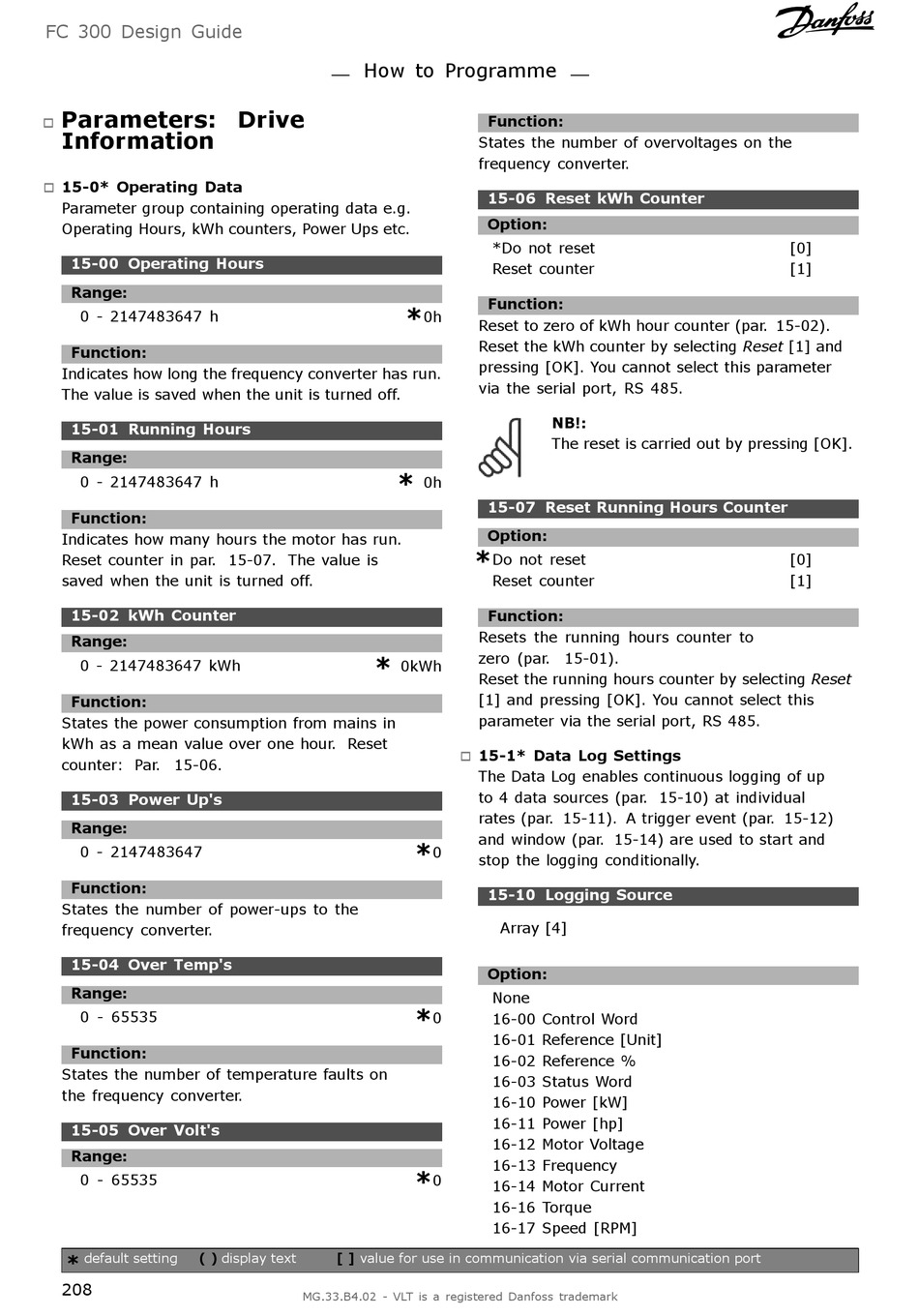

FC 300 Design Guide
Parameters: Drive
"
Information
15-0* Operating Data
"
Parameter group containing operating data e.g.
Operating Hours, kWh counters, Power Ups etc.
15-00 Operating Hours
Range:
0 - 2147483647 h
Function:
Indicates how long the frequency converter has run.
The value is saved when the unit is turned off.
15-01 Running Hours
Range:
0 - 2147483647 h
Function:
Indicates how many hours the motor has run.
Reset counter in par. 15-07. The value is
saved when the unit is turned off.
15-02 kWh Counter
Range:
0 - 2147483647 kWh
Function:
States the power consumption from mains in
kWh as a mean value over one hour. Reset
counter: Par. 15-06.
15-03 Power Up's
Range:
0 - 2147483647
Function:
States the number of power-ups to the
frequency converter.
15-04 Over Temp's
Range:
0 - 65535
Function:
States the number of temperature faults on
the frequency converter.
15-05 Over Volt's
Range:
0 - 65535
default setting
( )
*
208
How to Programme
*
display text
[ ]
value for use in communication via serial communication port
MG.33.B4.02 - VLT is a registered Danfoss trademark
Function:
States the number of overvoltages on the
frequency converter.
15-06 Reset kWh Counter
Option:
*Do not reset
Reset counter
Function:
*
0h
Reset to zero of kWh hour counter (par. 15-02).
Reset the kWh counter by selecting Reset [1] and
pressing [OK]. You cannot select this parameter
via the serial port, RS 485.
NB!:
The reset is carried out by pressing [OK].
*
0h
15-07 Reset Running Hours Counter
Option:
*
Do not reset
Reset counter
Function:
Resets the running hours counter to
zero (par. 15-01).
0kWh
Reset the running hours counter by selecting Reset
[1] and pressing [OK]. You cannot select this
parameter via the serial port, RS 485.
15-1* Data Log Settings
"
The Data Log enables continuous logging of up
to 4 data sources (par. 15-10) at individual
rates (par. 15-11). A trigger event (par. 15-12)
and window (par. 15-14) are used to start and
*
0
stop the logging conditionally.
15-10 Logging Source
Array [4]
Option:
None
*
0
16-00 Control Word
16-01 Reference [Unit]
16-02 Reference %
16-03 Status Word
16-10 Power [kW]
16-11 Power [hp]
16-12 Motor Voltage
16-13 Frequency
*
0
16-14 Motor Current
16-16 Torque
16-17 Speed [RPM]
[0]
[1]
[0]
[1]
