FC 300 Design Guide

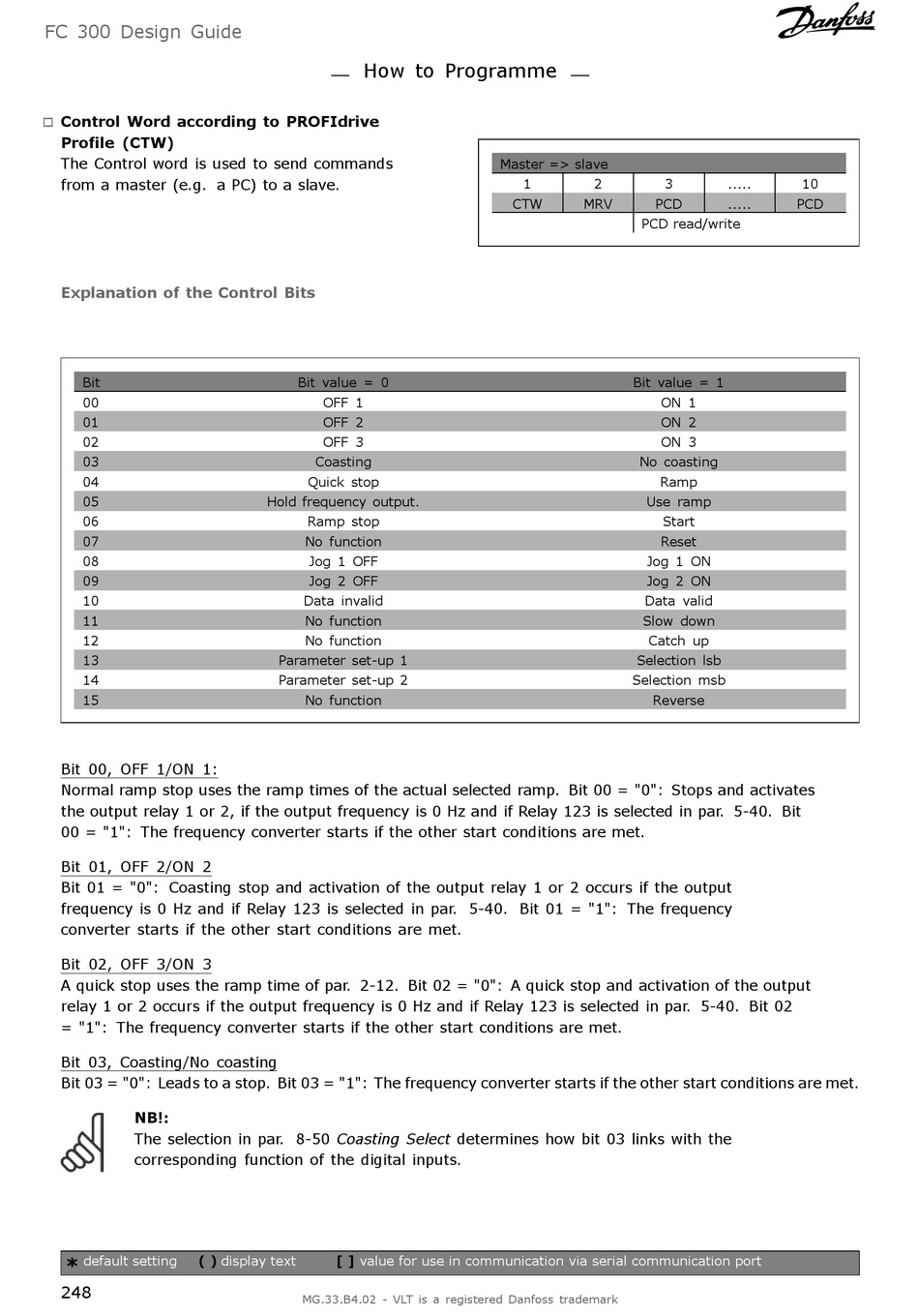

Control Word according to PROFIdrive
"
Profile (CTW)
The Control word is used to send commands
from a master (e.g. a PC) to a slave.
Explanation of the Control Bits
Bit
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
Bit 00, OFF 1/ON 1:
Normal ramp stop uses the ramp times of the actual selected ramp. Bit 00 = "0": Stops and activates
the output relay 1 or 2, if the output frequency is 0 Hz and if Relay 123 is selected in par. 5-40. Bit
00 = "1": The frequency converter starts if the other start conditions are met.
Bit 01, OFF 2/ON 2
Bit 01 = "0": Coasting stop and activation of the output relay 1 or 2 occurs if the output
frequency is 0 Hz and if Relay 123 is selected in par. 5-40. Bit 01 = "1": The frequency
converter starts if the other start conditions are met.
Bit 02, OFF 3/ON 3
A quick stop uses the ramp time of par. 2-12. Bit 02 = "0": A quick stop and activation of the output
relay 1 or 2 occurs if the output frequency is 0 Hz and if Relay 123 is selected in par. 5-40. Bit 02
= "1": The frequency converter starts if the other start conditions are met.
Bit 03, Coasting/No coasting
Bit 03 = "0": Leads to a stop. Bit 03 = "1": The frequency converter starts if the other start conditions are met.
NB!:
The selection in par. 8-50 Coasting Select determines how bit 03 links with the
corresponding function of the digital inputs.
default setting ( )
*
248
How to Programme
Bit value = 0
OFF 1
OFF 2
OFF 3
Coasting
Quick stop
Hold frequency output.
Ramp stop
No function
Jog 1 OFF
Jog 2 OFF
Data invalid
No function
No function
Parameter set-up 1
Parameter set-up 2
No function
display text [ ] value for use in communication via serial communication port
MG.33.B4.02 - VLT is a registered Danfoss trademark
Master => slave
1 2 3
CTW MRV PCD
PCD read/write
Bit value = 1
ON 1
ON 2
ON 3
No coasting
Ramp
Use ramp
Start
Reset
Jog 1 ON
Jog 2 ON
Data valid
Slow down
Catch up
Selection lsb
Selection msb
Reverse
..... 10
..... PCD
