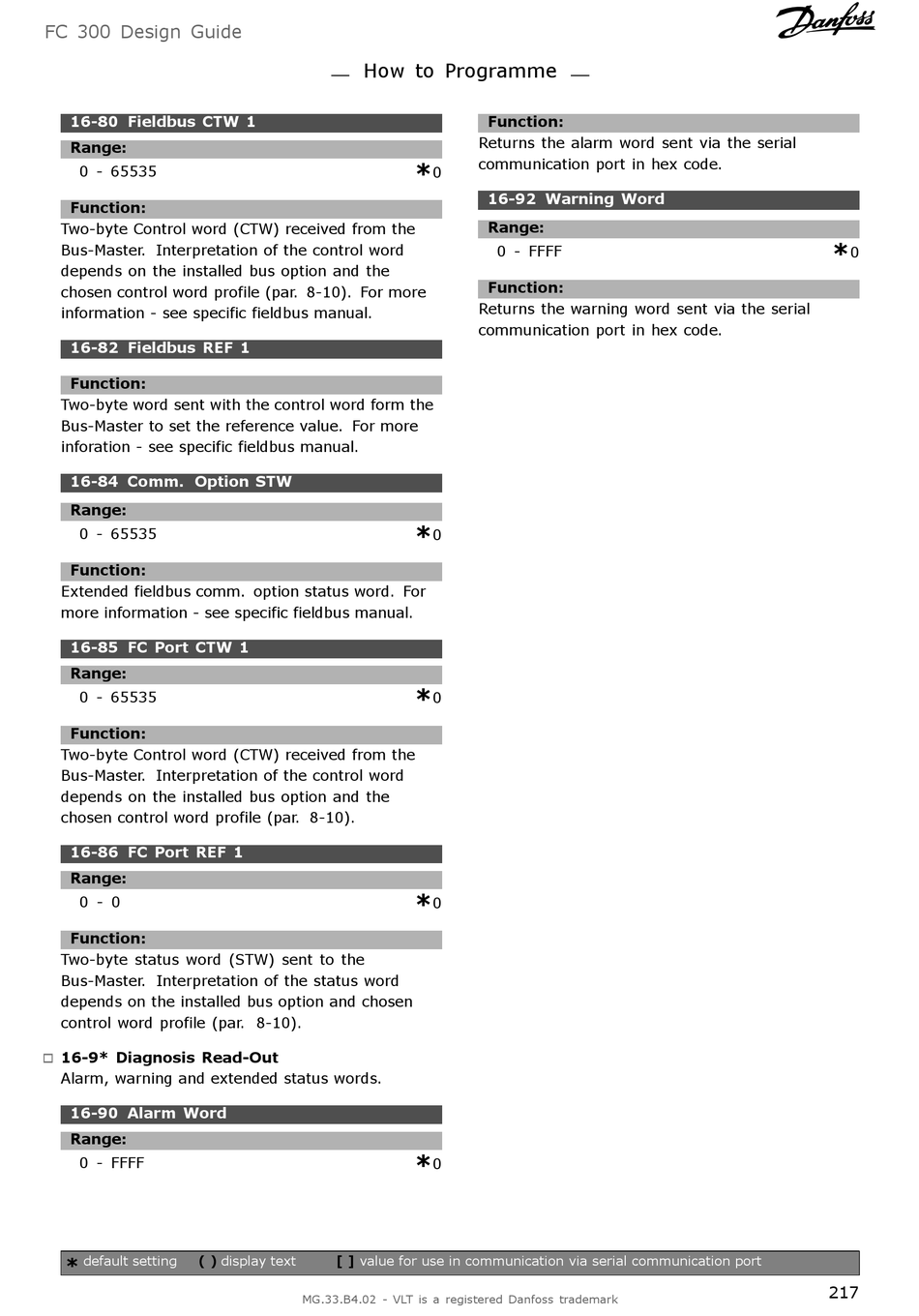

16-80 Fieldbus CTW 1
Range:
0 - 65535
Function:
Two-byte Control word (CTW) received from the
Bus-Master. Interpretation of the control word
depends on the installed bus option and the
chosen control word profile (par. 8-10). For more
information - see specific fieldbus manual.
16-82 Fieldbus REF 1
Function:
Two-byte word sent with the control word form the
Bus-Master to set the reference value. For more
inforation - see specific fieldbus manual.
16-84 Comm. Option STW
Range:
0 - 65535
Function:
Extended fieldbus comm. option status word. For
more information - see specific fieldbus manual.
16-85 FC Port CTW 1
Range:
0 - 65535
Function:
Two-byte Control word (CTW) received from the
Bus-Master. Interpretation of the control word
depends on the installed bus option and the
chosen control word profile (par. 8-10).
16-86 FC Port REF 1
Range:
0 - 0
Function:
Two-byte status word (STW) sent to the
Bus-Master. Interpretation of the status word
depends on the installed bus option and chosen
control word profile (par. 8-10).
16-9* Diagnosis Read-Out
"
Alarm, warning and extended status words.
16-90 Alarm Word
Range:
0 - FFFF
default setting ( )
*
How to Programme
display text [ ] value for use in communication via serial communication port
MG.33.B4.02 - VLT is a registered Danfoss trademark
Function:
Returns the alarm word sent via the serial
communication port in hex code.
*
0
16-92 Warning Word
Range:
0 - FFFF
Function:
Returns the warning word sent via the serial
communication port in hex code.
*
0
*
