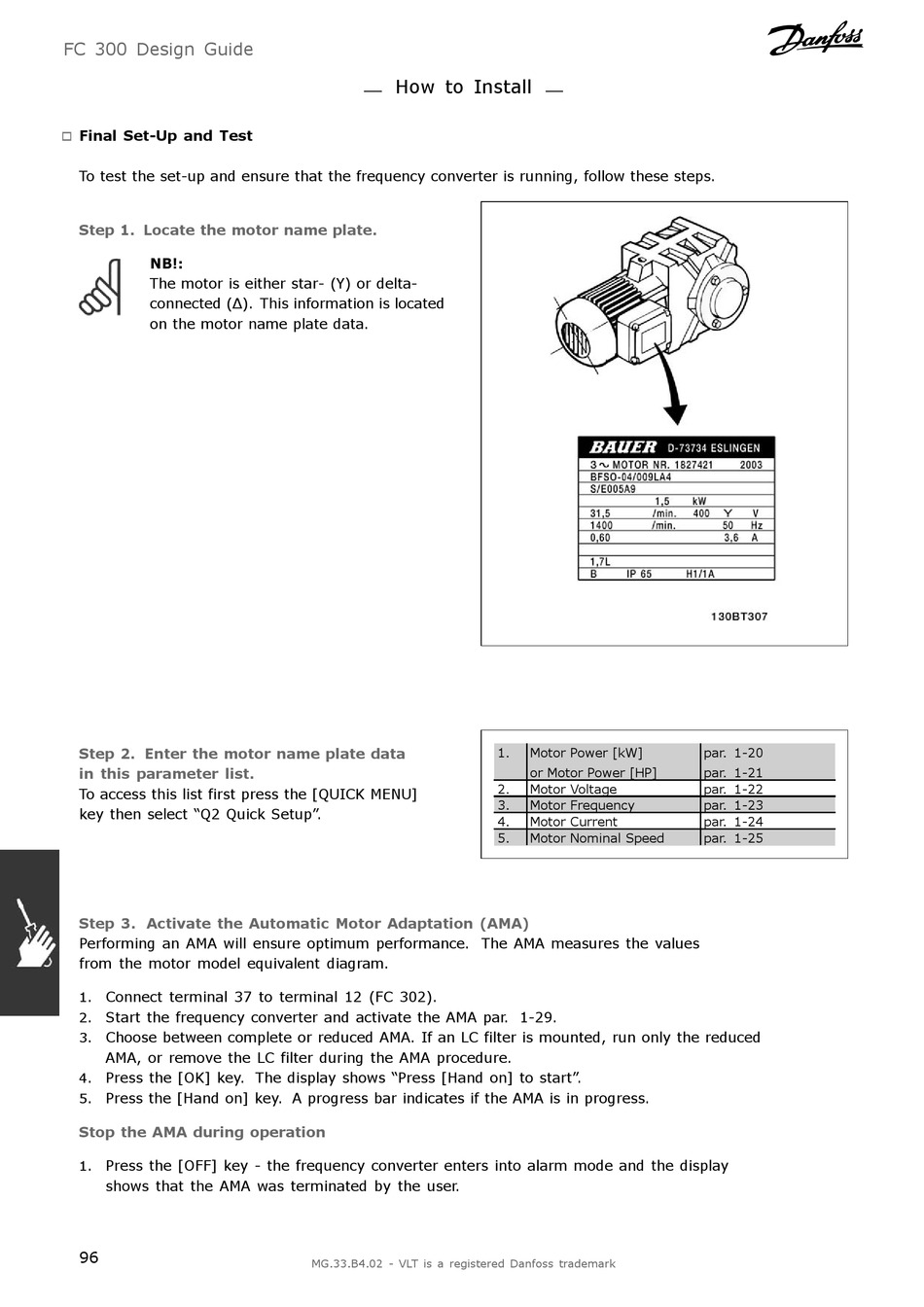

Final Set-Up and Test

"
To test the set-up and ensure that the frequency converter is running, follow these steps.
Step 1. Locate the motor name plate.
NB!:
The motor is either star- (Y) or delta-
connected (∆). This information is located
on the motor name plate data.
Step 2. Enter the motor name plate data
in this parameter list.
To access this list first press the [QUICK MENU]
key then select "Q2 Quick Setup".
Step 3. Activate the Automatic Motor Adaptation (AMA)
Performing an AMA will ensure optimum performance. The AMA measures the values
from the motor model equivalent diagram.
1. Connect terminal 37 to terminal 12 (FC 302).
Start the frequency converter and activate the AMA par. 1-29.
2.
Choose between complete or reduced AMA. If an LC filter is mounted, run only the reduced
3.
AMA, or remove the LC filter during the AMA procedure.
4. Press the [OK] key. The display shows "Press [Hand on] to start".
Press the [Hand on] key. A progress bar indicates if the AMA is in progress.
5.
Stop the AMA during operation
Press the [OFF] key - the frequency converter enters into alarm mode and the display
1.
shows that the AMA was terminated by the user.
96
How to Install
MG.33.B4.02 - VLT is a registered Danfoss trademark
1. Motor Power [kW]
or Motor Power [HP]
2. Motor Voltage
3. Motor Frequency
4. Motor Current
5. Motor Nominal Speed
par. 1-20
par. 1-21
par. 1-22
par. 1-23
par. 1-24
par. 1-25
