FC 300 Design Guide

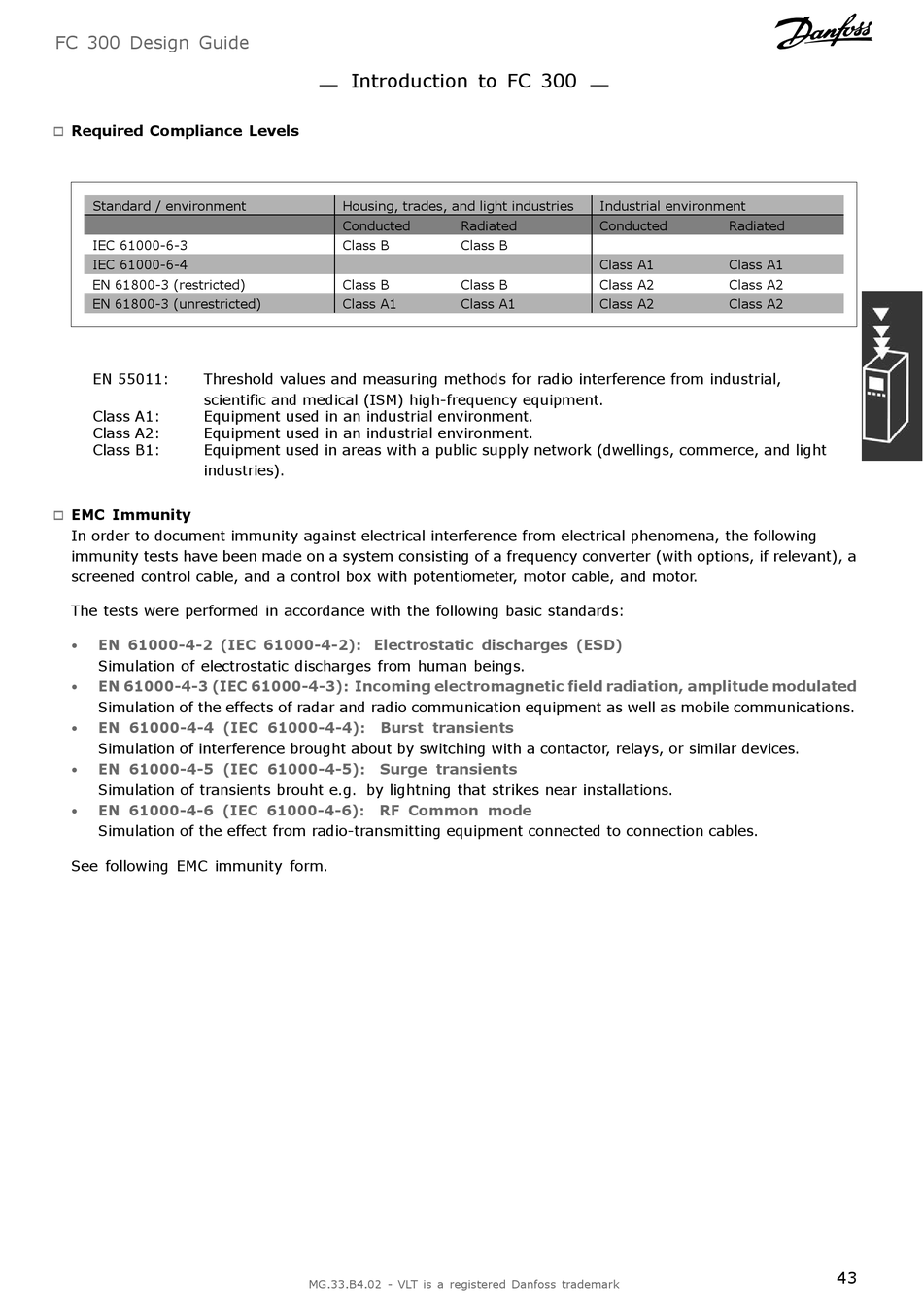

Required Compliance Levels

"
Standard / environment
IEC 61000-6-3
IEC 61000-6-4
EN 61800-3 (restricted)
EN 61800-3 (unrestricted)
EN 55011: Threshold values and measuring methods for radio interference from industrial,
scientific and medical (ISM) high-frequency equipment.
Class A1: Equipment used in an industrial environment.
Class A2: Equipment used in an industrial environment.
Class B1: Equipment used in areas with a public supply network (dwellings, commerce, and light
industries).

EMC Immunity

"
In order to document immunity against electrical interference from electrical phenomena, the following
immunity tests have been made on a system consisting of a frequency converter (with options, if relevant), a
screened control cable, and a control box with potentiometer, motor cable, and motor.
The tests were performed in accordance with the following basic standards:
EN 61000-4-2 (IEC 61000-4-2): Electrostatic discharges (ESD)
•
Simulation of electrostatic discharges from human beings.
EN 61000-4-3 (IEC 61000-4-3): Incoming electromagnetic field radiation, amplitude modulated
•
Simulation of the effects of radar and radio communication equipment as well as mobile communications.
EN 61000-4-4 (IEC 61000-4-4): Burst transients
•
Simulation of interference brought about by switching with a contactor, relays, or similar devices.
EN 61000-4-5 (IEC 61000-4-5): Surge transients
•
Simulation of transients brouht e.g. by lightning that strikes near installations.
EN 61000-4-6 (IEC 61000-4-6): RF Common mode
•
Simulation of the effect from radio-transmitting equipment connected to connection cables.
See following EMC immunity form.
Introduction to FC 300
Housing, trades, and light industries
Conducted Radiated
Class B Class B
Class B Class B
Class A1 Class A1
MG.33.B4.02 - VLT is a registered Danfoss trademark
Industrial environment
Conducted Radiated
Class A1 Class A1
Class A2 Class A2
Class A2 Class A2
