FC 300 Design Guide
All parameters are programmed in four individual
parameter Set-ups, Set-up 1 - Set-up 4. Open
loop and closed loop function can only be
changed with a stop signal applied. The Factory
Set-up cannot be modified.
Factory Set-up [0] contains the data set at Danfoss.
Can be used as a data source if the other Set-ups are
to be returned to a known state. Par. 0-51 allows
copying from one Set-up to another or to all the
other Set-ups. Set-ups 1-4 are individual Set-ups,
which can be selected individually. Multi Set-up
[9] is used by remote-selection between Set-ups.
Use digital inputs and the serial communication
port for switching between Set-ups.
Apply a stop signal when switching between Set-ups
where parameters marked as "not changeable
during operation" have different values. To make
sure that parameters marked as "not changeable
during operation" are never set differently in
two Set-ups, you should link the two Set-ups
together via par. 0-12. Parameters that are "not
changeable during operation" are marked FALSE in
the parameter lists in the section Parameter Lists.
0-11 Edit Set-up
Option:
Factory setup
*
Set-up 1
Set-up 2
Set-up 3
Set-up 4
Active Set-up
Function:
Selects Editing Set-up. Editing is done via the
active Set-up or one of the inactive Set-ups.
Selects the Set-up in which to programme (change
of data) during operation (applies both via the
control panel and via the serial communication port).
You can programme the 4 Set-ups independently
of the active Set-up (selected in par. 0-10).

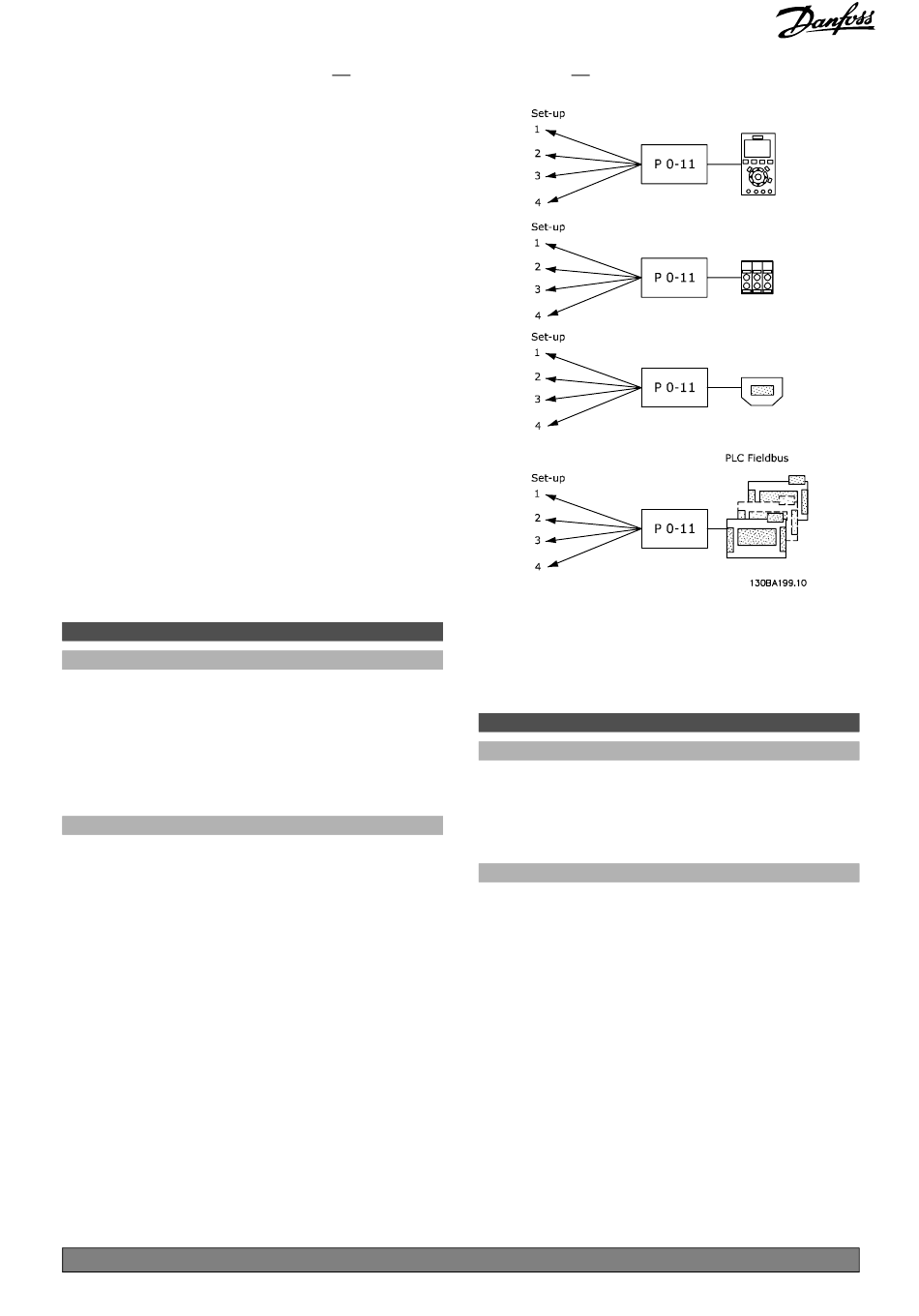

Editing of set-ups can be done from various
sources as LCP, FC RS485, FC USB, and from
up to five fieldbus places.
default setting ( )
*
How to Programme
[0]
[1]
[2]
[3]
[4]
[9]
display text [ ] value for use in communication via serial communication port
MG.33.B4.02 - VLT is a registered Danfoss trademark
Factory Set-up [0] contains default data and can be
used as a data source to return the other Set-ups
to a known state. Set-ups 1-4 are individual
Set-ups and can be used as required. They can be
programmed freely, regardless of the active Set-up.
0-12 This Set-up Linked to
Option:
*
Set-up 1
Set-up 2
Set-up 3
Set-up 4
Function:
Apply a stop signal when switching between set-ups
where parameters marked as "not changeable
during operation" have different values. To make
sure that parameters marked as "not change
able during operation" are never set differently in
two set-ups, link the two set-ups together. The
frequency converter will automatically synchonize
the parameter values. Parameters that are not
changeable during operation are marked FALSE
in the section Parameter Lists.
The link set-up feature is used by multiset-up in par.
0-10. Multiset-up is used to shift from one setup to
another during operation (i.e. when the motor is
running). Some parameters must have same value
during the transition - these are the parameters
[1]
[2]
[3]
[4]
