Introduction to FC 300

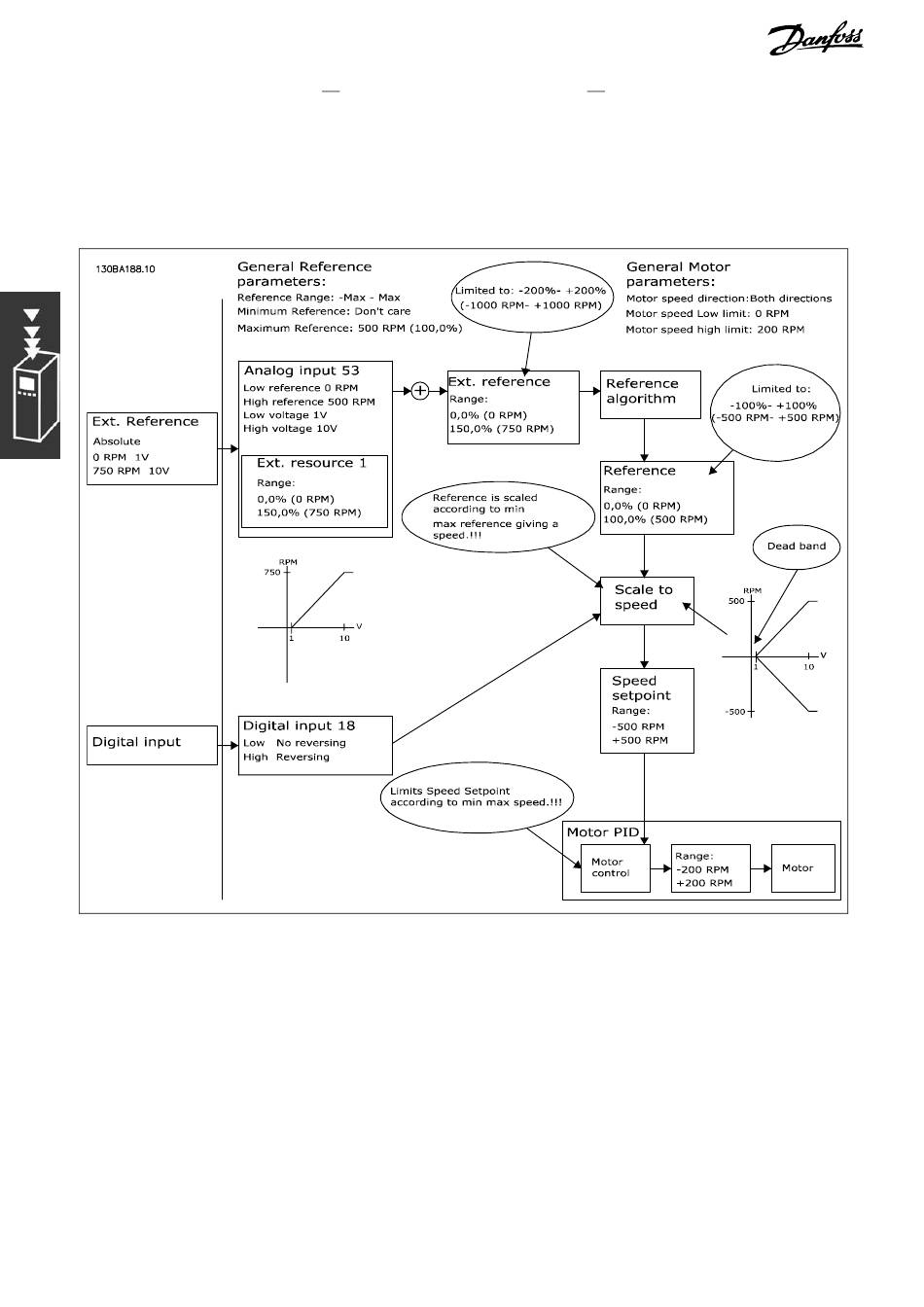

Use Case 2: Positive Reference with Dead band, Digital input to trigger reverse. Clamping rules.
This Use Case shows how Reference input with limits outside -Max – +Max limits clamps to
the inputs low and high limits before addition to External reference. And how the External
reference is clamped to -Max – +Max by the Reference algorithm.
