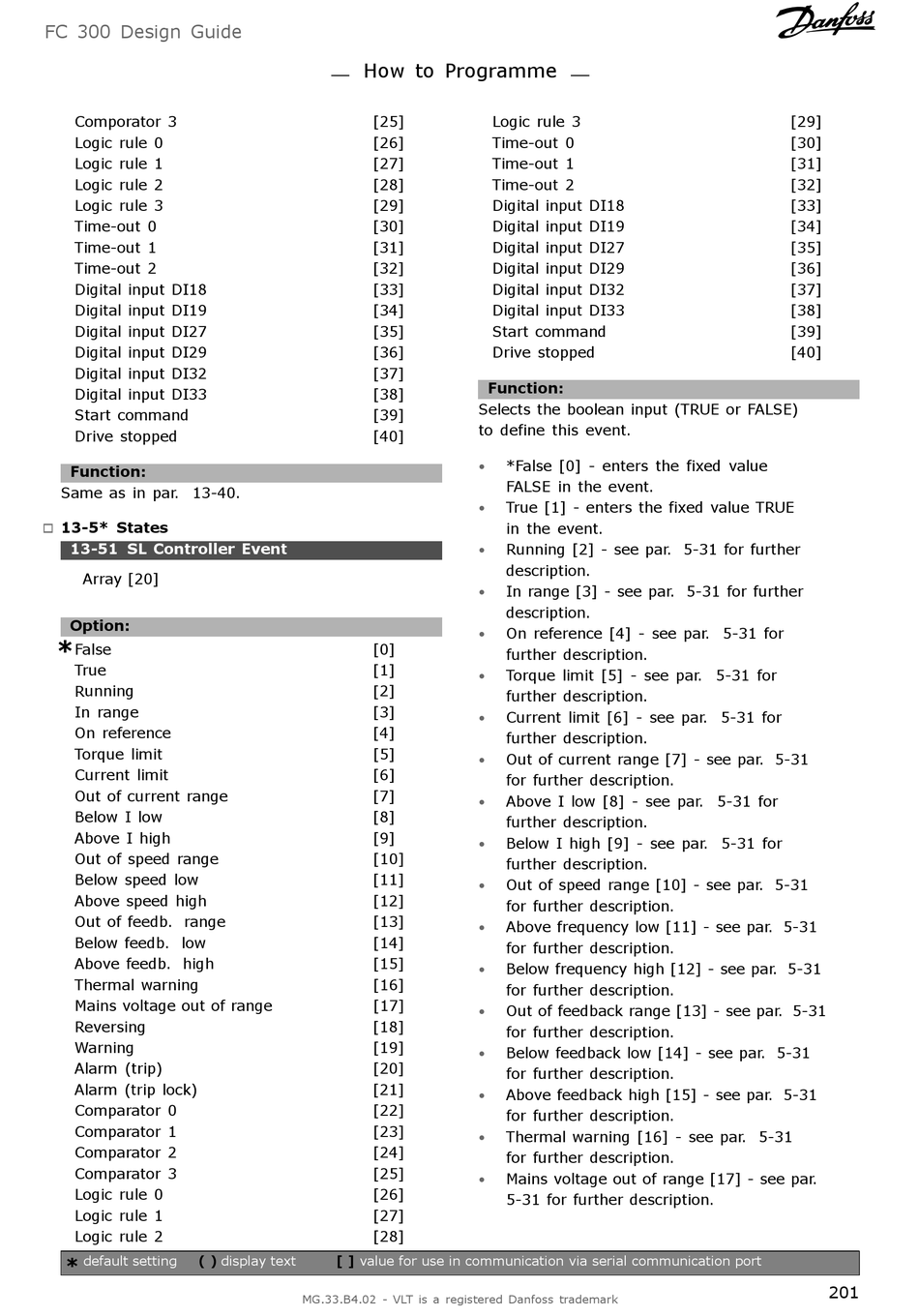

FC 300 Design Guide
Comporator 3
Logic rule 0
Logic rule 1
Logic rule 2
Logic rule 3
Time-out 0
Time-out 1
Time-out 2
Digital input DI18
Digital input DI19
Digital input DI27
Digital input DI29
Digital input DI32
Digital input DI33
Start command
Drive stopped
Function:
Same as in par. 13-40.
13-5* States
"
13-51 SL Controller Event
Array [20]
Option:
*
False
True
Running
In range
On reference
Torque limit
Current limit
Out of current range
Below I low
Above I high
Out of speed range
Below speed low
Above speed high
Out of feedb. range
Below feedb. low
Above feedb. high
Thermal warning
Mains voltage out of range
Reversing
Warning
Alarm (trip)
Alarm (trip lock)
Comparator 0
Comparator 1
Comparator 2
Comparator 3
Logic rule 0
Logic rule 1
Logic rule 2
default setting ( )
*
How to Programme
[25]
[26]
[27]
[28]
[29]
[30]
[31]
[32]
[33]
[34]
[35]
[36]
[37]
[38]
[39]
[40]
[0]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
display text [ ] value for use in communication via serial communication port
MG.33.B4.02 - VLT is a registered Danfoss trademark
Logic rule 3
Time-out 0
Time-out 1
Time-out 2
Digital input DI18
Digital input DI19
Digital input DI27
Digital input DI29
Digital input DI32
Digital input DI33
Start command
Drive stopped
Function:
Selects the boolean input (TRUE or FALSE)
to define this event.
*False [0] - enters the fixed value
•
FALSE in the event.
• True [1] - enters the fixed value TRUE
in the event.
Running [2] - see par. 5-31 for further
•
description.
In range [3] - see par. 5-31 for further
•
description.
On reference [4] - see par. 5-31 for
•
further description.
Torque limit [5] - see par. 5-31 for
•
further description.
Current limit [6] - see par. 5-31 for
•
further description.
Out of current range [7] - see par. 5-31
•
for further description.
Above I low [8] - see par. 5-31 for
•
further description.
Below I high [9] - see par. 5-31 for
•
further description.
• Out of speed range [10] - see par. 5-31
for further description.
Above frequency low [11] - see par. 5-31
•
for further description.
Below frequency high [12] - see par. 5-31
•
for further description.
Out of feedback range [13] - see par. 5-31
•
for further description.
• Below feedback low [14] - see par. 5-31
for further description.
Above feedback high [15] - see par. 5-31
•
for further description.
Thermal warning [16] - see par. 5-31
•
for further description.
Mains voltage out of range [17] - see par.
•
5-31 for further description.
[29]
[30]
[31]
[32]
[33]
[34]
[35]
[36]
[37]
[38]
[39]
[40]
201
