FC 300 Design Guide
NB!:
If a short circuit in the brake IGBT occurs, prevent power dissipation in the brake resistor
by using a mains switch or contactor to disconnect the mains for the frequency converter.
Only the frequency converter shall control the contactor.

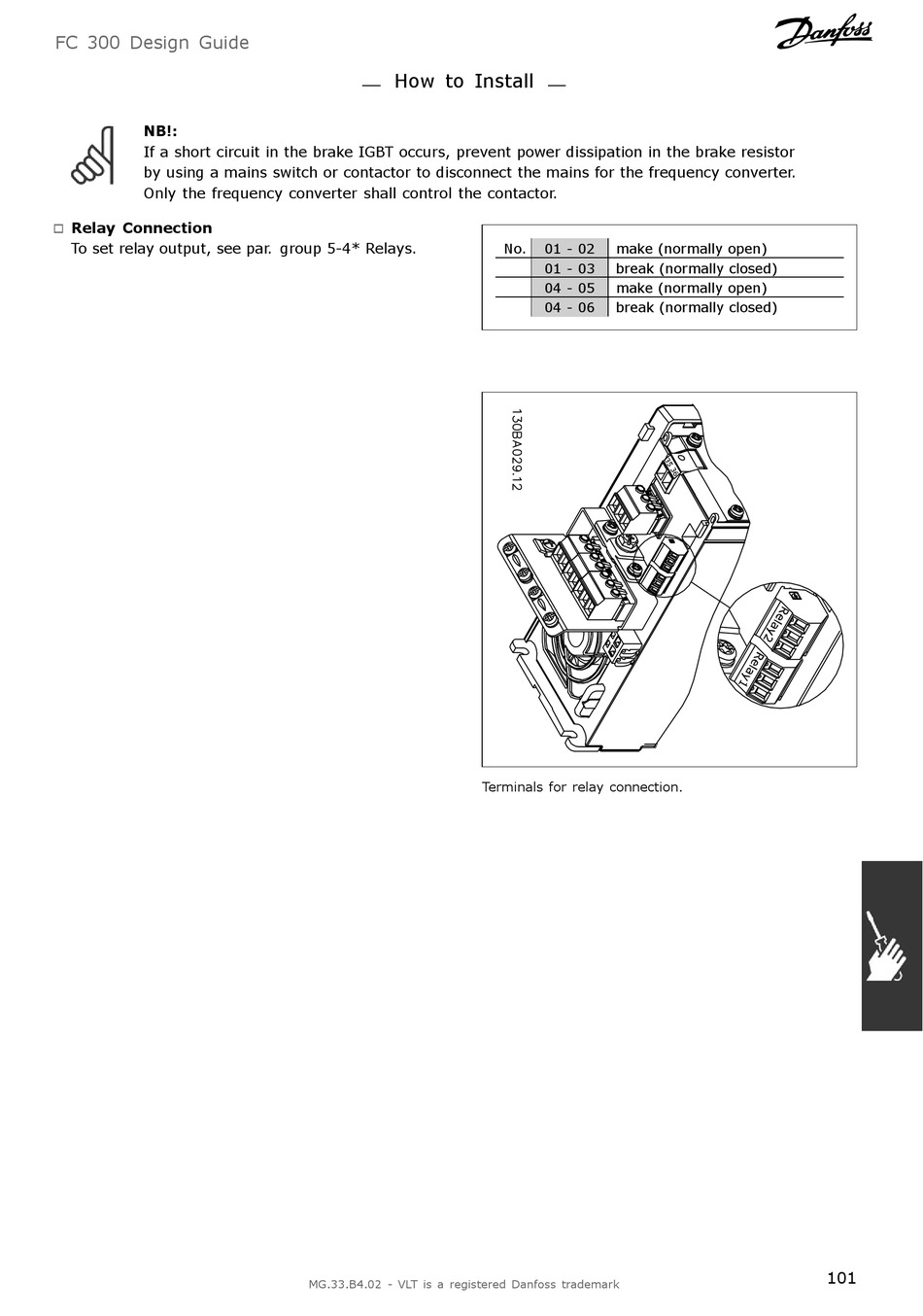

Relay Connection
"
To set relay output, see par. group 5-4* Relays.
How to Install
Terminals for relay connection.
MG.33.B4.02 - VLT is a registered Danfoss trademark
No.
01 - 02
make (normally open)
01 - 03
break (normally closed)
04 - 05
make (normally open)
04 - 06
break (normally closed)
101
