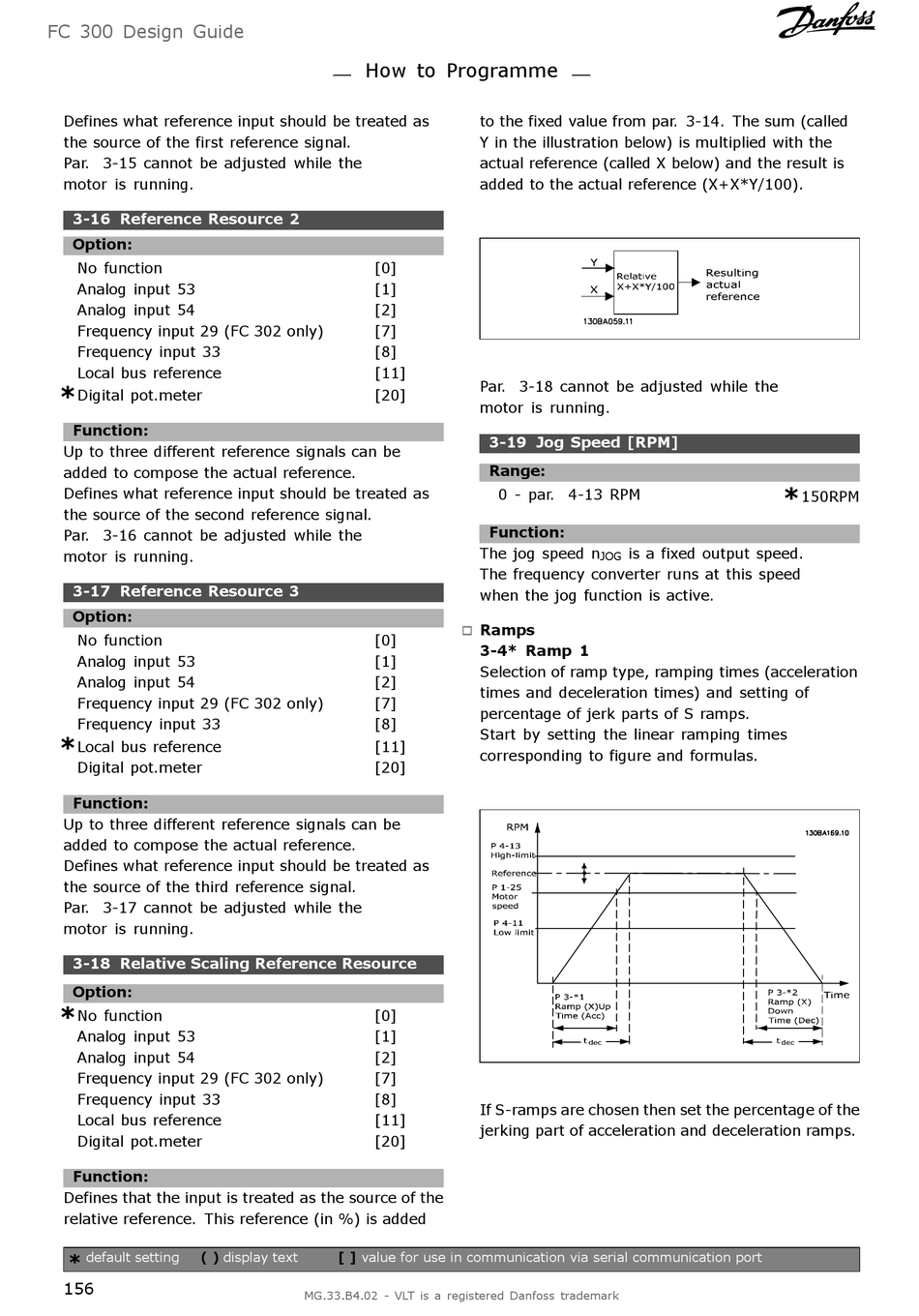

Danfoss VLT AutomationDrive FC 300 Design Manual page 156

FC 300 Design Guide
Defines what reference input should be treated as
the source of the first reference signal.
Par. 3-15 cannot be adjusted while the
motor is running.
3-16 Reference Resource 2
Option:
No function
Analog input 53
Analog input 54
Frequency input 29 (FC 302 only)
Frequency input 33
Local bus reference
*
Digital pot.meter
Function:
Up to three different reference signals can be
added to compose the actual reference.
Defines what reference input should be treated as
the source of the second reference signal.
Par. 3-16 cannot be adjusted while the
motor is running.
3-17 Reference Resource 3
Option:
No function
Analog input 53
Analog input 54
Frequency input 29 (FC 302 only)
Frequency input 33
*
Local bus reference
Digital pot.meter
Function:
Up to three different reference signals can be
added to compose the actual reference.
Defines what reference input should be treated as
the source of the third reference signal.
Par. 3-17 cannot be adjusted while the
motor is running.
3-18 Relative Scaling Reference Resource
Option:
*
No function
Analog input 53
Analog input 54
Frequency input 29 (FC 302 only)
Frequency input 33
Local bus reference
Digital pot.meter
Function:
Defines that the input is treated as the source of the
relative reference. This reference (in %) is added
default setting ( )
*
156
How to Programme
[0]
[1]
[2]
[7]
[8]
[11]
[20]
[0]
[1]
[2]
[7]
[8]
[11]
[20]
[0]
[1]
[2]
[7]
[8]
[11]
[20]
display text [ ] value for use in communication via serial communication port
MG.33.B4.02 - VLT is a registered Danfoss trademark
to the fixed value from par. 3-14. The sum (called
Y in the illustration below) is multiplied with the
actual reference (called X below) and the result is
added to the actual reference (X+X*Y/100).
Par. 3-18 cannot be adjusted while the
motor is running.
3-19 Jog Speed [RPM]
Range:
0 - par. 4-13 RPM
Function:
The jog speed n is a fixed output speed.
JOG
The frequency converter runs at this speed
when the jog function is active.
Ramps
"
3-4* Ramp 1
Selection of ramp type, ramping times (acceleration
times and deceleration times) and setting of
percentage of jerk parts of S ramps.
Start by setting the linear ramping times
corresponding to figure and formulas.
If S-ramps are chosen then set the percentage of the
jerking part of acceleration and deceleration ramps.
*
150RPM
