FC 300 Design Guide
IP 21/IP 4X/ TYPE 1 Enclosure Kit
The IP 21/IP 4X/ TYPE 1 enclosure kit consists
of a sheet metal part and a plastic part. The
sheet metal part serves as bonding plate for
conduits and is attached to the bottom of the
heat sink. The plastic part serves as protection
from live parts on power plugs.
Mechanical
dimensions
Height
Width
Bottom depth
from back plate
to front
Top depth from
back plate
to front (w/o
option)
Top depth from
back plate to
front (w/ option)
For installation of IP 21/IP 4X/ TYPE 1 top and bottom
- see the Option Guide enclosed with the FC 300.
Drill holes in accordance with the measurements given.
1.
2. You must provide screws suitable for the surface on which you want to mount
the FC 300. Retighten all four screws.
FC 300 IP20 allows side-by-side installation. Because of the need for cooling, there must be a
minimum of 100 mm free air passage above and below the FC 300.
How to Install
Frame Frame
size A2 size A3
A 375 mm 375 mm
B 90 mm 130 mm
C 202 mm 202 mm
D 207 mm 207 mm
D 222 mm 222 mm
MG.33.B4.02 - VLT is a registered Danfoss trademark

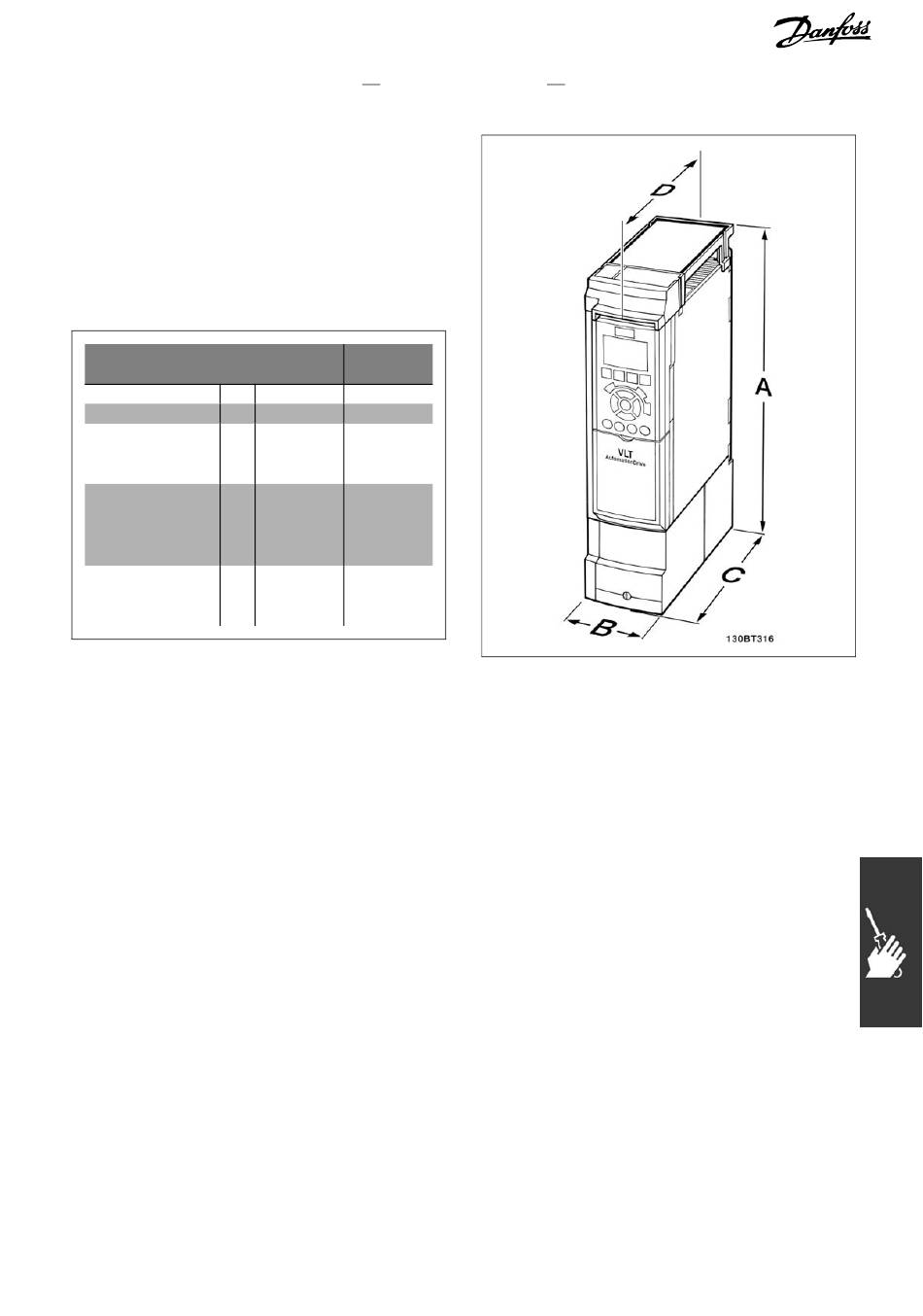

Mechanical dimensions of the IP 21/IP 4x/
TYPE 1 enclosure kit
