FC 300 Design Guide

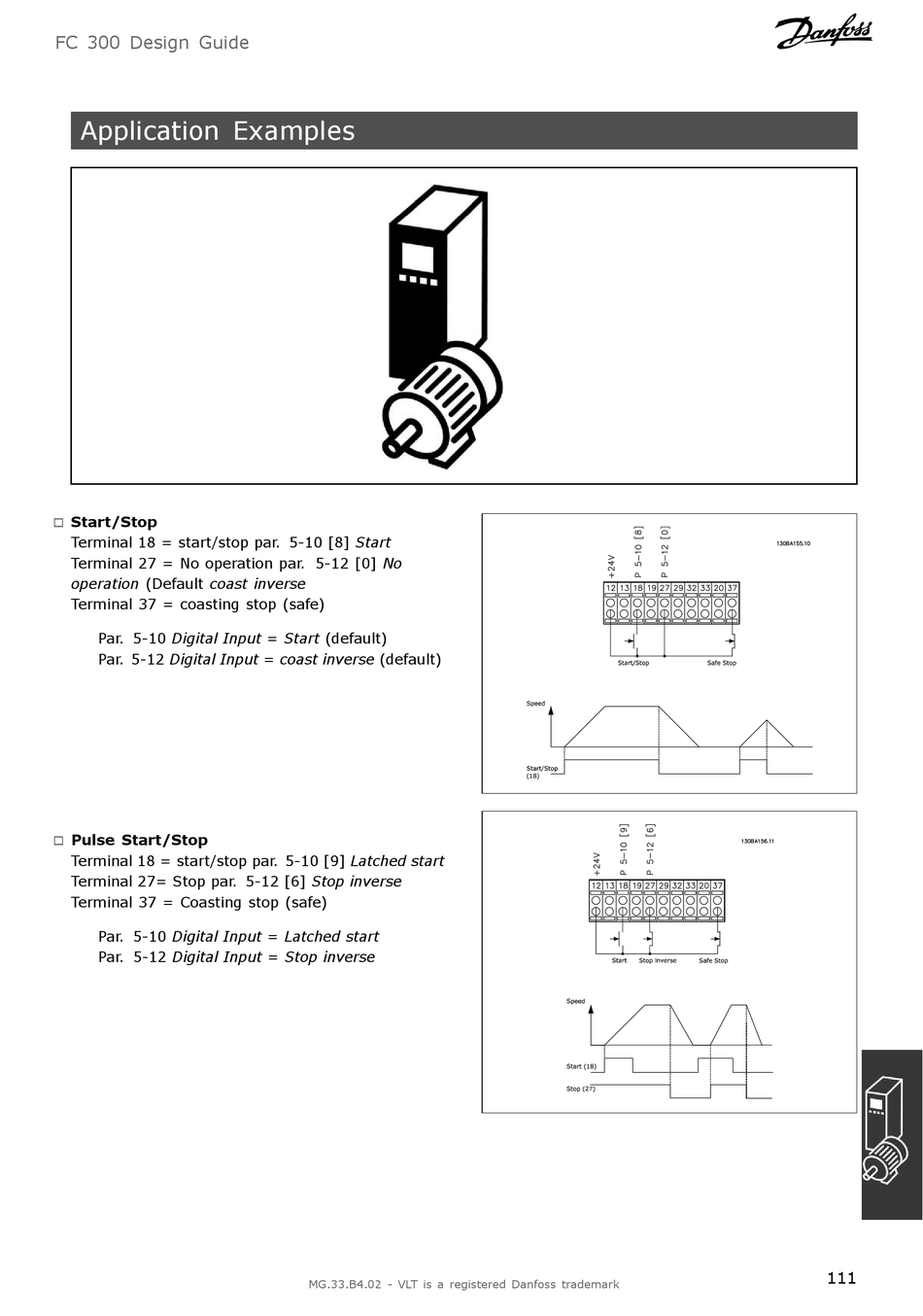

Application Examples
Start/Stop
"
Terminal 18 = start/stop par. 5-10 [8] Start
Terminal 27 = No operation par. 5-12 [0] No
operation (Default coast inverse
Terminal 37 = coasting stop (safe)
Par. 5-10 Digital Input = Start (default)
Par. 5-12 Digital Input = coast inverse (default)
Pulse Start/Stop
"
Terminal 18 = start/stop par. 5-10 [9] Latched start
Terminal 27= Stop par. 5-12 [6] Stop inverse
Terminal 37 = Coasting stop (safe)
Par. 5-10 Digital Input = Latched start
Par. 5-12 Digital Input = Stop inverse
