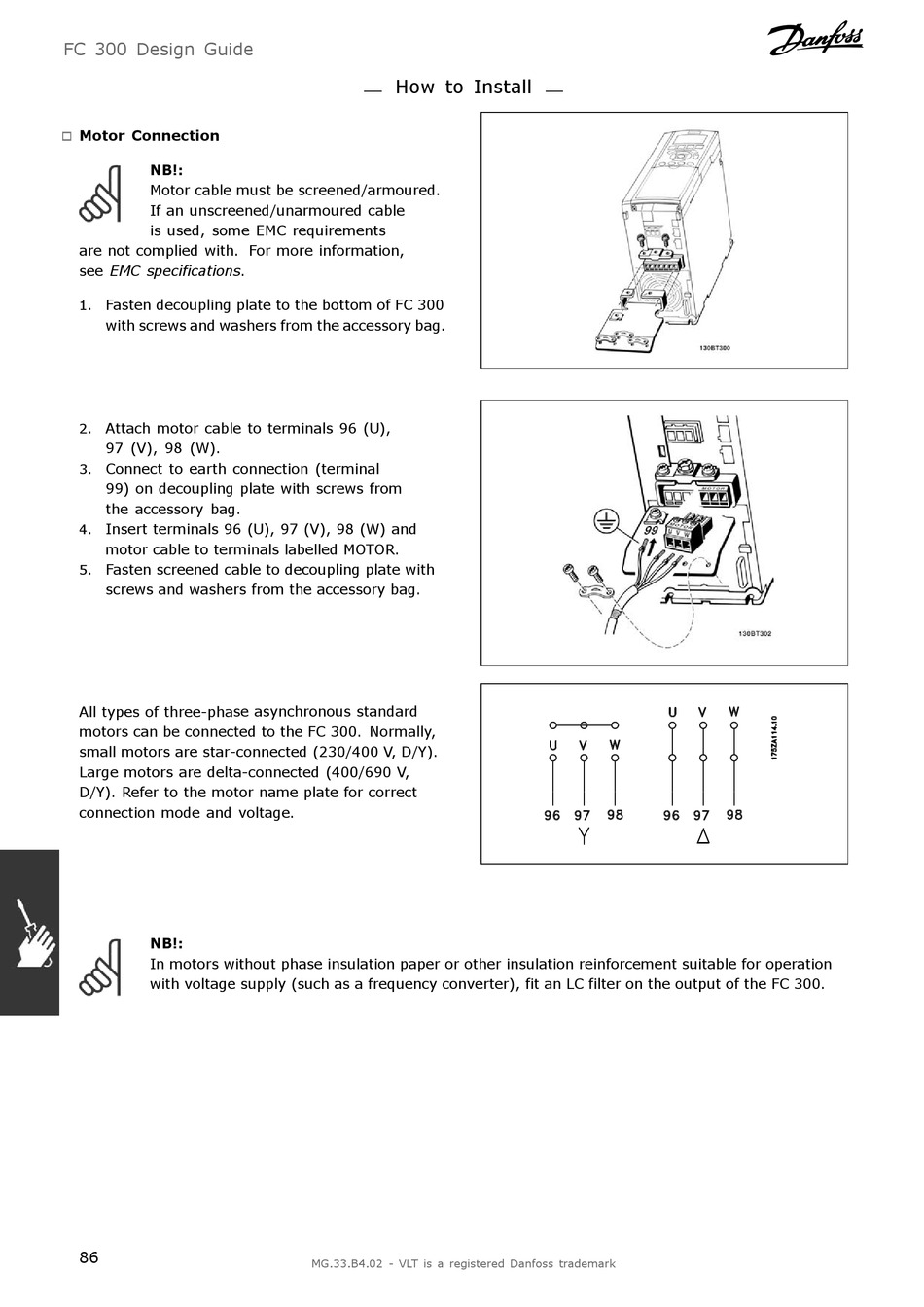

Motor Connection

"
NB!:
Motor cable must be screened/armoured.
If an unscreened/unarmoured cable
is used, some EMC requirements
are not complied with. For more information,
see EMC specifications.
Fasten decoupling plate to the bottom of FC 300
1.
with screws and washers from the accessory bag.
Attach motor cable to terminals 96 (U),
2.
97 (V), 98 (W).
Connect to earth connection (terminal
3.
99) on decoupling plate with screws from
the accessory bag.
4. Insert terminals 96 (U), 97 (V), 98 (W) and
motor cable to terminals labelled MOTOR.
Fasten screened cable to decoupling plate with
5.
screws and washers from the accessory bag.
All types of three-phase asynchronous standard
motors can be connected to the FC 300. Normally,
small motors are star-connected (230/400 V, D/Y).
Large motors are delta-connected (400/690 V,
D/Y). Refer to the motor name plate for correct
connection mode and voltage.
NB!:
In motors without phase insulation paper or other insulation reinforcement suitable for operation
with voltage supply (such as a frequency converter), fit an LC filter on the output of the FC 300.
