FC 300 Design Guide
How to Install

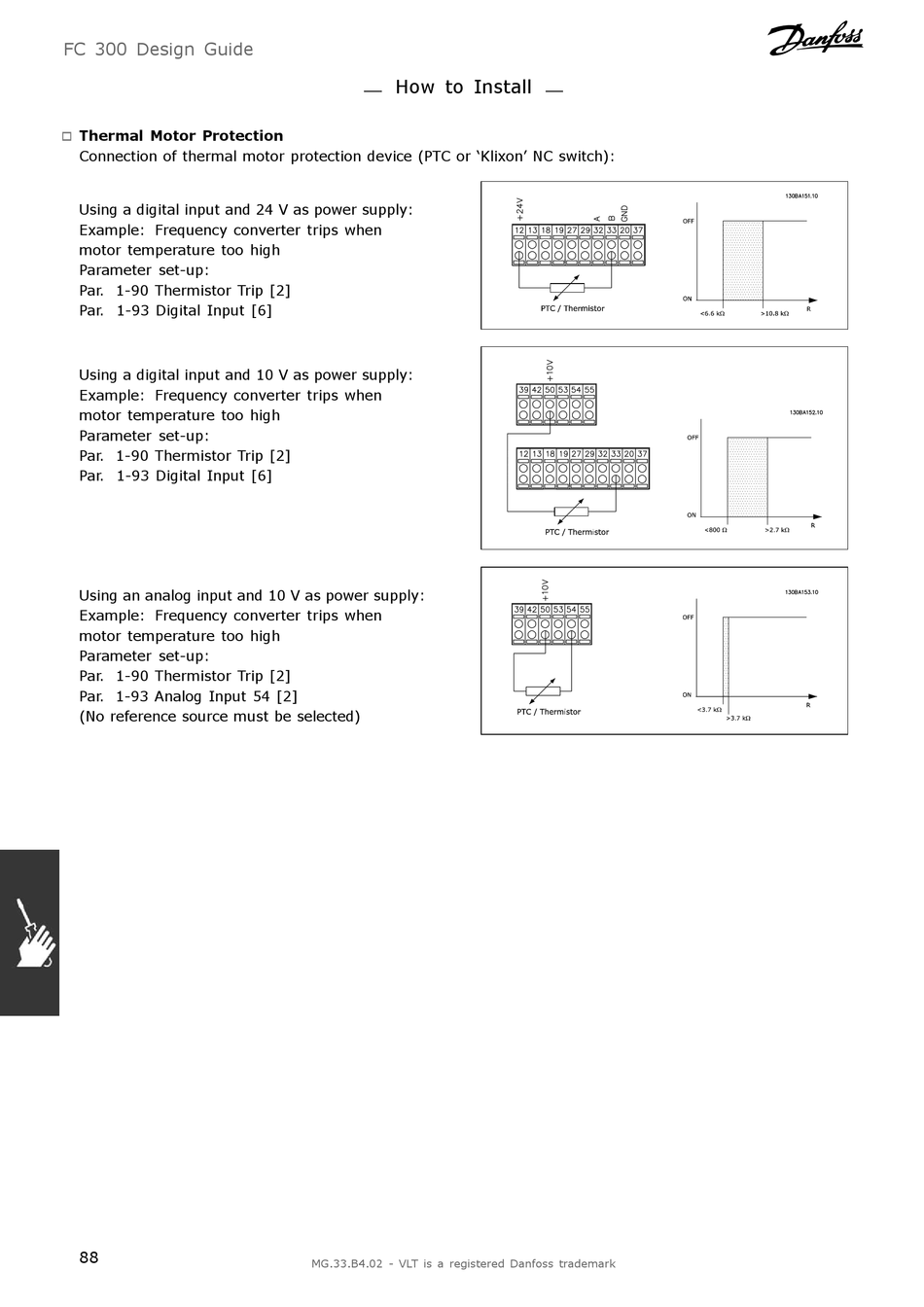

Thermal Motor Protection

"
Connection of thermal motor protection device (PTC or 'Klixon' NC switch):
Using a digital input and 24 V as power supply:
Example: Frequency converter trips when
motor temperature too high
Parameter set-up:
Par. 1-90 Thermistor Trip [2]
Par. 1-93 Digital Input [6]
Using a digital input and 10 V as power supply:
Example: Frequency converter trips when
motor temperature too high
Parameter set-up:
Par. 1-90 Thermistor Trip [2]
Par. 1-93 Digital Input [6]
Using an analog input and 10 V as power supply:
Example: Frequency converter trips when
motor temperature too high
Parameter set-up:
Par. 1-90 Thermistor Trip [2]
Par. 1-93 Analog Input 54 [2]
(No reference source must be selected)
