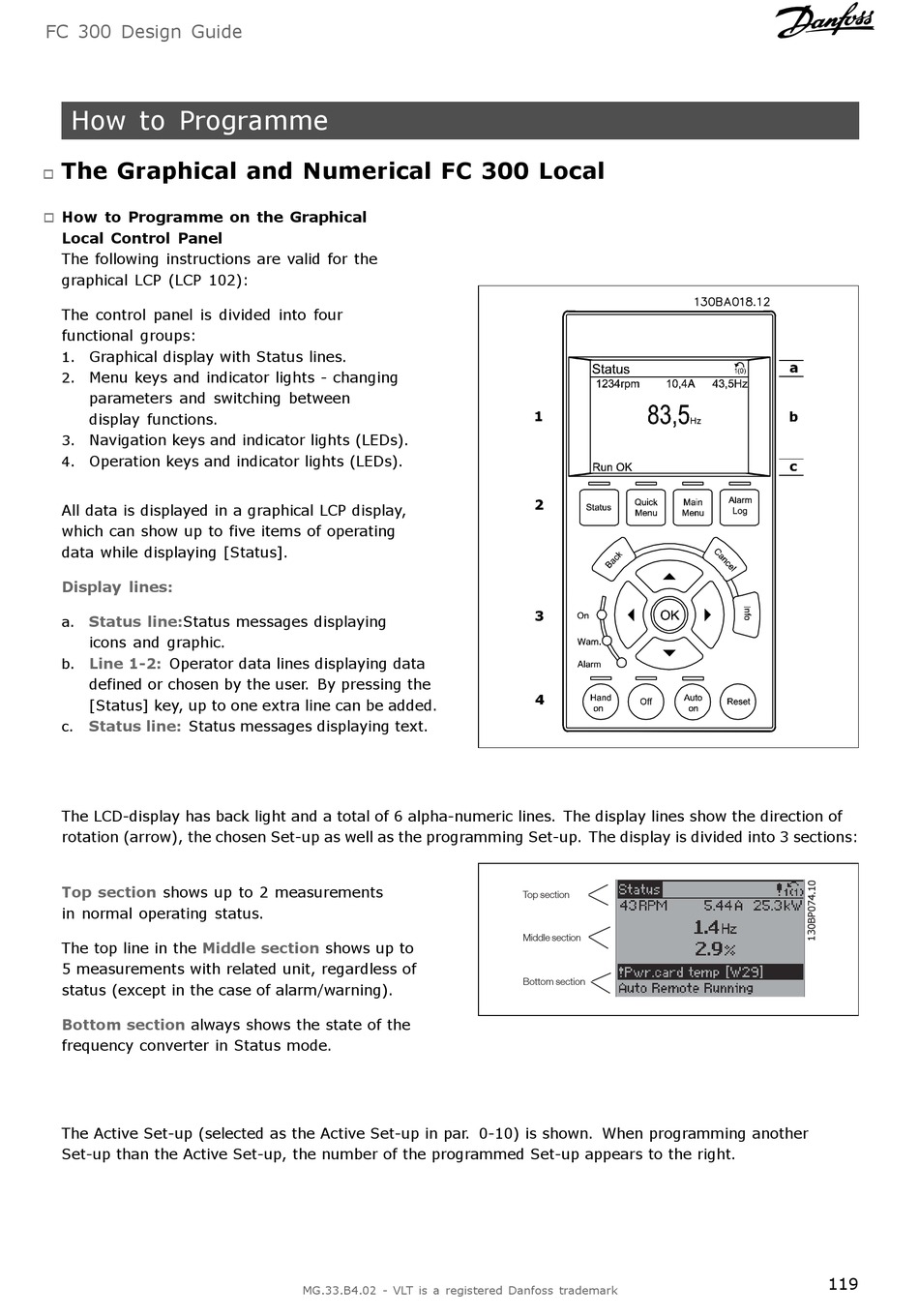

How to Programme

The Graphical and Numerical FC 300 Local

"
How to Programme on the Graphical
"
Local Control Panel
The following instructions are valid for the
graphical LCP (LCP 102):
The control panel is divided into four
functional groups:
1. Graphical display with Status lines.
Menu keys and indicator lights - changing
2.
parameters and switching between
display functions.
Navigation keys and indicator lights (LEDs).
3.
Operation keys and indicator lights (LEDs).
4.
All data is displayed in a graphical LCP display,
which can show up to five items of operating
data while displaying [Status].
Display lines:
Status line:Status messages displaying
a.
icons and graphic.
b. Line 1-2: Operator data lines displaying data
defined or chosen by the user. By pressing the
[Status] key, up to one extra line can be added.
c. Status line: Status messages displaying text.
The LCD-display has back light and a total of 6 alpha-numeric lines. The display lines show the direction of
rotation (arrow), the chosen Set-up as well as the programming Set-up. The display is divided into 3 sections:
Top section shows up to 2 measurements
in normal operating status.
The top line in the Middle section
5 measurements with related unit, regardless of
status (except in the case of alarm/warning).
Bottom section always shows the state of the
frequency converter in Status mode.
The Active Set-up (selected as the Active Set-up in par. 0-10) is shown. When programming another
Set-up than the Active Set-up, the number of the programmed Set-up appears to the right.
shows up to
