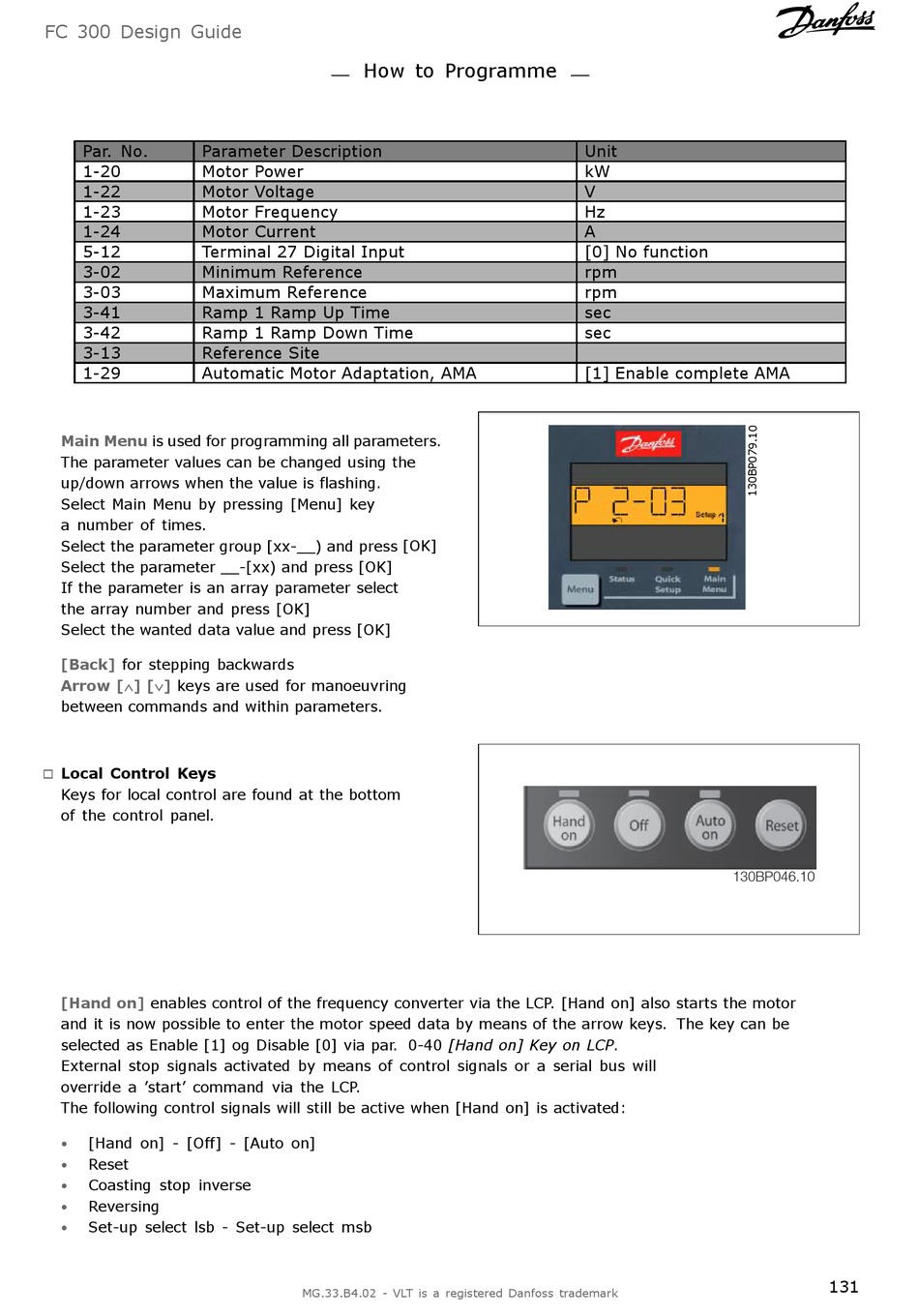

FC 300 Design Guide
Par. No. Parameter Description
1-20 Motor Power
1-22 Motor Voltage
1-23 Motor Frequency
1-24 Motor Current
5-12 Terminal 27 Digital Input
3-02 Minimum Reference
3-03 Maximum Reference
3-41 Ramp 1 Ramp Up Time
3-42 Ramp 1 Ramp Down Time
3-13 Reference Site
1-29 Automatic Motor Adaptation, AMA
Main Menu is used for programming all parameters.
The parameter values can be changed using the
up/down arrows when the value is flashing.
Select Main Menu by pressing [Menu] key
a number of times.
Select the parameter group [xx-__) and press [OK]
Select the parameter __-[xx) and press [OK]
If the parameter is an array parameter select
the array number and press [OK]
Select the wanted data value and press [OK]
[Back] for stepping backwards
Arrow [∧] [∨] keys are used for manoeuvring
between commands and within parameters.

Local Control Keys

"
Keys for local control are found at the bottom
of the control panel.
[Hand on] enables control of the frequency converter via the LCP. [Hand on] also starts the motor
and it is now possible to enter the motor speed data by means of the arrow keys. The key can be
selected as Enable [1] og Disable [0] via par. 0-40 [Hand on] Key on LCP.
External stop signals activated by means of control signals or a serial bus will
override a 'start' command via the LCP.
The following control signals will still be active when [Hand on] is activated:
[Hand on] - [Off] - [Auto on]
•
• Reset
Coasting stop inverse
•
Reversing
•
Set-up select lsb - Set-up select msb
•
How to Programme
MG.33.B4.02 - VLT is a registered Danfoss trademark
Unit
kW
V
Hz
A
[0] No function
rpm
rpm
sec
sec
[1] Enable complete AMA
130BP046.10
131
