Electrical Installation, Control Cables

"

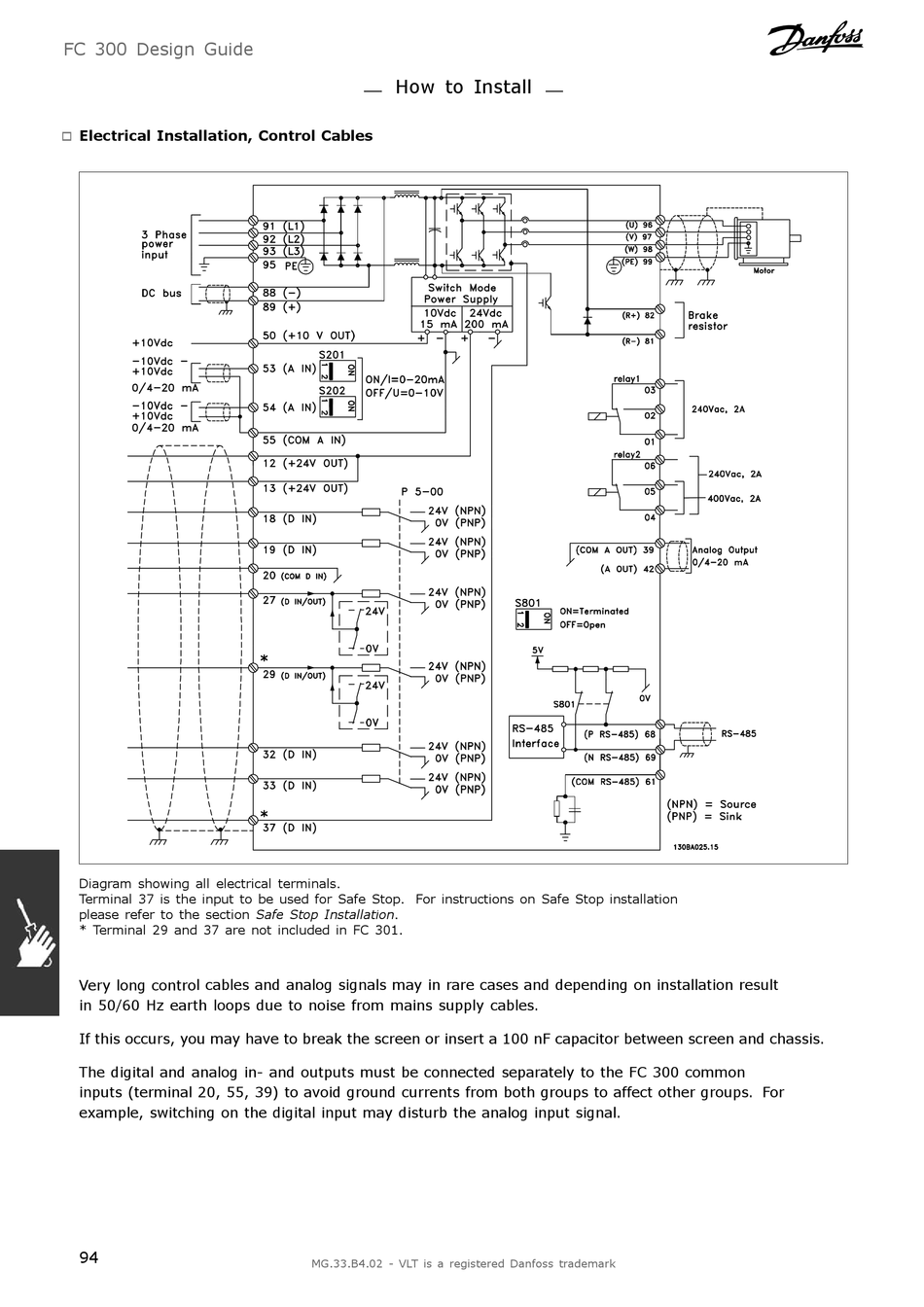

Diagram showing all electrical terminals.
Terminal 37 is the input to be used for Safe Stop. For instructions on Safe Stop installation
please refer to the section Safe Stop Installation.
* Terminal 29 and 37 are not included in FC 301.
Very long control cables and analog signals may in rare cases and depending on installation result
in 50/60 Hz earth loops due to noise from mains supply cables.
If this occurs, you may have to break the screen or insert a 100 nF capacitor between screen and chassis.
The digital and analog in- and outputs must be connected separately to the FC 300 common
inputs (terminal 20, 55, 39) to avoid ground currents from both groups to affect other groups. For
example, switching on the digital input may disturb the analog input signal.
