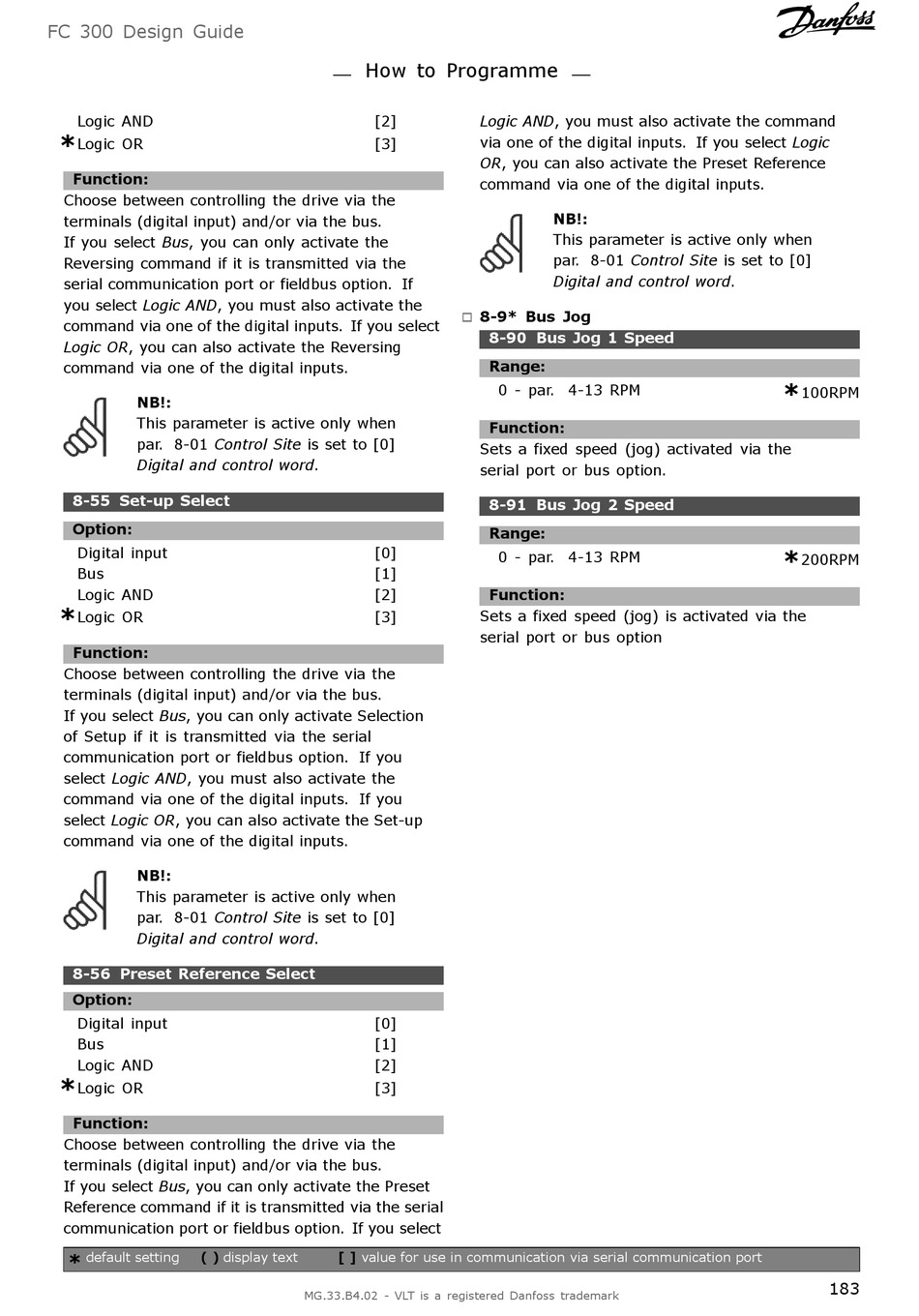

Danfoss VLT AutomationDrive FC 300 Design Manual page 183

FC 300 Design Guide
Logic AND
*
Logic OR
Function:
Choose between controlling the drive via the
terminals (digital input) and/or via the bus.
If you select Bus, you can only activate the
Reversing command if it is transmitted via the
serial communication port or fieldbus option. If
you select Logic AND, you must also activate the
command via one of the digital inputs. If you select
Logic OR, you can also activate the Reversing
command via one of the digital inputs.
NB!:
This parameter is active only when
par. 8-01 Control Site is set to [0]
Digital and control word.
8-55 Set-up Select
Option:
Digital input
Bus
Logic AND
*
Logic OR
Function:
Choose between controlling the drive via the
terminals (digital input) and/or via the bus.
If you select Bus, you can only activate Selection
of Setup if it is transmitted via the serial
communication port or fieldbus option. If you
select Logic AND, you must also activate the
command via one of the digital inputs. If you
select Logic OR, you can also activate the Set-up
command via one of the digital inputs.
NB!:
This parameter is active only when
par. 8-01 Control Site is set to [0]
Digital and control word.
8-56 Preset Reference Select
Option:
Digital input
Bus
Logic AND
*
Logic OR
Function:
Choose between controlling the drive via the
terminals (digital input) and/or via the bus.
If you select Bus, you can only activate the Preset
Reference command if it is transmitted via the serial
communication port or fieldbus option. If you select
default setting ( )
*
How to Programme
[2]
[3]
[0]
[1]
[2]
[3]
[0]
[1]
[2]
[3]
display text [ ] value for use in communication via serial communication port
MG.33.B4.02 - VLT is a registered Danfoss trademark
Logic AND, you must also activate the command
via one of the digital inputs. If you select Logic
OR, you can also activate the Preset Reference
command via one of the digital inputs.
NB!:
This parameter is active only when
par. 8-01 Control Site is set to [0]
Digital and control word.
8-9* Bus Jog
"
8-90 Bus Jog 1 Speed
Range:
0 - par. 4-13 RPM
Function:
Sets a fixed speed (jog) activated via the
serial port or bus option.
8-91 Bus Jog 2 Speed
Range:
0 - par. 4-13 RPM
Function:
Sets a fixed speed (jog) is activated via the
serial port or bus option
*
100RPM
*
200RPM
