FC 300 Design Guide
In order to avoid potential equalizing currents in the screen, earth the cable screen via
terminal 61, which is connected to the frame via an RC-link.
Bus termination
The RS485 bus must be terminated by a resistor network at both ends. For this purpose,
set switch S801 on the control card for "ON".
For more information, see the paragraph Switches S201, S202, and S801.

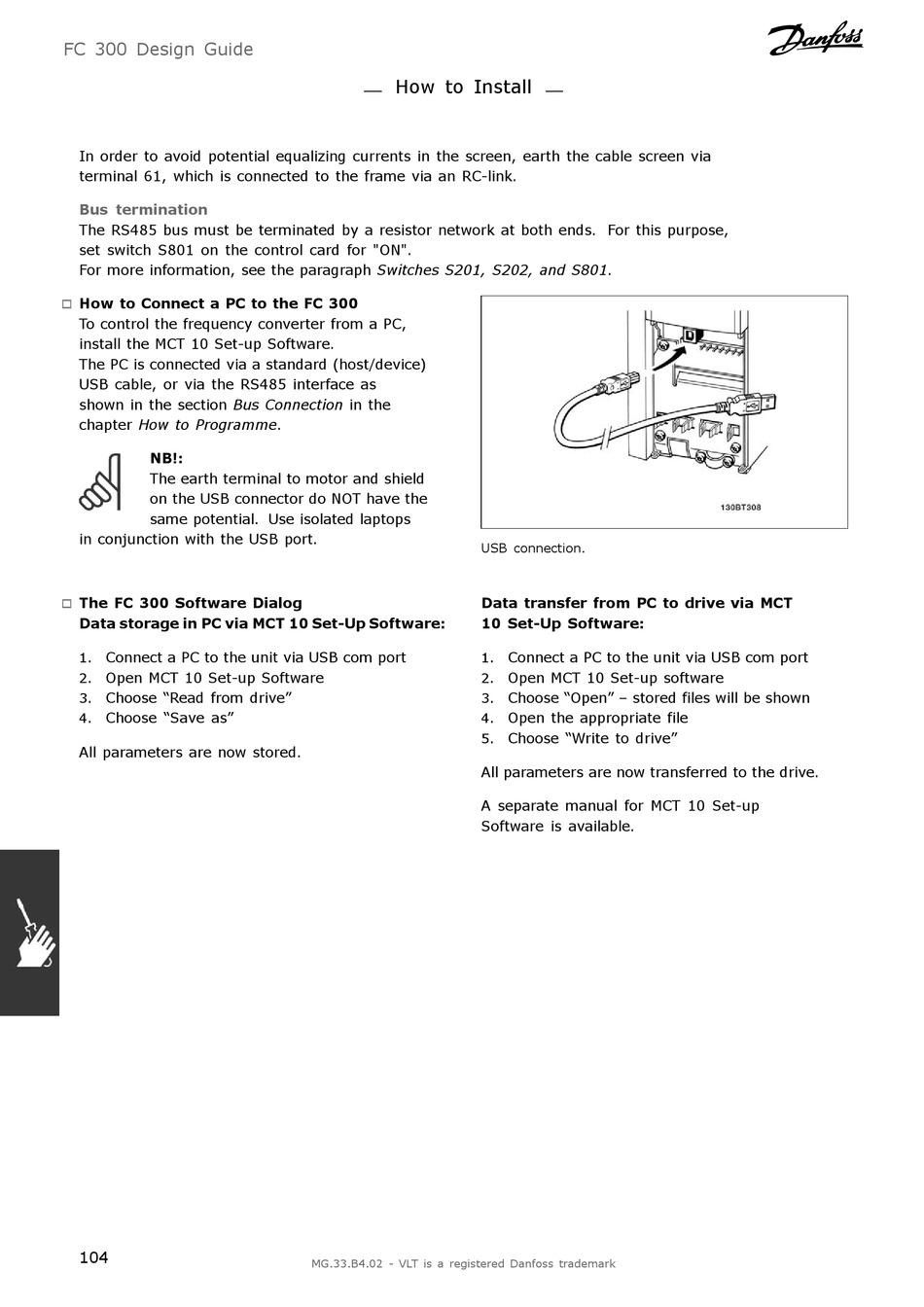

How to Connect a PC to the FC 300

"
To control the frequency converter from a PC,
install the MCT 10 Set-up Software.
The PC is connected via a standard (host/device)
USB cable, or via the RS485 interface as
shown in the section Bus Connection in the
chapter How to Programme.
NB!:
The earth terminal to motor and shield
on the USB connector do NOT have the
same potential. Use isolated laptops
in conjunction with the USB port.

The FC 300 Software Dialog

"
Data storage in PC via MCT 10 Set-Up Software:
Connect a PC to the unit via USB com port
1.
Open MCT 10 Set-up Software
2.
Choose "Read from drive"
3.
Choose "Save as"
4.
All parameters are now stored.
104
How to Install
USB connection.
Data transfer from PC to drive via MCT
10 Set-Up Software:
1.
2.
3.
4.
5.
All parameters are now transferred to the drive.
A separate manual for MCT 10 Set-up
Software is available.
MG.33.B4.02 - VLT is a registered Danfoss trademark
Connect a PC to the unit via USB com port
Open MCT 10 Set-up software
Choose "Open" – stored files will be shown
Open the appropriate file
Choose "Write to drive"
