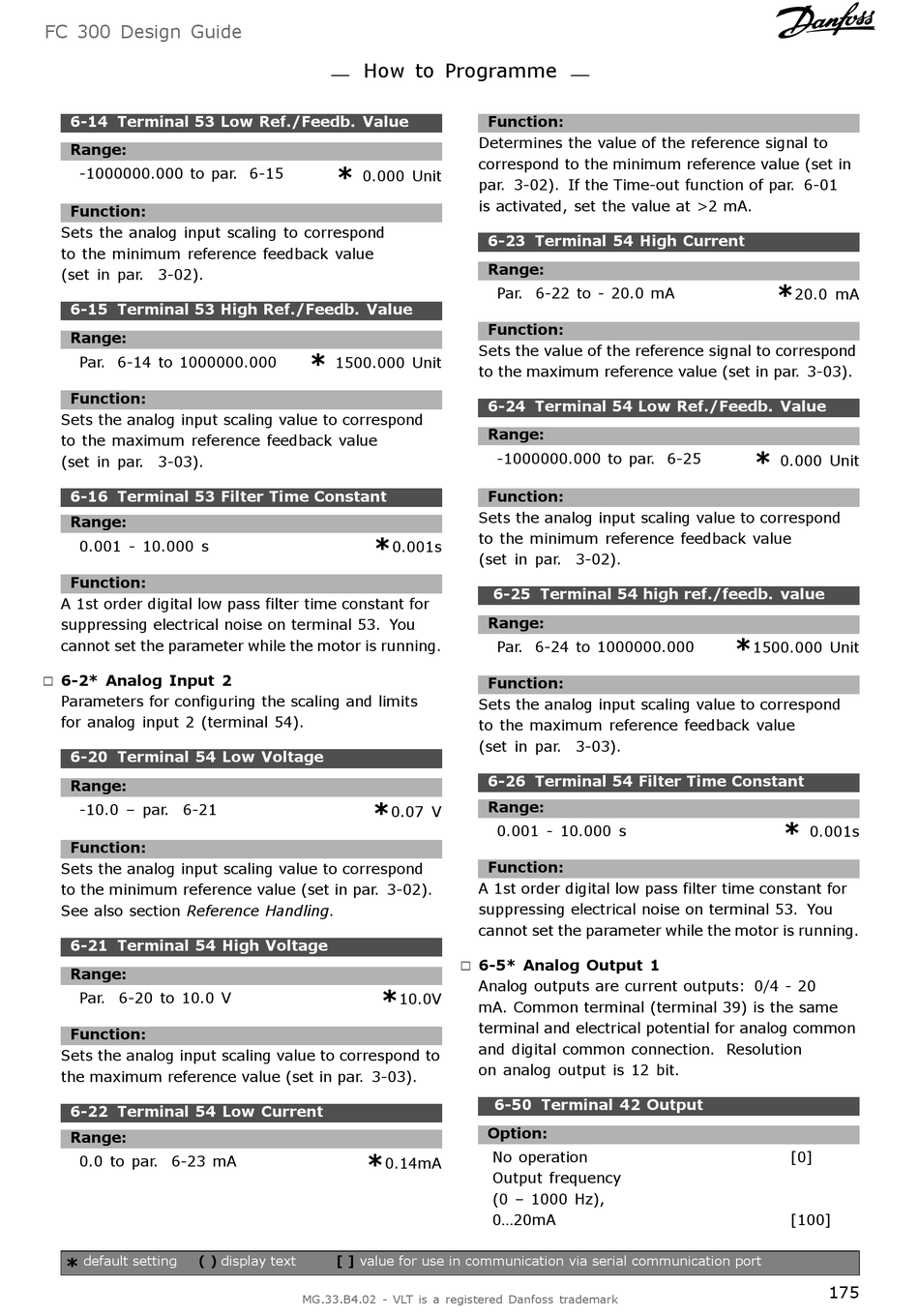

Danfoss VLT AutomationDrive FC 300 Design Manual page 175

FC 300 Design Guide
6-14 Terminal 53 Low Ref./Feedb. Value
Range:
-1000000.000 to par. 6-15
Function:
Sets the analog input scaling to correspond
to the minimum reference feedback value
(set in par. 3-02).
6-15 Terminal 53 High Ref./Feedb. Value
Range:
Par. 6-14 to 1000000.000
Function:
Sets the analog input scaling value to correspond
to the maximum reference feedback value
(set in par. 3-03).
6-16 Terminal 53 Filter Time Constant
Range:
0.001 - 10.000 s
Function:
A 1st order digital low pass filter time constant for
suppressing electrical noise on terminal 53. You
cannot set the parameter while the motor is running.
6-2* Analog Input 2
"
Parameters for configuring the scaling and limits
for analog input 2 (terminal 54).
6-20 Terminal 54 Low Voltage
Range:
-10.0 – par. 6-21
Function:
Sets the analog input scaling value to correspond
to the minimum reference value (set in par. 3-02).
See also section Reference Handling.
6-21 Terminal 54 High Voltage
Range:
Par. 6-20 to 10.0 V
Function:
Sets the analog input scaling value to correspond to
the maximum reference value (set in par. 3-03).
6-22 Terminal 54 Low Current
Range:
0.0 to par. 6-23 mA
default setting ( )
*
How to Programme
*
0.000 Unit
*
1500.000 Unit
*
0.001s
*
0.07 V
*
*
0.14mA
display text [ ] value for use in communication via serial communication port
MG.33.B4.02 - VLT is a registered Danfoss trademark
Function:
Determines the value of the reference signal to
correspond to the minimum reference value (set in
par. 3-02). If the Time-out function of par. 6-01
is activated, set the value at >2 mA.
6-23 Terminal 54 High Current
Range:
Par. 6-22 to - 20.0 mA
Function:
Sets the value of the reference signal to correspond
to the maximum reference value (set in par. 3-03).
6-24 Terminal 54 Low Ref./Feedb. Value
Range:
-1000000.000 to par. 6-25
Function:
Sets the analog input scaling value to correspond
to the minimum reference feedback value
(set in par. 3-02).
6-25 Terminal 54 high ref./feedb. value
Range:
Par. 6-24 to 1000000.000
Function:
Sets the analog input scaling value to correspond
to the maximum reference feedback value
(set in par. 3-03).
6-26 Terminal 54 Filter Time Constant
Range:
0.001 - 10.000 s
Function:
A 1st order digital low pass filter time constant for
suppressing electrical noise on terminal 53. You
cannot set the parameter while the motor is running.
6-5* Analog Output 1
"
Analog outputs are current outputs: 0/4 - 20
10.0V
mA. Common terminal (terminal 39) is the same
terminal and electrical potential for analog common
and digital common connection. Resolution
on analog output is 12 bit.
6-50 Terminal 42 Output
Option:
No operation
Output frequency
(0 – 1000 Hz),
0...20mA
*
20.0 mA
*
0.000 Unit
*
1500.000 Unit
*
0.001s
[0]
[100]
