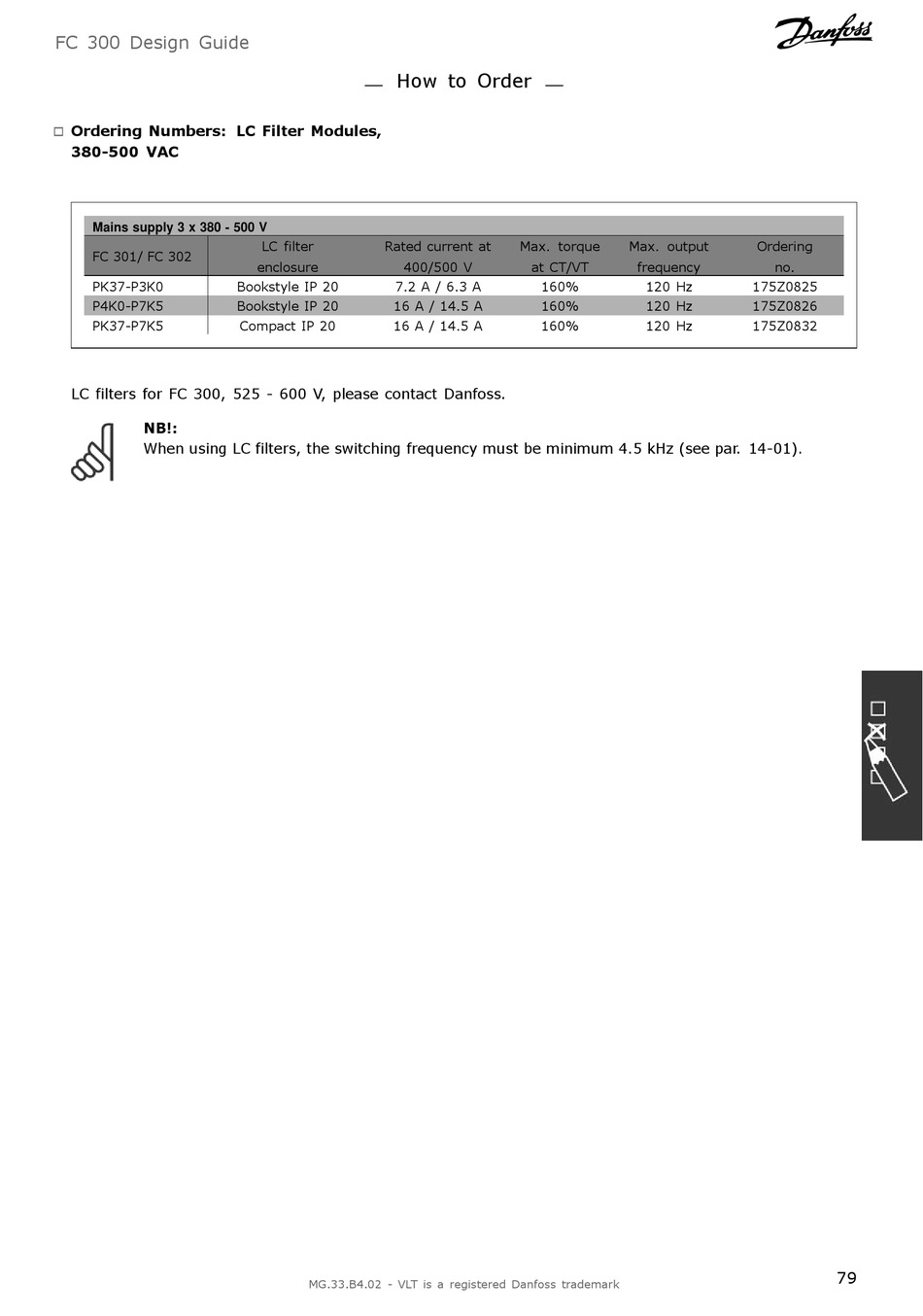

Danfoss VLT AutomationDrive FC 300 Design Manual page 79

FC 300 Design Guide
Ordering Numbers: LC Filter Modules,
"
380-500 VAC
Mains supply 3 x 380 - 500 V
FC 301/ FC 302
PK37-P3K0
P4K0-P7K5
PK37-P7K5
LC filters for FC 300, 525 - 600 V, please contact Danfoss.
NB!:
When using LC filters, the switching frequency must be minimum 4.5 kHz (see par. 14-01).
How to Order
LC filter Rated current at
enclosure 400/500 V
Bookstyle IP 20 7.2 A / 6.3 A
Bookstyle IP 20 16 A / 14.5 A
Compact IP 20 16 A / 14.5 A
MG.33.B4.02 - VLT is a registered Danfoss trademark
Max. torque Max. output
at CT/VT frequency
160% 120 Hz
160% 120 Hz
160% 120 Hz
Ordering
no.
175Z0825
175Z0826
175Z0832
79
