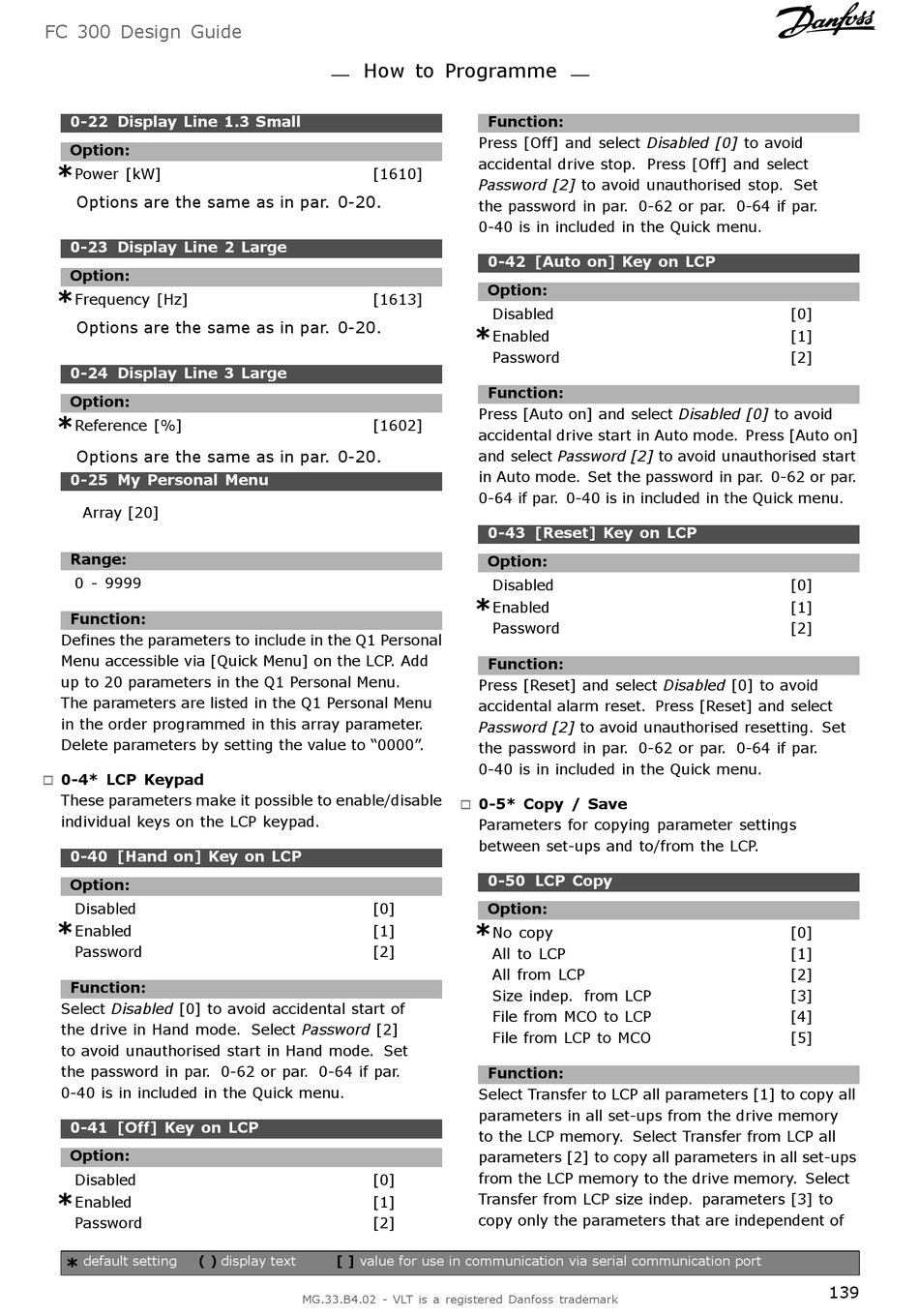

Danfoss VLT AutomationDrive FC 300 Design Manual page 139

FC 300 Design Guide
0-22 Display Line 1.3 Small
Option:
*
Power [kW]
Options are the same as in par. 0-20.
0-23 Display Line 2 Large
Option:
*
Frequency [Hz]
Options are the same as in par. 0-20.
0-24 Display Line 3 Large
Option:
*
Reference [%]
Options are the same as in par. 0-20.
0-25 My Personal Menu
Array [20]
Range:
0 - 9999
Function:
Defines the parameters to include in the Q1 Personal
Menu accessible via [Quick Menu] on the LCP. Add
up to 20 parameters in the Q1 Personal Menu.
The parameters are listed in the Q1 Personal Menu
in the order programmed in this array parameter.
Delete parameters by setting the value to "0000".
0-4* LCP Keypad
"
These parameters make it possible to enable/disable
individual keys on the LCP keypad.
0-40 [Hand on] Key on LCP
Option:
Disabled
*
Enabled
Password
Function:
Select Disabled [0] to avoid accidental start of
the drive in Hand mode. Select Password [2]
to avoid unauthorised start in Hand mode. Set
the password in par. 0-62 or par. 0-64 if par.
0-40 is in included in the Quick menu.
0-41 [Off] Key on LCP
Option:
Disabled
*
Enabled
Password
default setting ( )
*
How to Programme
[1610]
[1613]
[1602]
[0]
[1]
[2]
[0]
[1]
[2]
display text [ ] value for use in communication via serial communication port
MG.33.B4.02 - VLT is a registered Danfoss trademark
Function:
Press [Off] and select Disabled [0] to avoid
accidental drive stop. Press [Off] and select
Password [2] to avoid unauthorised stop. Set
the password in par. 0-62 or par. 0-64 if par.
0-40 is in included in the Quick menu.
0-42 [Auto on] Key on LCP
Option:
Disabled
*
Enabled
Password
Function:
Press [Auto on] and select Disabled [0] to avoid
accidental drive start in Auto mode. Press [Auto on]
and select Password [2] to avoid unauthorised start
in Auto mode. Set the password in par. 0-62 or par.
0-64 if par. 0-40 is in included in the Quick menu.
0-43 [Reset] Key on LCP
Option:
Disabled
*
Enabled
Password
Function:
Press [Reset] and select Disabled [0] to avoid
accidental alarm reset. Press [Reset] and select
Password [2] to avoid unauthorised resetting. Set
the password in par. 0-62 or par. 0-64 if par.
0-40 is in included in the Quick menu.
0-5* Copy / Save
"
Parameters for copying parameter settings
between set-ups and to/from the LCP.
0-50 LCP Copy
Option:
*
No copy
All to LCP
All from LCP
Size indep. from LCP
File from MCO to LCP
File from LCP to MCO
Function:
Select Transfer to LCP all parameters [1] to copy all
parameters in all set-ups from the drive memory
to the LCP memory. Select Transfer from LCP all
parameters [2] to copy all parameters in all set-ups
from the LCP memory to the drive memory. Select
Transfer from LCP size indep. parameters [3] to
copy only the parameters that are independent of
[0]
[1]
[2]
[0]
[1]
[2]
[0]
[1]
[2]
[3]
[4]
[5]
