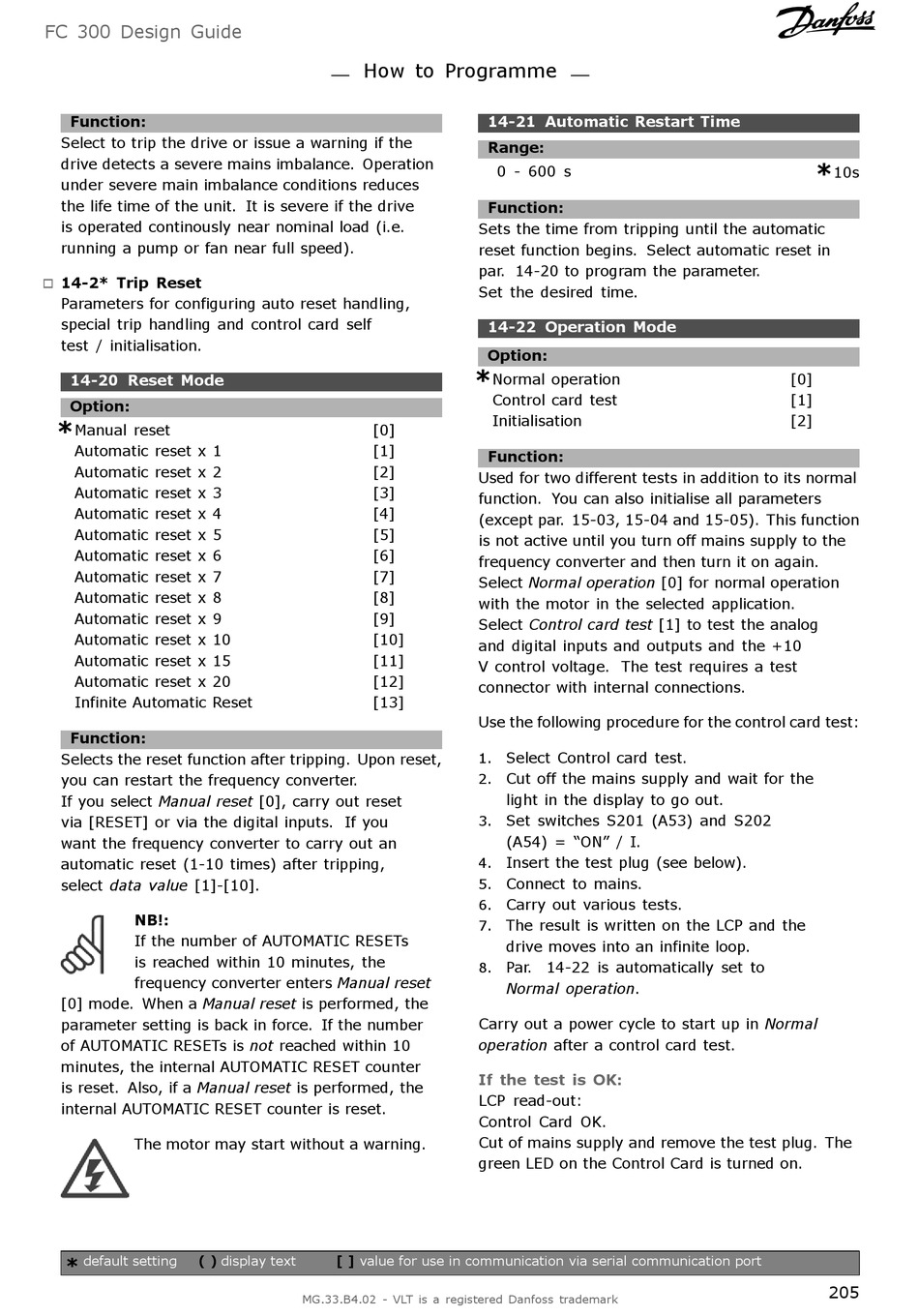

Function:
Select to trip the drive or issue a warning if the
drive detects a severe mains imbalance. Operation
under severe main imbalance conditions reduces
the life time of the unit. It is severe if the drive
is operated continously near nominal load (i.e.
running a pump or fan near full speed).
14-2* Trip Reset
"
Parameters for configuring auto reset handling,
special trip handling and control card self
test / initialisation.
14-20 Reset Mode
Option:
*
Manual reset
Automatic reset x 1
Automatic reset x 2
Automatic reset x 3
Automatic reset x 4
Automatic reset x 5
Automatic reset x 6
Automatic reset x 7
Automatic reset x 8
Automatic reset x 9
Automatic reset x 10
Automatic reset x 15
Automatic reset x 20
Infinite Automatic Reset
Function:
Selects the reset function after tripping. Upon reset,
you can restart the frequency converter.
If you select Manual reset [0], carry out reset
via [RESET] or via the digital inputs. If you
want the frequency converter to carry out an
automatic reset (1-10 times) after tripping,
select data value [1]-[10].
NB!:
If the number of AUTOMATIC RESETs
is reached within 10 minutes, the
frequency converter enters Manual reset
[0] mode. When a Manual reset is performed, the
parameter setting is back in force. If the number
of AUTOMATIC RESETs is not reached within 10
minutes, the internal AUTOMATIC RESET counter
is reset. Also, if a Manual reset is performed, the
internal AUTOMATIC RESET counter is reset.
The motor may start without a warning.
default setting ( )
*
How to Programme
[0]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
display text [ ] value for use in communication via serial communication port
MG.33.B4.02 - VLT is a registered Danfoss trademark
14-21 Automatic Restart Time
Range:
0 - 600 s
Function:
Sets the time from tripping until the automatic
reset function begins. Select automatic reset in
par. 14-20 to program the parameter.
Set the desired time.
14-22 Operation Mode
Option:
*
Normal operation
Control card test
Initialisation
Function:
Used for two different tests in addition to its normal
function. You can also initialise all parameters
(except par. 15-03, 15-04 and 15-05). This function
is not active until you turn off mains supply to the
frequency converter and then turn it on again.
Select Normal operation [0] for normal operation
with the motor in the selected application.
Select Control card test [1] to test the analog
and digital inputs and outputs and the +10
V control voltage. The test requires a test
connector with internal connections.
Use the following procedure for the control card test:
Select Control card test.
1.
Cut off the mains supply and wait for the
2.
light in the display to go out.
Set switches S201 (A53) and S202
3.
(A54) = "ON" / I.
4. Insert the test plug (see below).
Connect to mains.
5.
Carry out various tests.
6.
The result is written on the LCP and the
7.
drive moves into an infinite loop.
Par. 14-22 is automatically set to
8.
Normal operation.
Carry out a power cycle to start up in Normal
operation after a control card test.
If the test is OK:
LCP read-out:
Control Card OK.
Cut of mains supply and remove the test plug. The
green LED on the Control Card is turned on.
*
10s
[0]
[1]
[2]
