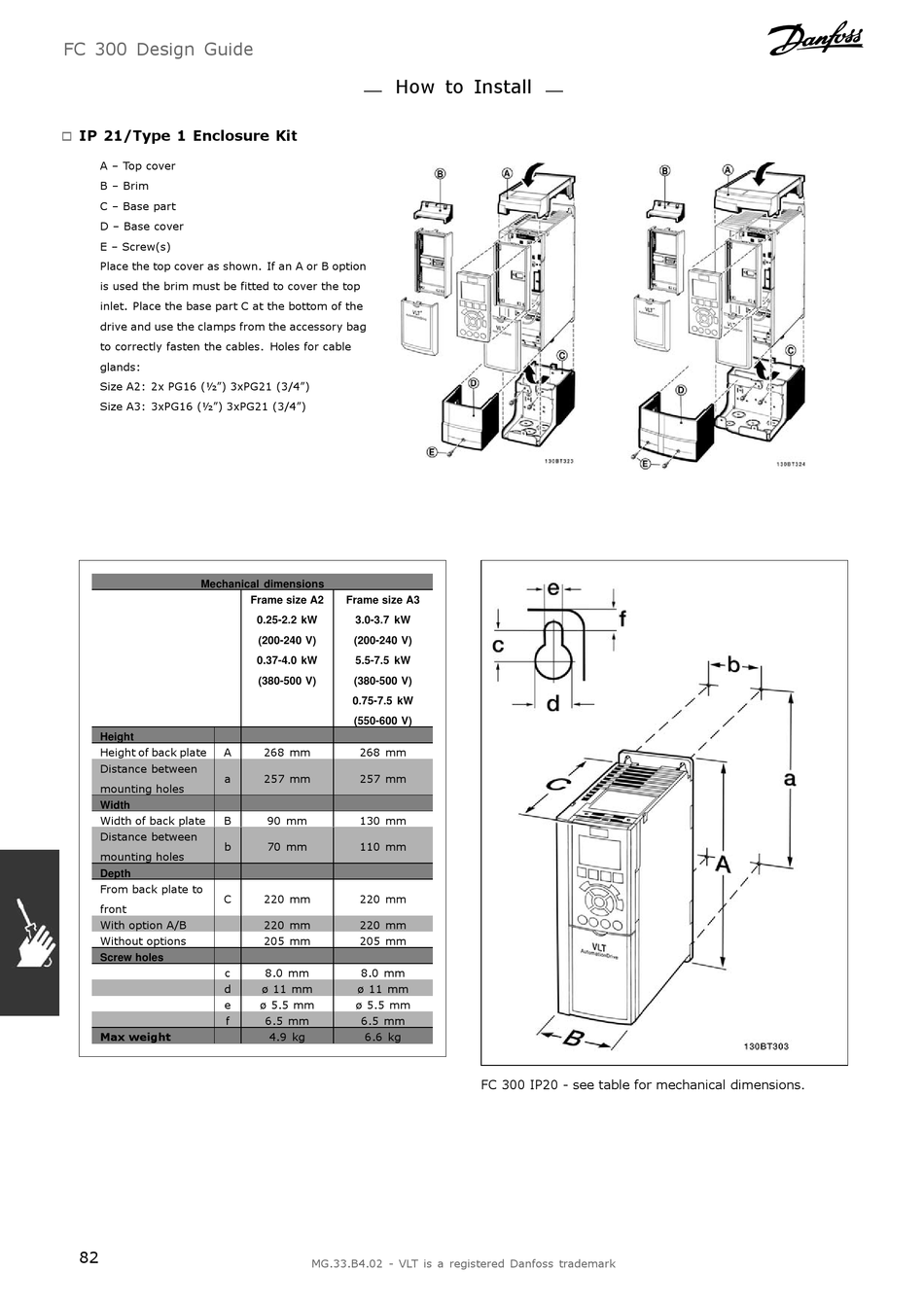

Danfoss VLT AutomationDrive FC 300 Design Manual page 82

FC 300 Design Guide
IP 21/Type 1 Enclosure Kit
"
A – Top cover
B – Brim
C – Base part
D – Base cover
E – Screw(s)
Place the top cover as shown. If an A or B option
is used the brim must be fitted to cover the top
inlet. Place the base part C at the bottom of the
drive and use the clamps from the accessory bag
to correctly fasten the cables. Holes for cable
glands:
Size A2: 2x PG16 (½") 3xPG21 (3/4")
Size A3: 3xPG16 (½") 3xPG21 (3/4")
Mechanical dimensions
Height
Height of back plate A
Distance between
a
mounting holes
Width
Width of back plate B
Distance between
b
mounting holes
Depth
From back plate to
C
front
With option A/B
Without options
Screw holes
c
d
e
f
Max weight
82
How to Install
Frame size A2 Frame size A3
0.25-2.2 kW 3.0-3.7 kW
(200-240 V) (200-240 V)
0.37-4.0 kW 5.5-7.5 kW
(380-500 V) (380-500 V)
0.75-7.5 kW
(550-600 V)
268 mm 268 mm
257 mm 257 mm
90 mm 130 mm
70 mm 110 mm
220 mm 220 mm
220 mm 220 mm
205 mm 205 mm
8.0 mm 8.0 mm
ø 11 mm ø 11 mm
ø 5.5 mm ø 5.5 mm
6.5 mm 6.5 mm
4.9 kg 6.6 kg
MG.33.B4.02 - VLT is a registered Danfoss trademark
FC 300 IP20 - see table for mechanical dimensions.
