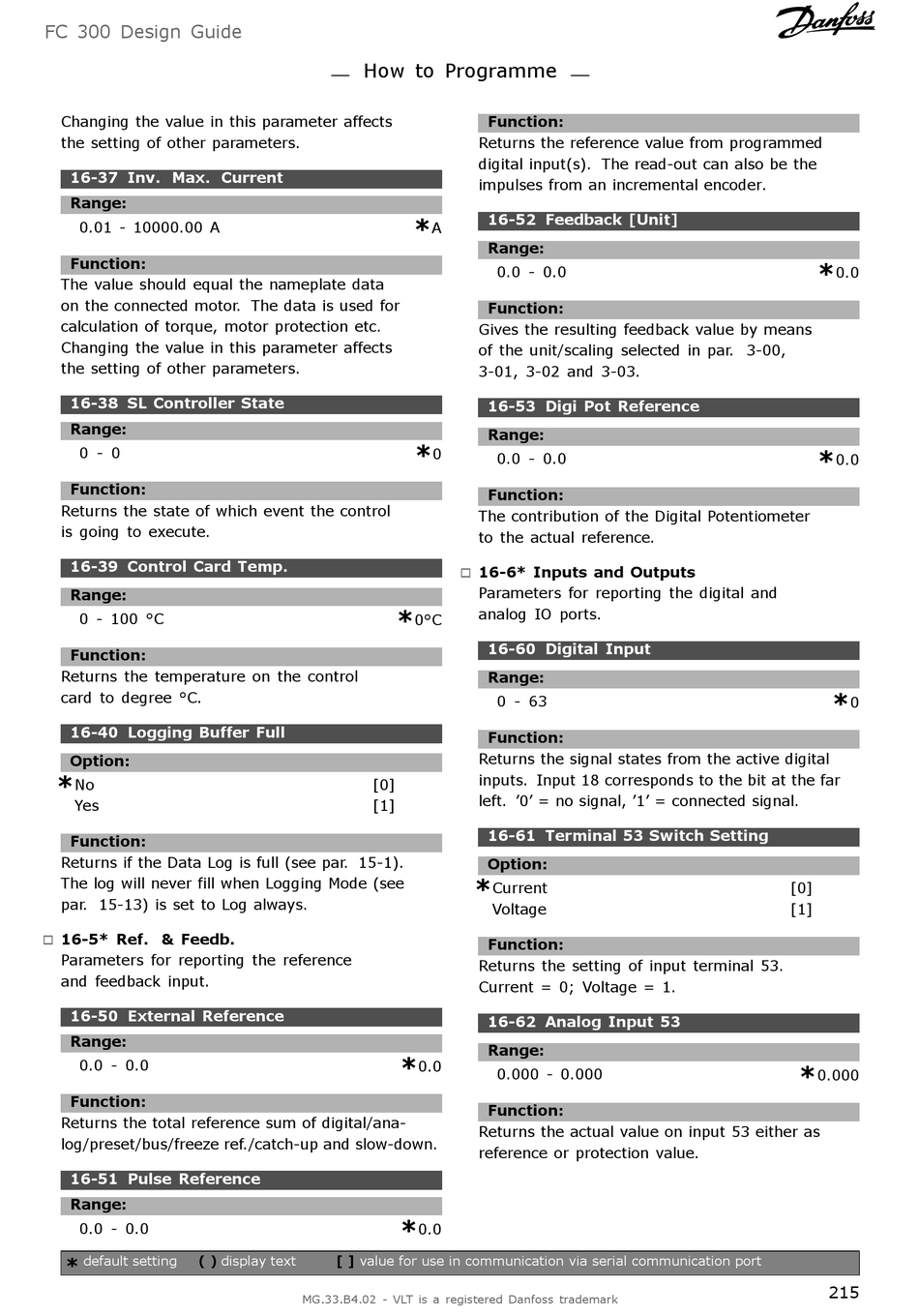

FC 300 Design Guide
Changing the value in this parameter affects
the setting of other parameters.
16-37 Inv. Max. Current
Range:
0.01 - 10000.00 A
Function:
The value should equal the nameplate data
on the connected motor. The data is used for
calculation of torque, motor protection etc.
Changing the value in this parameter affects
the setting of other parameters.
16-38 SL Controller State
Range:
0 - 0
Function:
Returns the state of which event the control
is going to execute.
16-39 Control Card Temp.
Range:
0 - 100 °C
Function:
Returns the temperature on the control
card to degree °C.
16-40 Logging Buffer Full
Option:
*
No
Yes
Function:
Returns if the Data Log is full (see par. 15-1).
The log will never fill when Logging Mode (see
par. 15-13) is set to Log always.
16-5* Ref. & Feedb.
"
Parameters for reporting the reference
and feedback input.
16-50 External Reference
Range:
0.0 - 0.0
Function:
Returns the total reference sum of digital/ana-
log/preset/bus/freeze ref./catch-up and slow-down.
16-51 Pulse Reference
Range:
0.0 - 0.0
default setting ( )
*
How to Programme
[0]
[1]
display text [ ] value for use in communication via serial communication port
MG.33.B4.02 - VLT is a registered Danfoss trademark
Function:
Returns the reference value from programmed
digital input(s). The read-out can also be the
impulses from an incremental encoder.
16-52 Feedback [Unit]
*
A
Range:
0.0 - 0.0
Function:
Gives the resulting feedback value by means
of the unit/scaling selected in par. 3-00,
3-01, 3-02 and 3-03.
16-53 Digi Pot Reference
Range:
*
0
0.0 - 0.0
Function:
The contribution of the Digital Potentiometer
to the actual reference.
16-6* Inputs and Outputs
"
Parameters for reporting the digital and
*
analog IO ports.
0°C
16-60 Digital Input
Range:
0 - 63
Function:
Returns the signal states from the active digital
inputs. Input 18 corresponds to the bit at the far
left. '0' = no signal, '1' = connected signal.
16-61 Terminal 53 Switch Setting
Option:
*
Current
Voltage
Function:
Returns the setting of input terminal 53.
Current = 0; Voltage = 1.
16-62 Analog Input 53
Range:
*
0.0
0.000 - 0.000
Function:
Returns the actual value on input 53 either as
reference or protection value.
*
0.0
*
0.0
*
0.0
*
0
[0]
[1]
*
0.000
