FC 300 Design Guide
[Alarm Log] displays an Alarm list of the five latest alarms (numbered A1-A5). To obtain additional details
about an alarm, use the arrow keys to manoeuvre to the alarm number and press [OK]. You will now receive
information about the condition of your frequency converter right before entering the alarm mode.

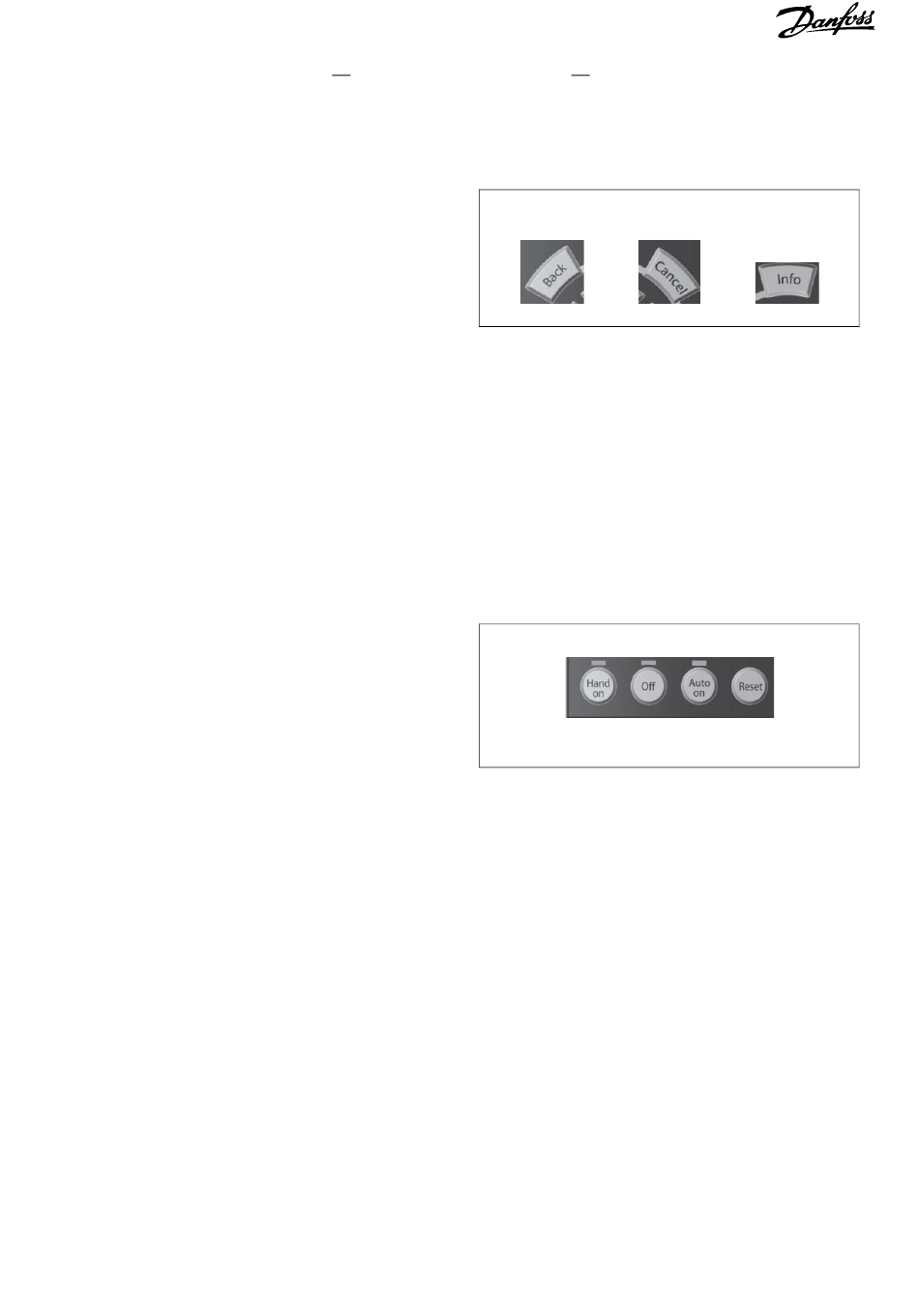

[Back] takes you to the previous step or layer
in the navigation structure.
[Cancel] annuls your last change or command as
long as the display has not been changed.
[Info] supplies information about a command,
parameter, or function in any display window. [Info]
provides detailed information whenever
help is needed.
Exit info mode by pressing either [Info],
[Back], or [Cancel].
Navigation Keys
The four navigation arrows are used to navigate between the different choices available in
Menu], [Main Menu]
[OK] is used for choosing a parameter marked by the cursor and for enabling the change of a parameter.
Local Control Key for local control are found
at the bottom of the control panel.
[Hand On] enables control of the frequency converter via the LCP. [Hand on] also starts the motor,
and it is now possible to enter the motor speed data by means of the arrow keys. The key can be
selected as Enable [1] or Disable [0] via par. 0-40 [Hand on] key on LCP.
External stop signals activated by means of control signals or a serial bus will over-
ride a "start" command via the LCP.
The following control signals will still be active when [Hand on] is activated:
[Hand on] - [Off] - [Auto on]
•
Reset
•
Coasting stop inverse
•
Reversing
•
Set-up select lsb - Set-up select msb
•
Stop command from serial communication
•
Quick stop
•
DC brake
•
[Off] stops the connected motor. The key can be selected as Enable [1] or Disable [0] via
par. 0-41 [Off] key on LCP. If no external stop function is selected and the [Off] key is
inactive the motor can be stopped by disconnecting the voltage.
How to Programme
and [Alarm Log]. Use the keys to move the cursor.
