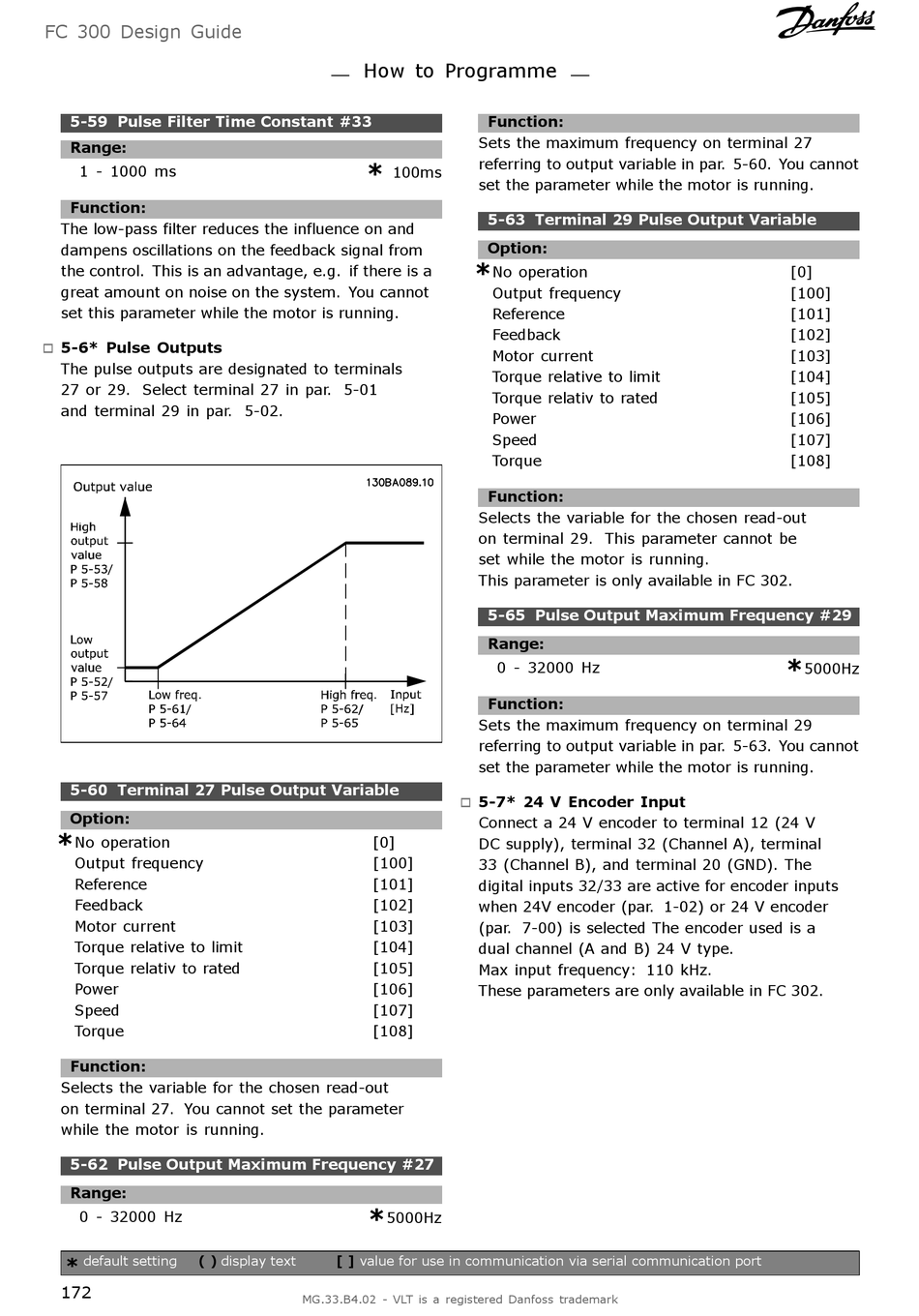

Danfoss VLT AutomationDrive FC 300 Design Manual page 172

FC 300 Design Guide
5-59 Pulse Filter Time Constant #33
Range:
1 - 1000 ms
Function:
The low-pass filter reduces the influence on and
dampens oscillations on the feedback signal from
the control. This is an advantage, e.g. if there is a
great amount on noise on the system. You cannot
set this parameter while the motor is running.
5-6* Pulse Outputs
"
The pulse outputs are designated to terminals
27 or 29. Select terminal 27 in par. 5-01
and terminal 29 in par. 5-02.
5-60 Terminal 27 Pulse Output Variable
Option:
*
No operation
Output frequency
Reference
Feedback
Motor current
Torque relative to limit
Torque relativ to rated
Power
Speed
Torque
Function:
Selects the variable for the chosen read-out
on terminal 27. You cannot set the parameter
while the motor is running.
5-62 Pulse Output Maximum Frequency #27
Range:
0 - 32000 Hz
default setting ( )
*
172
How to Programme
*
100ms
[0]
[100]
[101]
[102]
[103]
[104]
[105]
[106]
[107]
[108]
*
5000Hz
display text [ ] value for use in communication via serial communication port
MG.33.B4.02 - VLT is a registered Danfoss trademark
Function:
Sets the maximum frequency on terminal 27
referring to output variable in par. 5-60. You cannot
set the parameter while the motor is running.
5-63 Terminal 29 Pulse Output Variable
Option:
*
No operation
Output frequency
Reference
Feedback
Motor current
Torque relative to limit
Torque relativ to rated
Power
Speed
Torque
Function:
Selects the variable for the chosen read-out
on terminal 29. This parameter cannot be
set while the motor is running.
This parameter is only available in FC 302.
5-65 Pulse Output Maximum Frequency #29
Range:
0 - 32000 Hz
Function:
Sets the maximum frequency on terminal 29
referring to output variable in par. 5-63. You cannot
set the parameter while the motor is running.
5-7* 24 V Encoder Input
"
Connect a 24 V encoder to terminal 12 (24 V
DC supply), terminal 32 (Channel A), terminal
33 (Channel B), and terminal 20 (GND). The
digital inputs 32/33 are active for encoder inputs
when 24V encoder (par. 1-02) or 24 V encoder
(par. 7-00) is selected The encoder used is a
dual channel (A and B) 24 V type.
Max input frequency: 110 kHz.
These parameters are only available in FC 302.
[0]
[100]
[101]
[102]
[103]
[104]
[105]
[106]
[107]
[108]
*
5000Hz
