FC 300 Instruction Manual

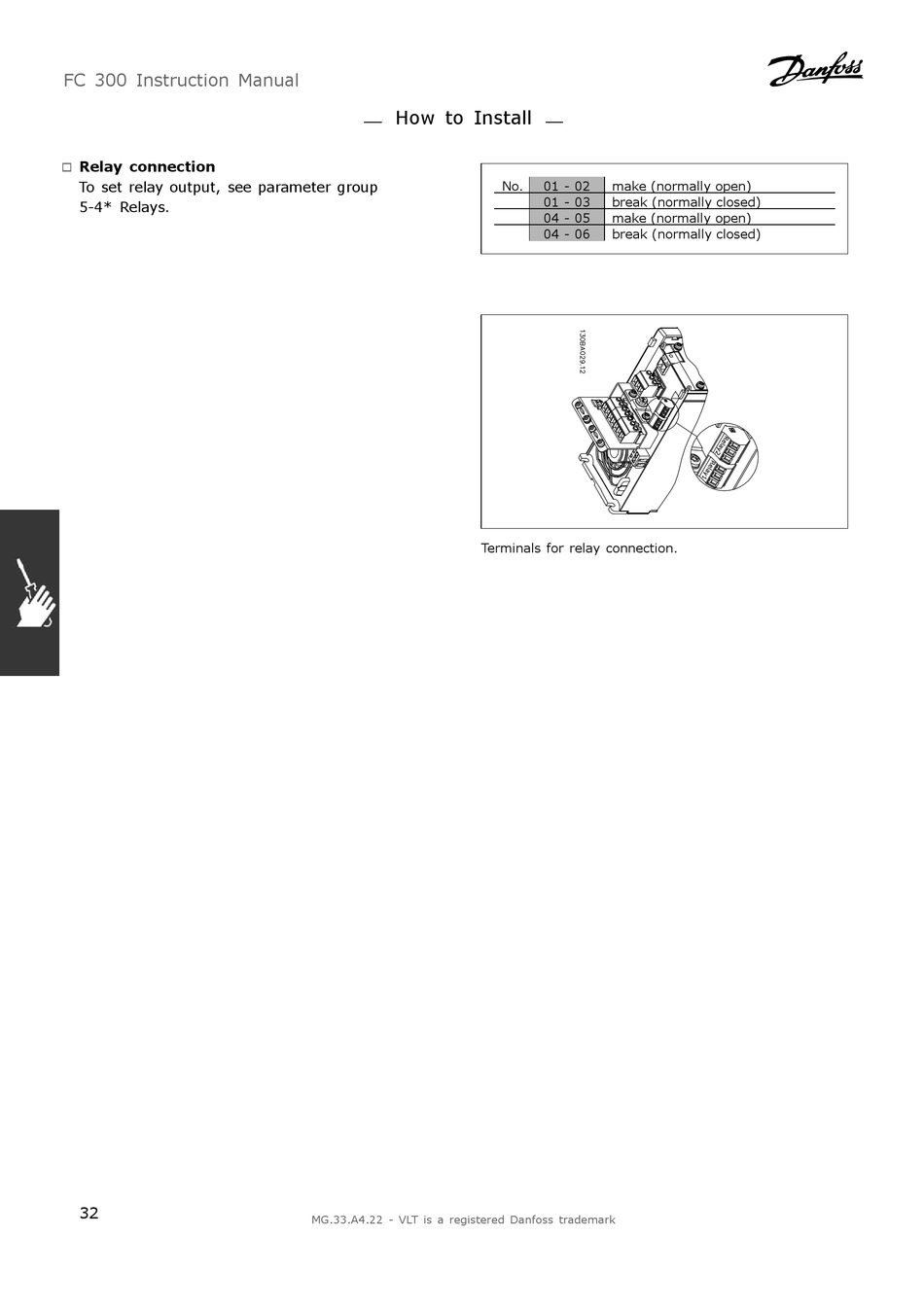

Relay connection
"
To set relay output, see parameter group
5-4* Relays.
32
How to Install
Terminals for relay connection.
MG.33.A4.22 - VLT is a registered Danfoss trademark
No.
01 - 02
make (normally open)
01 - 03
break (normally closed)
04 - 05
make (normally open)
04 - 06
break (normally closed)
