2. Installation

2.3.3 EtherNet/IP Master Board Installation

Appeance

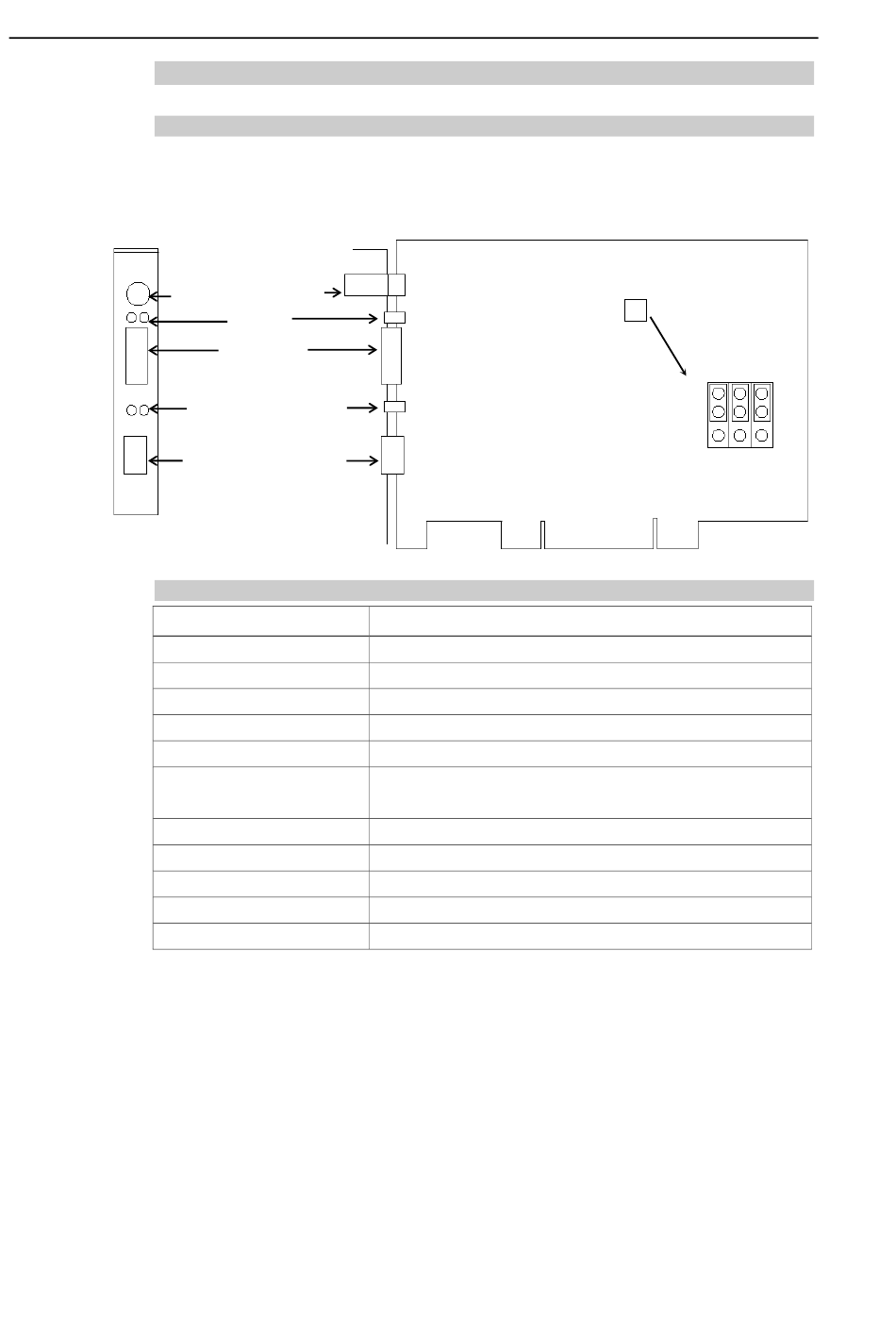

Part names and functions of the EtherNet/IP Master Board are shown in the following
figure. For details of the status display LEDs, refer to 4. Troubleshooting in this manual.
PCU-ETHIO
(Do not use this port.)
Specifications
Part Number
Baud Rates
Interface
Maximum Node
Connection Type
Explicit message
connection
EDS support
Part Number
Max. Input Data Size
Max. Output Data Size
Automatic Detection
102
4-pin Terminal
Watchdog Port
LED (2)
(Not in use)
D-Sub 9 pin
(Not in use)
Status Display LED (2)
EtherNetI/P Connector
Item
Jumper Pin for Board Address
Specification
EtherNet/IPMaster Board
Master
10, 100 Mbps
EtherNet/IP 1 port
127
Cyclic, Change of State
Yes
Yes
1024 bit (128 bytes)
1024 bit (128 bytes)
Yes. Devices can be detected automatically.
RC700 / RC90 Option Fieldbus I/O Rev.12
JP1
JP1
0
1
C0 C1 C2
