2. Installation
Software Installation
Before installing the PROFIBUS-DP master board to the PC with the EPSON RC+ 7.0
installed, you must install the applicomIO Console application and drivers according to the
type of board you are using.
1.
2.
3.
4.
64
Insert the applicomIO Console CD-ROM to the PC with the EPSON RC+ 7.0
installed.

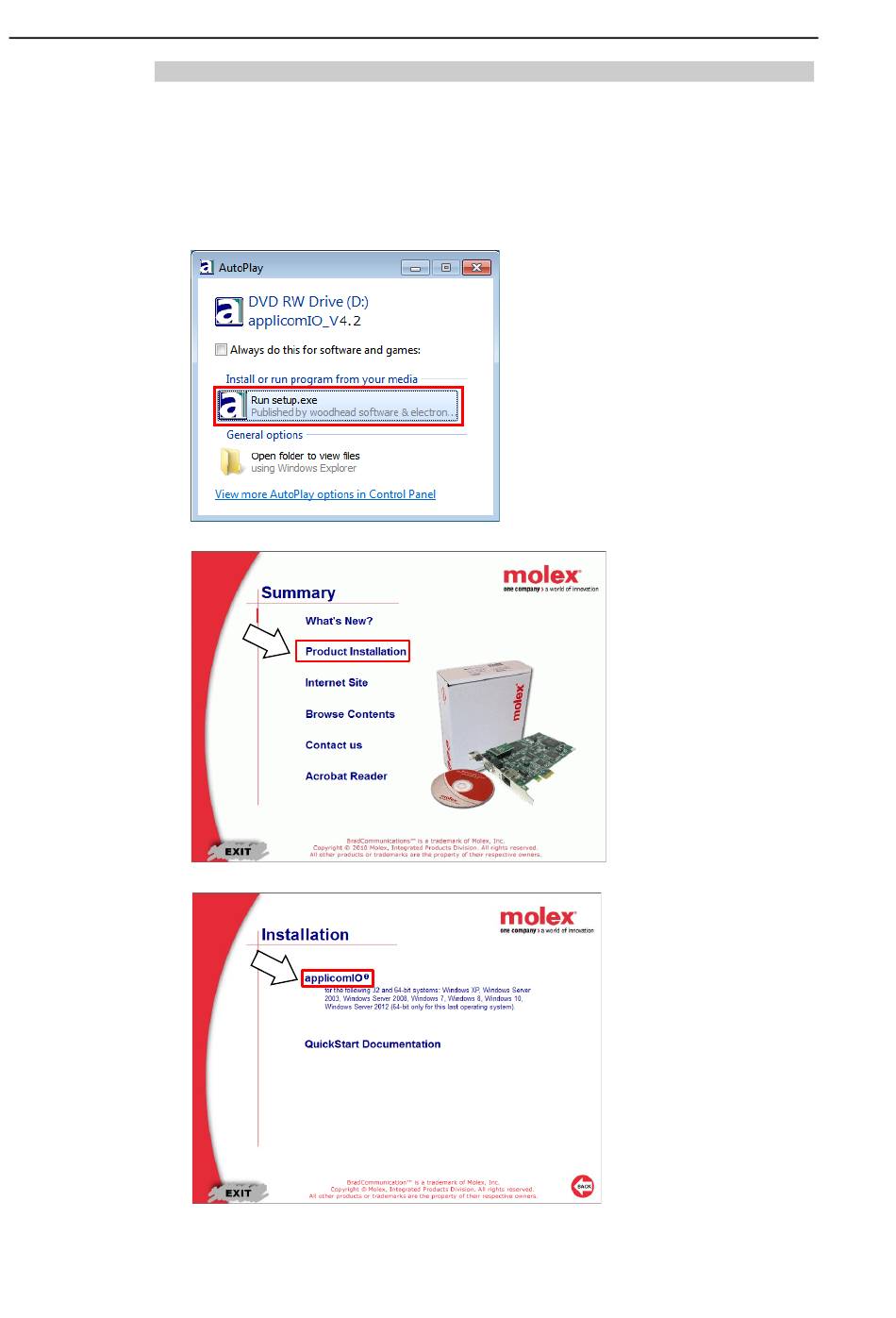

The following dialog box appears. Select <Run setup.exe>.
The [Summary] dialog box appears. Select "Products Installation".
The [Installation] dialog box appears. Select "applicomIO".
RC700 / RC90 Option Fieldbus I/O Rev.12
