Epson RC700 Manual page 132

2. Installation
8.
9.
10. Select [Inputs / Outputs].
11. Confirm that the following are displayed in "Fieldbus Master".
12. Select [Fieldbus Master]-[General].
13. Confirm that the following are displayed.
122

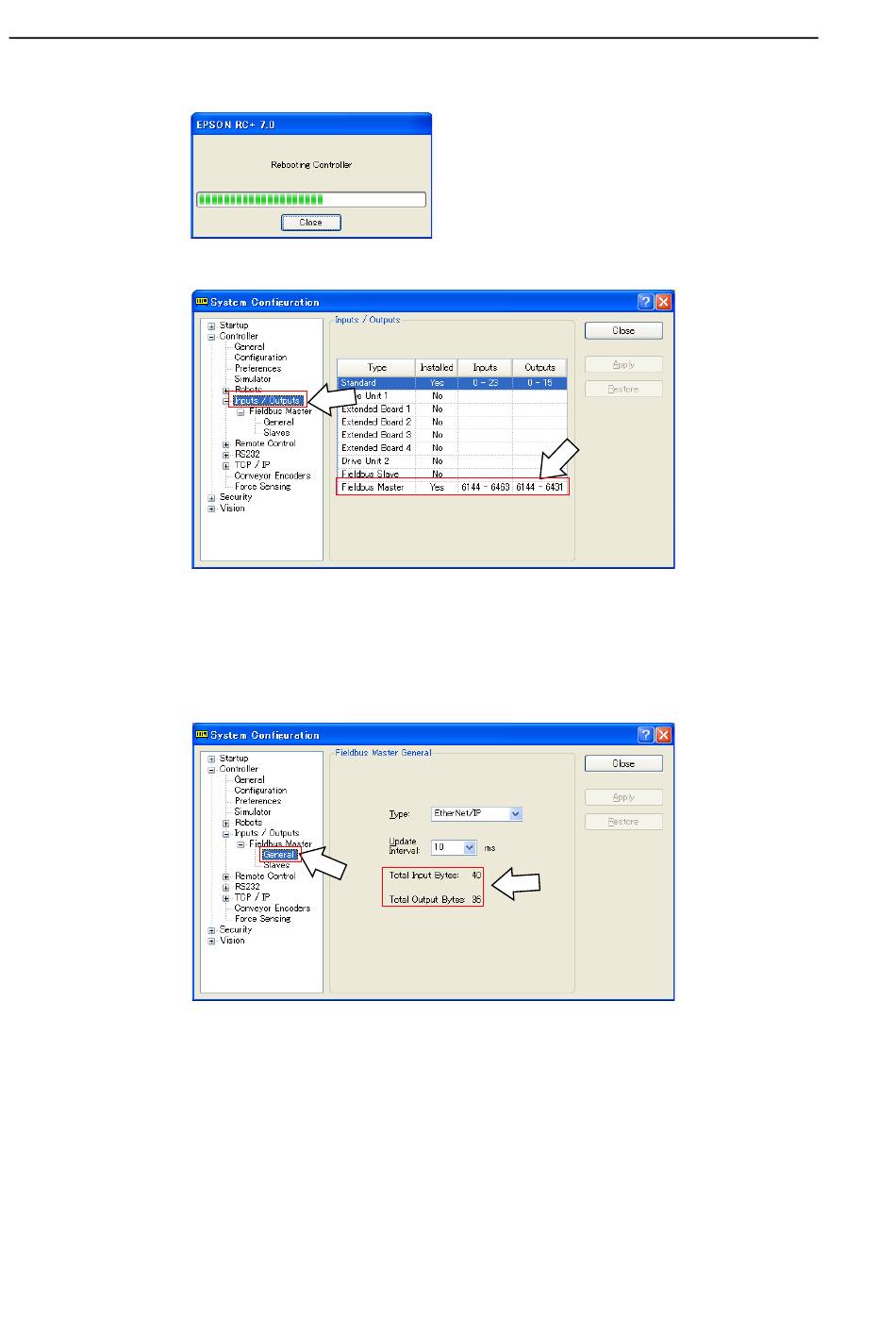

Click <Close>. The following dialog box appears.
The Robot Controller automatically starts rebooting.
Select [Setup]-[System Configuration] and display the [System Configuration] dialog
box.
(10)
Installed : Yes
Inputs : 6144 – ( 6144 + Number of inputs the master controls (Bits) )
Outputs : 6144 – ( 6144 + Number of outputs the master controls (Bits) )
(12)
Total Input Bytes : Number of inputs the master controls (Bytes)
Total Output Bytes : Number of outputs the master controls (Bytes)
(11)
(13)
