RC700 / RC90 Option Fieldbus I/O Rev.12

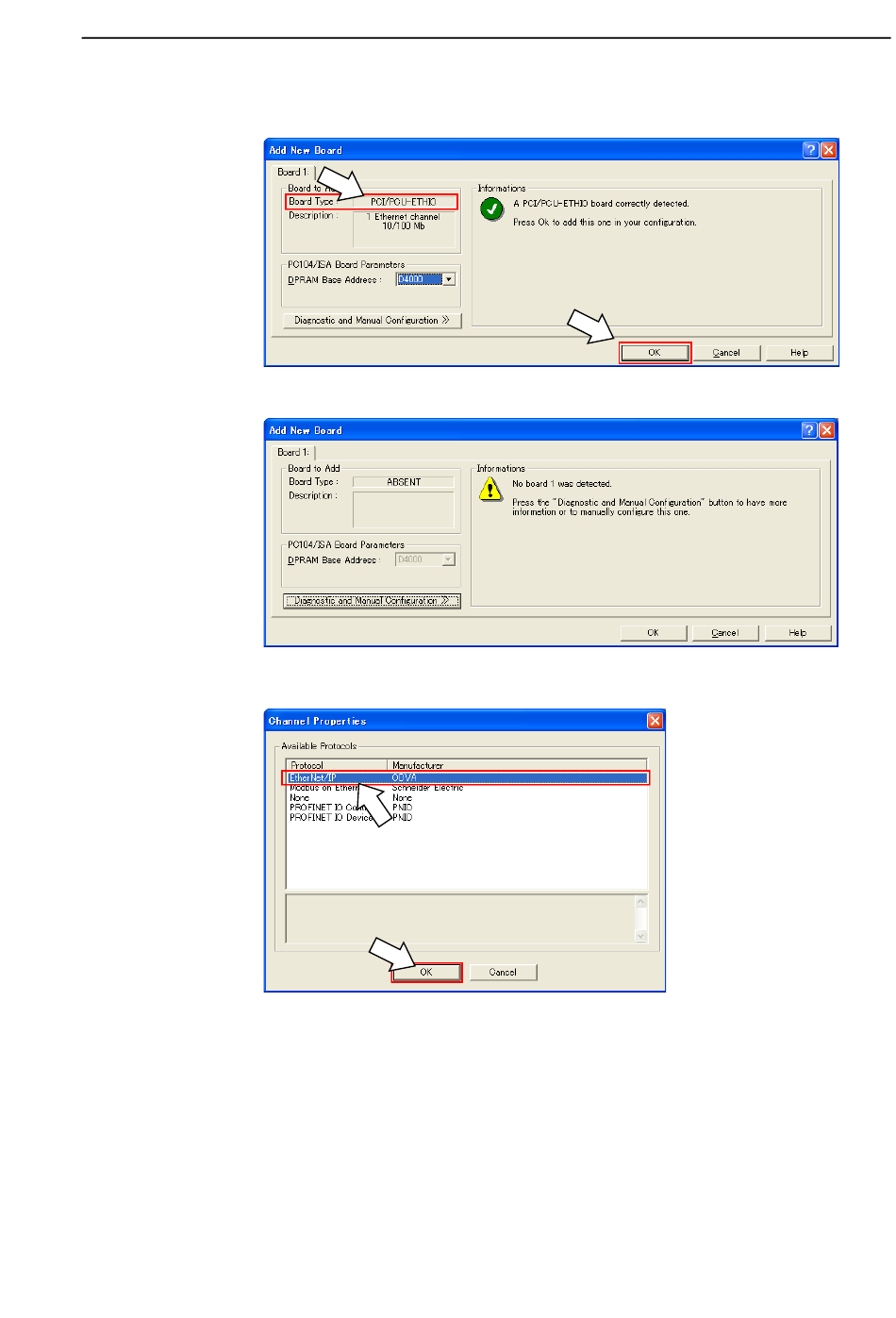

The [Add New Board] dialog box appears.
Confirm that "PCI/PCU-ETHIO" is displayed in [Board to Add]-[Board Type] and
click <OK>.
If the board cannot be detected, the following dialog box appears. Make sure that the
board is correctly inserted.
The [Channnel Properties] dialog box appears.
Select [Protocol]-[EtherNet/IP] and click <OK>.
2. Installation
109
