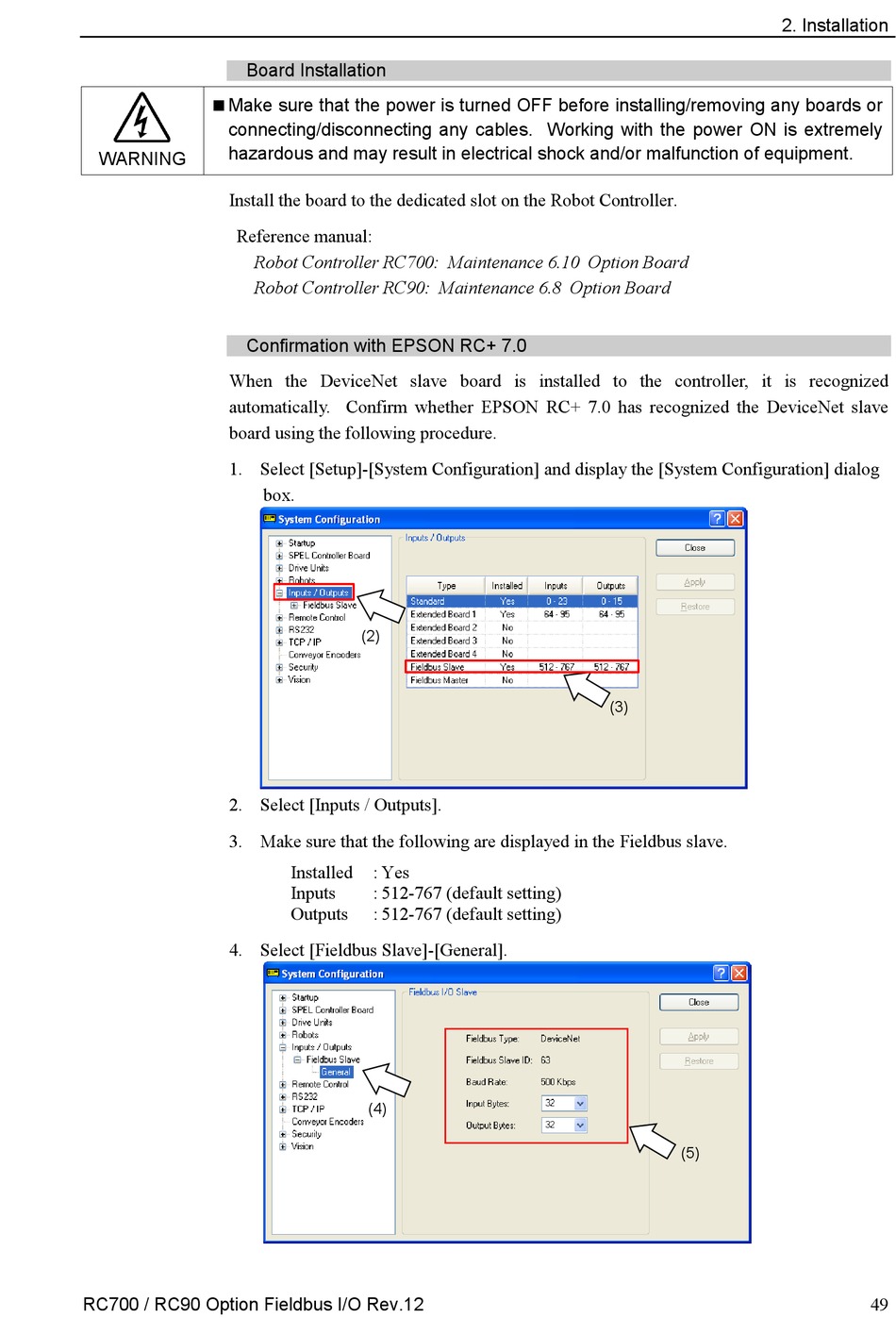

Epson RC700 Manual page 59

Board Installation
 Make sure that the power is turned OFF before installing/removing any boards or
connecting/disconnecting any cables. Working with the power ON is extremely
hazardous and may result in electrical shock and/or malfunction of equipment.
WARNING
Install the board to the dedicated slot on the Robot Controller.
Reference manual:
Confirmation with EPSON RC+ 7.0
When the DeviceNet slave board is installed to the controller, it is recognized
automatically. Confirm whether EPSON RC+ 7.0 has recognized the DeviceNet slave
board using the following procedure.
1. Select [Setup]-[System Configuration] and display the [System Configuration] dialog
2. Select [Inputs / Outputs].
3. Make sure that the following are displayed in the Fieldbus slave.
4. Select [Fieldbus Slave]-[General].
RC700 / RC90 Option Fieldbus I/O Rev.12
Robot Controller RC700: Maintenance 6.10 Option Board
Robot Controller RC90: Maintenance 6.8 Option Board
box.
(2)
Installed : Yes
Inputs : 512-767 (default setting)
Outputs : 512-767 (default setting)
(4)
(3)
(5)
2. Installation
