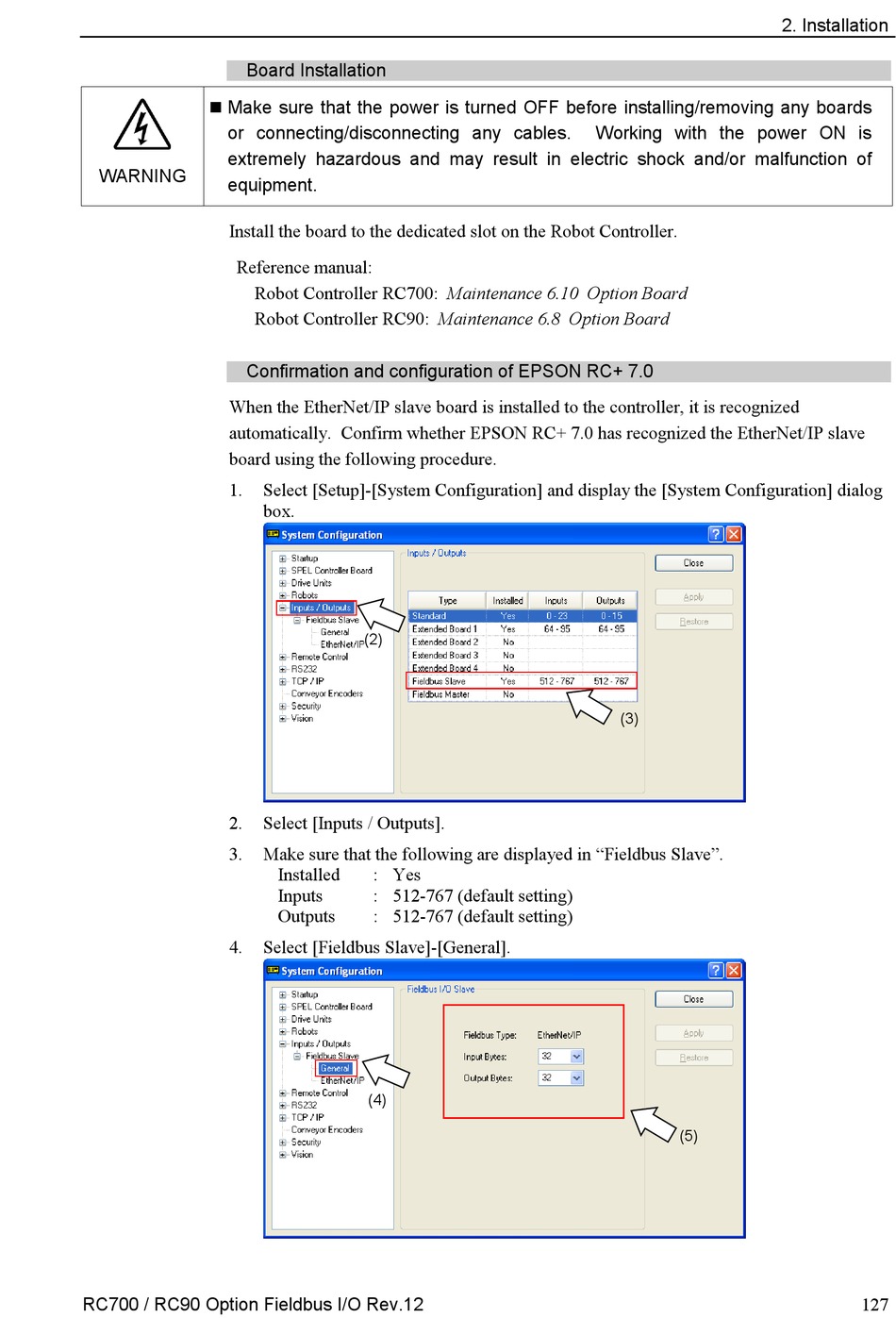

Epson RC700 Manual page 137

Board Installation
 Make sure that the power is turned OFF before installing/removing any boards
or connecting/disconnecting any cables.
extremely hazardous and may result in electric shock and/or malfunction of
WARNING
equipment.
Install the board to the dedicated slot on the Robot Controller.
Reference manual:
Confirmation and configuration of EPSON RC+ 7.0
When the EtherNet/IP slave board is installed to the controller, it is recognized
automatically. Confirm whether EPSON RC+ 7.0 has recognized the EtherNet/IP slave
board using the following procedure.
1.
2.
3.
4.
RC700 / RC90 Option Fieldbus I/O Rev.12
Robot Controller RC700: Maintenance 6.10 Option Board
Robot Controller RC90: Maintenance 6.8 Option Board
Select [Setup]-[System Configuration] and display the [System Configuration] dialog
box.
(2)
Select [Inputs / Outputs].
Make sure that the following are displayed in "Fieldbus Slave".
Installed : Yes
Inputs : 512-767 (default setting)
Outputs : 512-767 (default setting)
Select [Fieldbus Slave]-[General].
(4)
Working with the power ON is
(3)
(5)
2. Installation
