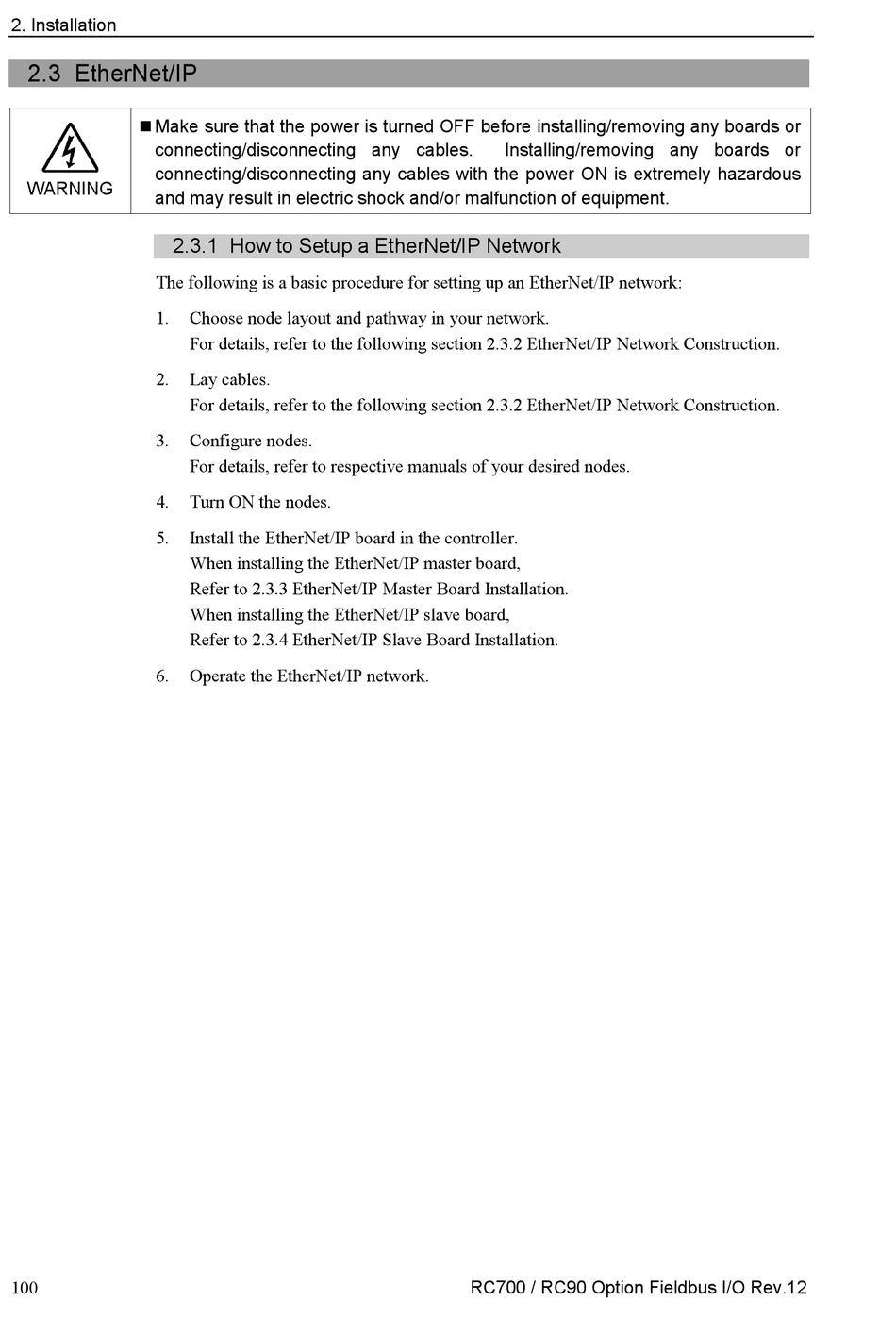

Ethernet/Ip; How To Setup A Ethernet/Ip Network - Epson RC700 Manual

2. Installation

2.3 EtherNet/IP

 Make sure that the power is turned OFF before installing/removing any boards or
connecting/disconnecting any cables.
connecting/disconnecting any cables with the power ON is extremely hazardous
WARNING
and may result in electric shock and/or malfunction of equipment.

2.3.1 How to Setup a EtherNet/IP Network

The following is a basic procedure for setting up an EtherNet/IP network:
1.
2.
3.
4.
5.
6.
100
Choose node layout and pathway in your network.
For details, refer to the following section 2.3.2 EtherNet/IP Network Construction.
Lay cables.
For details, refer to the following section 2.3.2 EtherNet/IP Network Construction.
Configure nodes.
For details, refer to respective manuals of your desired nodes.
Turn ON the nodes.
Install the EtherNet/IP board in the controller.
When installing the EtherNet/IP master board,
Refer to 2.3.3 EtherNet/IP Master Board Installation.
When installing the EtherNet/IP slave board,
Refer to 2.3.4 EtherNet/IP Slave Board Installation.
Operate the EtherNet/IP network.
Installing/removing any boards or
RC700 / RC90 Option Fieldbus I/O Rev.12
