2. Installation
7.
8.
9.

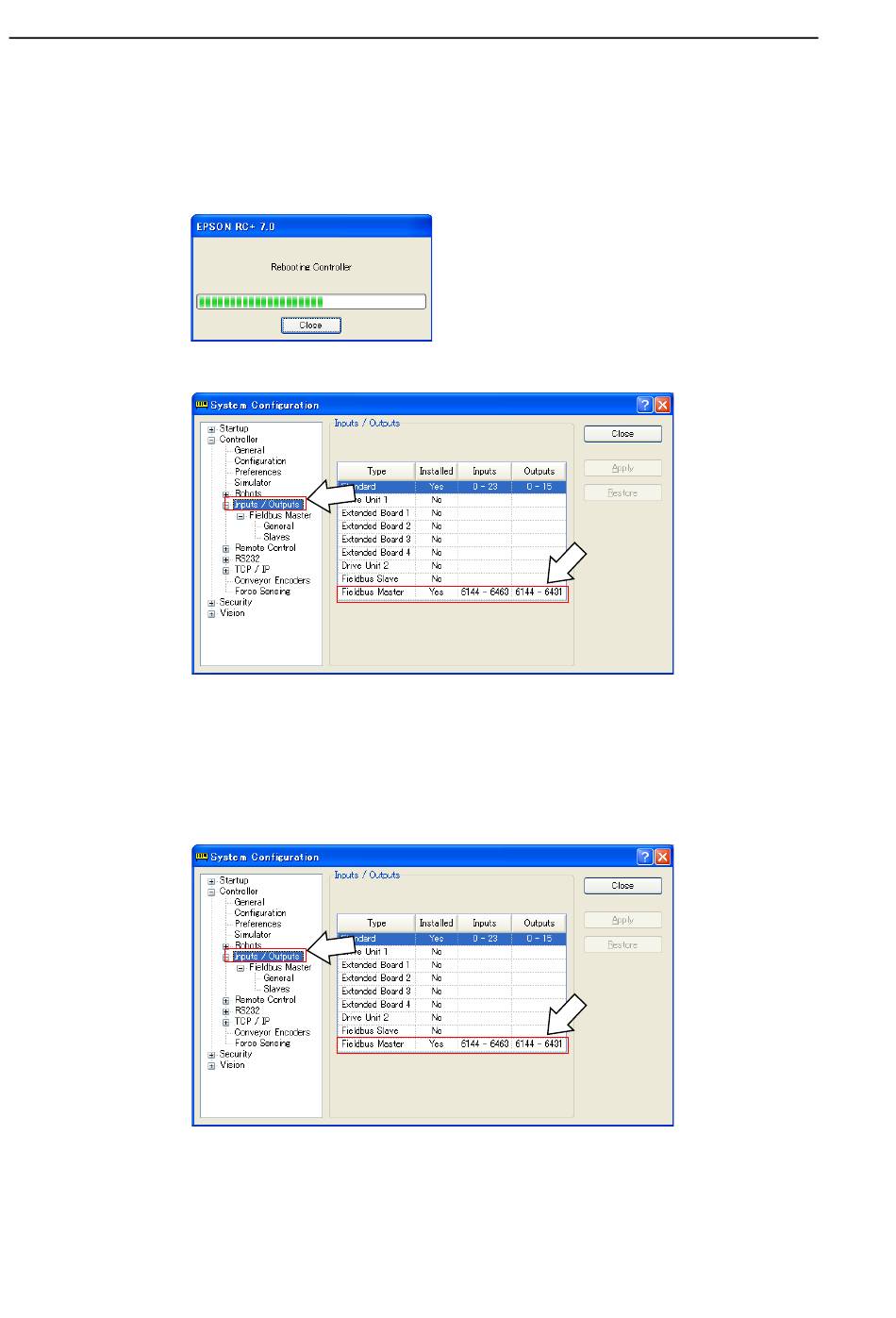

10. Select [Inputs / Outputs].
11. Confirm that "Fieldbus master" displays the following:
12. Select [Fieldbus Master]-[General].
13. Confirm that the following is displayed.
44
Click <Apply>.
Confirm that the following is displayed.
Total Input Bytes
Total Output Bytes : Number of outputs the master controls (Bytes)
Click <Close>. The following dialog box appears.
The Robot Controller automatically starts rebooting.
Select [Setup]-[System Configuration] and display the [System Configuration] dialog
box.
(10)
Installed : Yes
Inputs : "6144" – "6144 + Number of inputs the master controls (Bits) )
Outputs : "6144" – "6144 + Number of outputs the master controls (Bits) )
(10)
Total Input Bytes
Total Output Bytes : Number of outputs the master controls (Bytes)
: Number of inputs the master controls (Bytes)
: Number of inputs the master controls (Bytes)
RC700 / RC90 Option Fieldbus I/O Rev.12
