2. Installation
9.
10. When you complete adding the DeviceNet master board to the applicomIO Console
11. After the PC is rebooted, refer to the next section Master Mode and continue the step.
110

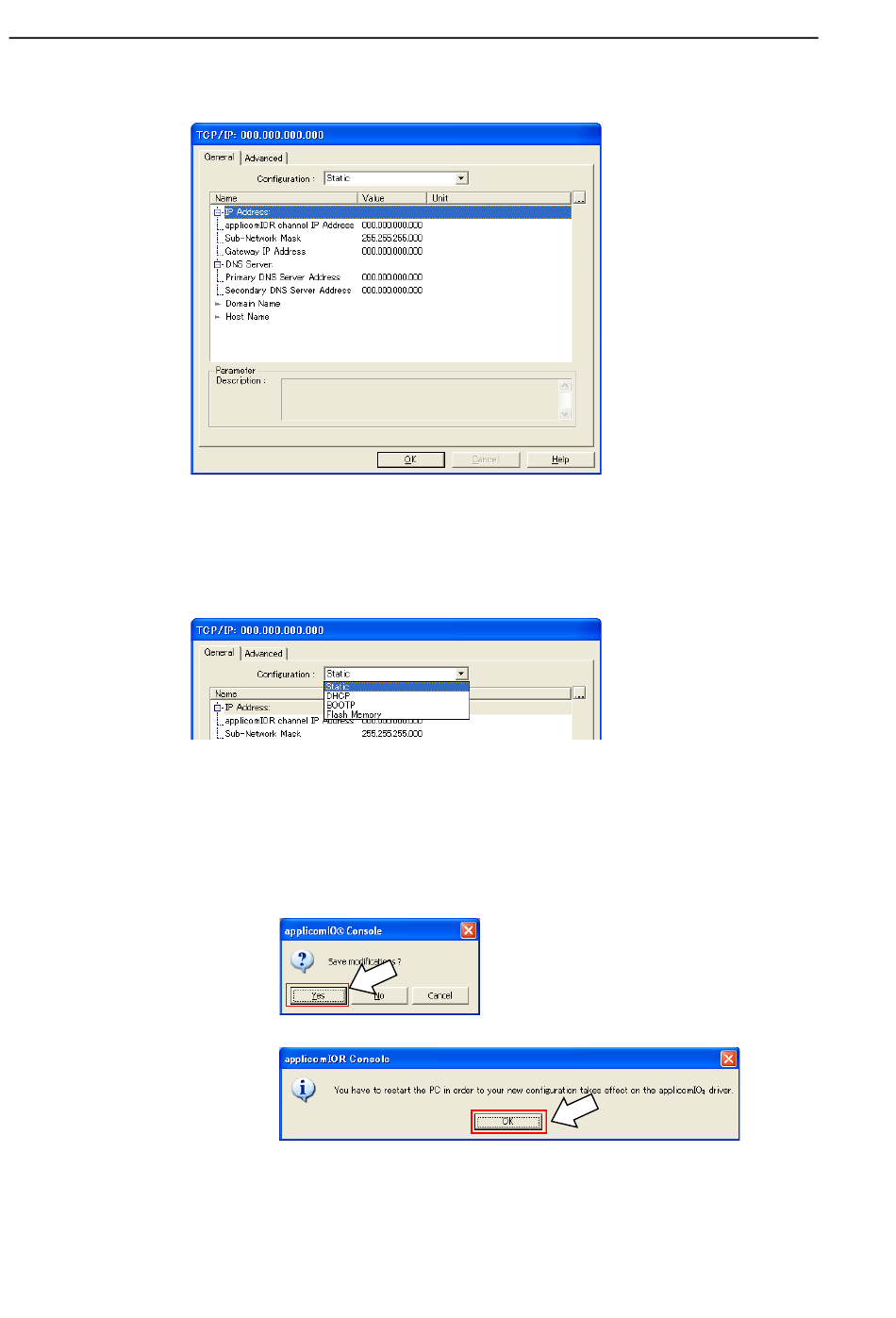

The following dialog box appears. Set the IP address for the EtherNet/IP master
board.
Select the IP address from [Configuration]. There are following three types (Do not
select "Flash Memory")
"Static (assign as fixed IP address)"
"DHCP (obtain from the DHCP server)"
"BOOTP (obtain from the BOOTP server"
If you select "Static (Fixed IP address)", enter the values in each item.
application, reboot the PC.
10-1 Close the applicomIO Console application.
When closing the applicomIO Console application, the following
message appears. Click <Yes>.
10-2 The following message appears. Click <OK>.
10-3 Reboot the Windows.
RC700 / RC90 Option Fieldbus I/O Rev.12
