CHAPTER 2 Checks and Preparation

2.9 Connecting to a PC

Use the USB cable to connect the GL240 to a PC.
Connection Using a USB Cable
(1) This GL240 complies with the EMC Directive in the state when the supplied ferrite core is attached to the
USB cable.

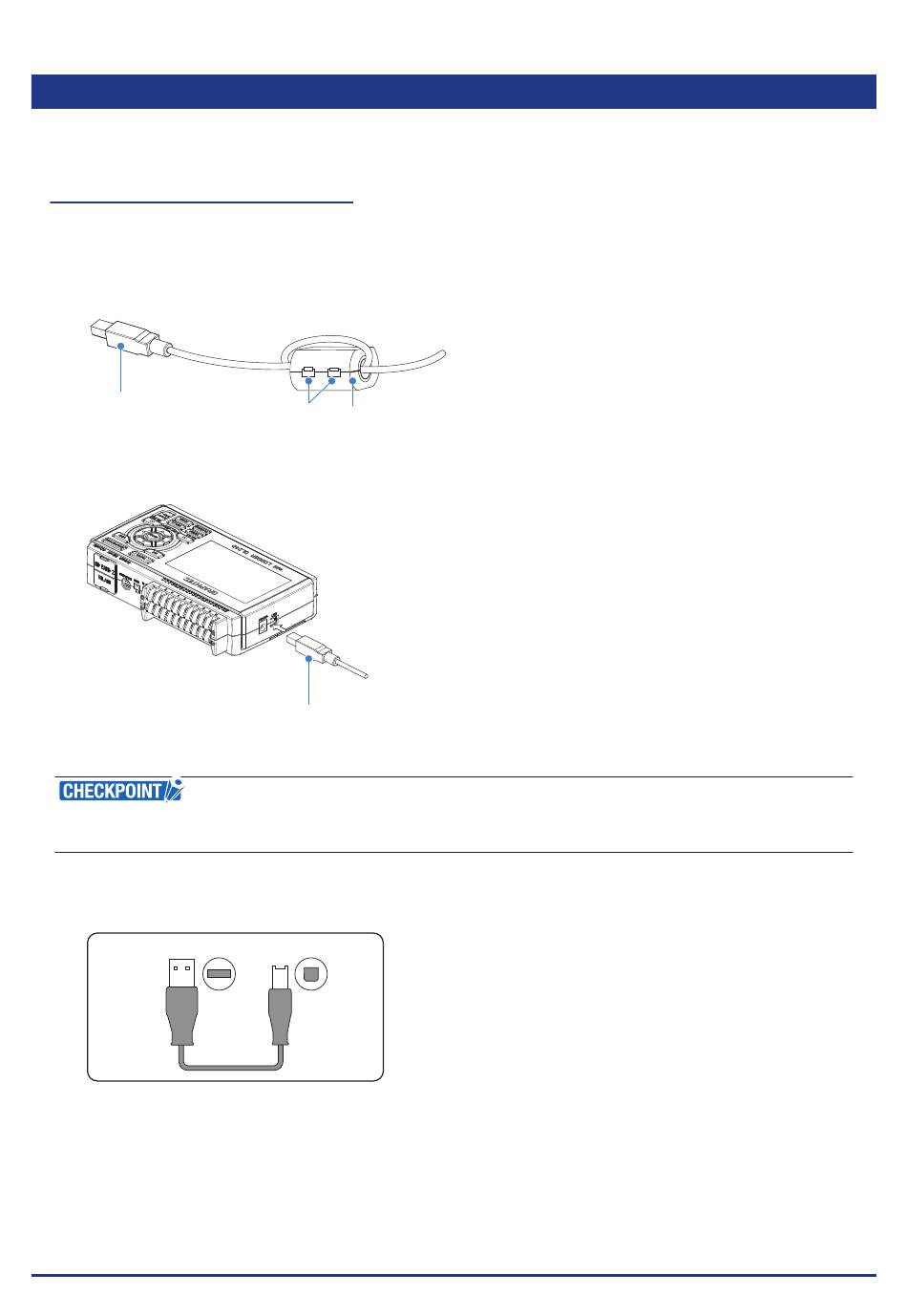

To connect to the PC with the USB cable, attach the supplied ferrite core to the USB cable as shown in
the following figure.
USB cable
(2) Connect between the GL240 and PC with the USB cable.
If the USB cable is used, the USB driver must be installed in your PC. Please refer to "USB Driver
Installation Manual" in the supplied CD-ROM for the installation procedure.
•
Use the cable with A and B connectors to connect the GL240 to a PC.
A connector
2-14
Lock part
Ferrite core (Supplied item)
USB cable
B connector
