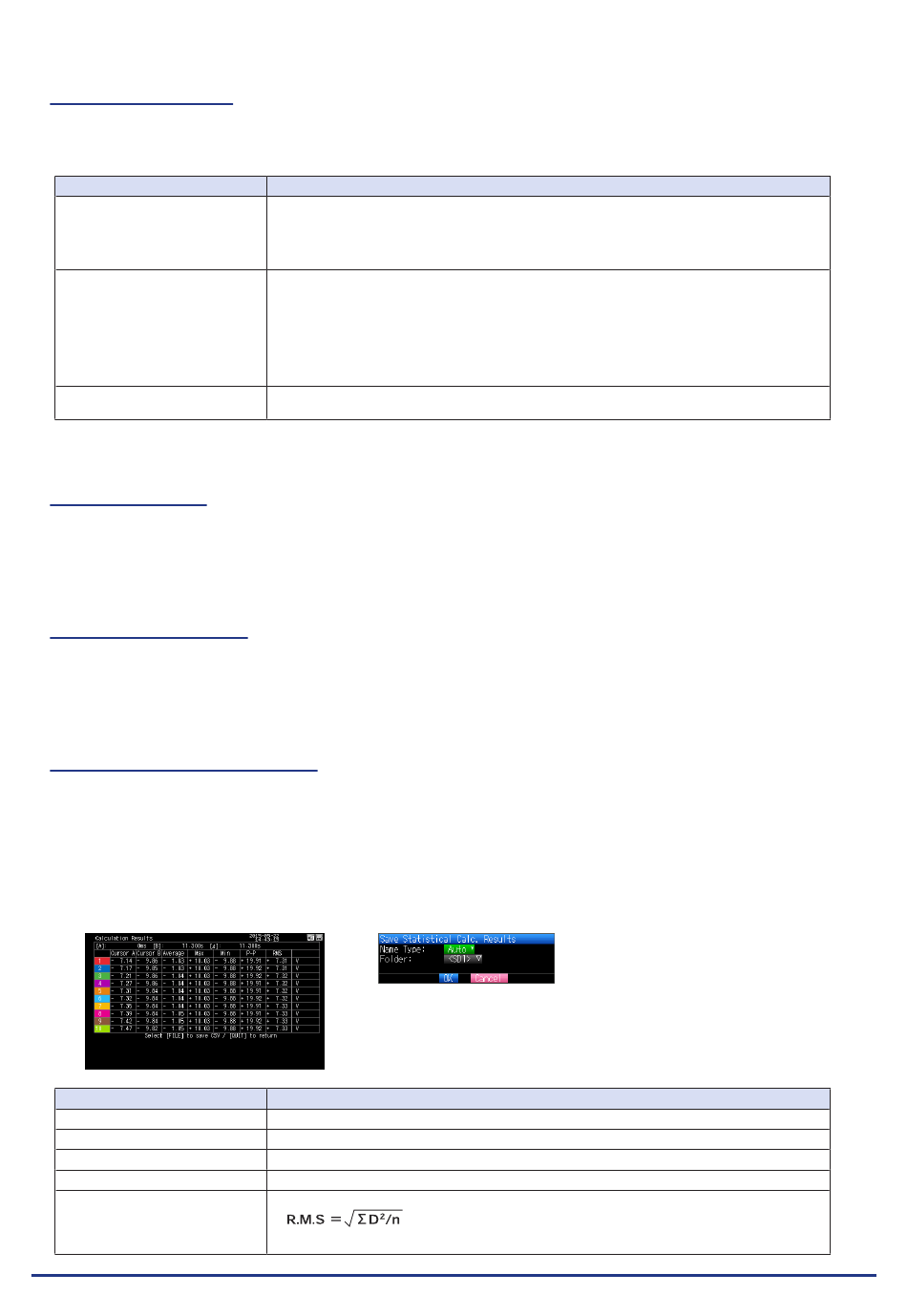

CHAPTER 3 Settings and Measurement
(10)-6 Date Search
Sets the search conditions to be used in the next sections ((10)-7 "Find Next" and (10)-8 "Find Previous").
The operation is Edge operation.
Selection item
CH
Mode
Level
(10)-7 Find Next
Executing this option moves the cursor to a next position where the search conditions are met, down from
the current cursor position. (Specify the search conditions as described in (10)-6 "Data Search.")
(10)-8 Find Previous
Executing this option moves the cursor to a previous position where the search conditions are met, up from
the current cursor position. (Specify the search conditions as described in (10)-6 "Data Search.")
(10)-9 Execute (Calculation)
Executes calculation between cursors. Executing this option opens a window to display calculation results.
For description of the calculation results, see the table below. Pressing the [FILE/GROUP] key opens a
window for saving statistical calculation results. Specify a save destination and select OK to save statistical
calculation results in text (CSV) format.
* The specifying method of storage location and file name is the same as the file specifying method of
captured data. For details, refer to "(8) File box" described above.
Selection item
Average
Max
Min
Peak
RMS
3-82
Sets the channel to be used for search.
CH1-10, WL1-8 : The specified analog channel is used for search.
Logic1-8 : The specified logic channel is used for search.
Pulse1-8 : The specified pulse channel is used for search.
Alarm1-4, WL1 : The specified alarm output is used for search.
Sets the search mode.
Both
: Detects an edge at which alarm output changes from generation to cancellation
or vice versa when Alarm is selected.
: Detects a rising edge of an analog signal or an edge at which alarm output
↑H
changes from cancellation to generation
: Detects a falling edge of an analog signal or an edge at which alarm output
↓L
changes from generation to cancellation.
Sets a voltage level to be searched for when the search channel is an analog or pulse
channel.
Displays the simple average value of the data during data capture.
Displays the maximum value of the data during data capture.
Displays the minimum value of the data during data capture.
Displays the peak value of the data during data capture.
Displays the RMS value of the data during data capture.The calculation formula is as follows:
* D: data n: number of data
Description
Description
