14. Pen display

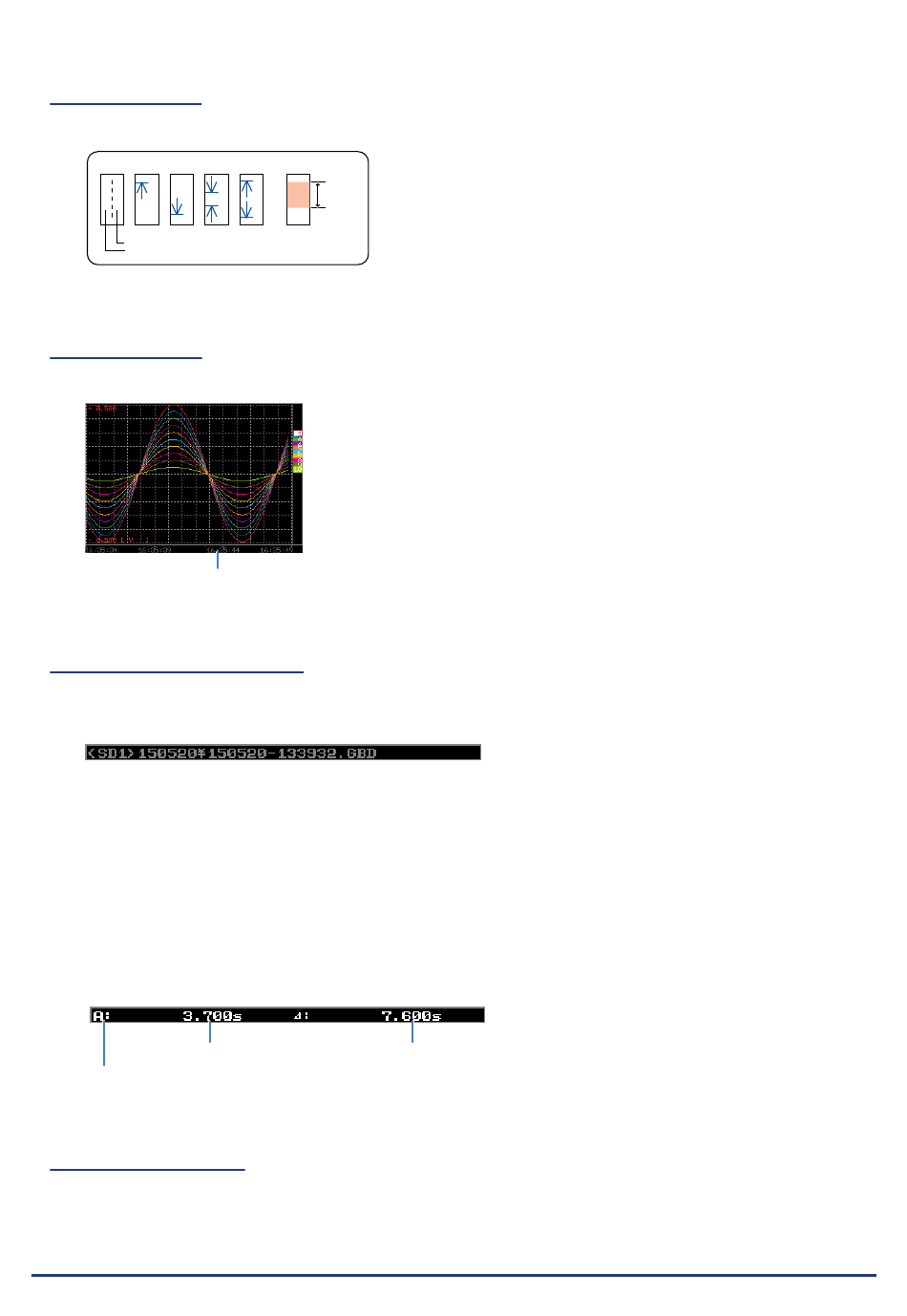

Displays the each channel signal position, trigger position, and alarm range.
Trigger position
Rising Falling
Stop position
Start position
15. Time stamp
Displays the time stamp of a currently displayed waveform as time.
16. File name display area
(1) During data capture
A capture file name is displayed during capture.
* If the ring recording setting is ON, a file name displayed during capture ends with "_RINGx" (x
represents a number) but the actual file name does not include "_RINGx".
In the above figure, if the ring recording is set to ON, the file name during capture will be displayed,
for example, as "<SD1>150520\150520-133932_RING4.GBD" but the actually created file will be
"<SD1>150520\150520-133932.GBD".
* Refer to "(2) DATA settings" in "3.4 Setting Menus" for details.
(2) During data replay
Information on the time axis of the cursor is displayed during replay.
Time to which the cursor points
Selected cursor
17. Scale lower limit
Displays the scale lower limit of the currently active channel.
3-6
Alarm range
Win In Win Out
This indicator shows that the
measurement data was captured at
16:35:44.
Time difference between Cursors A and B
