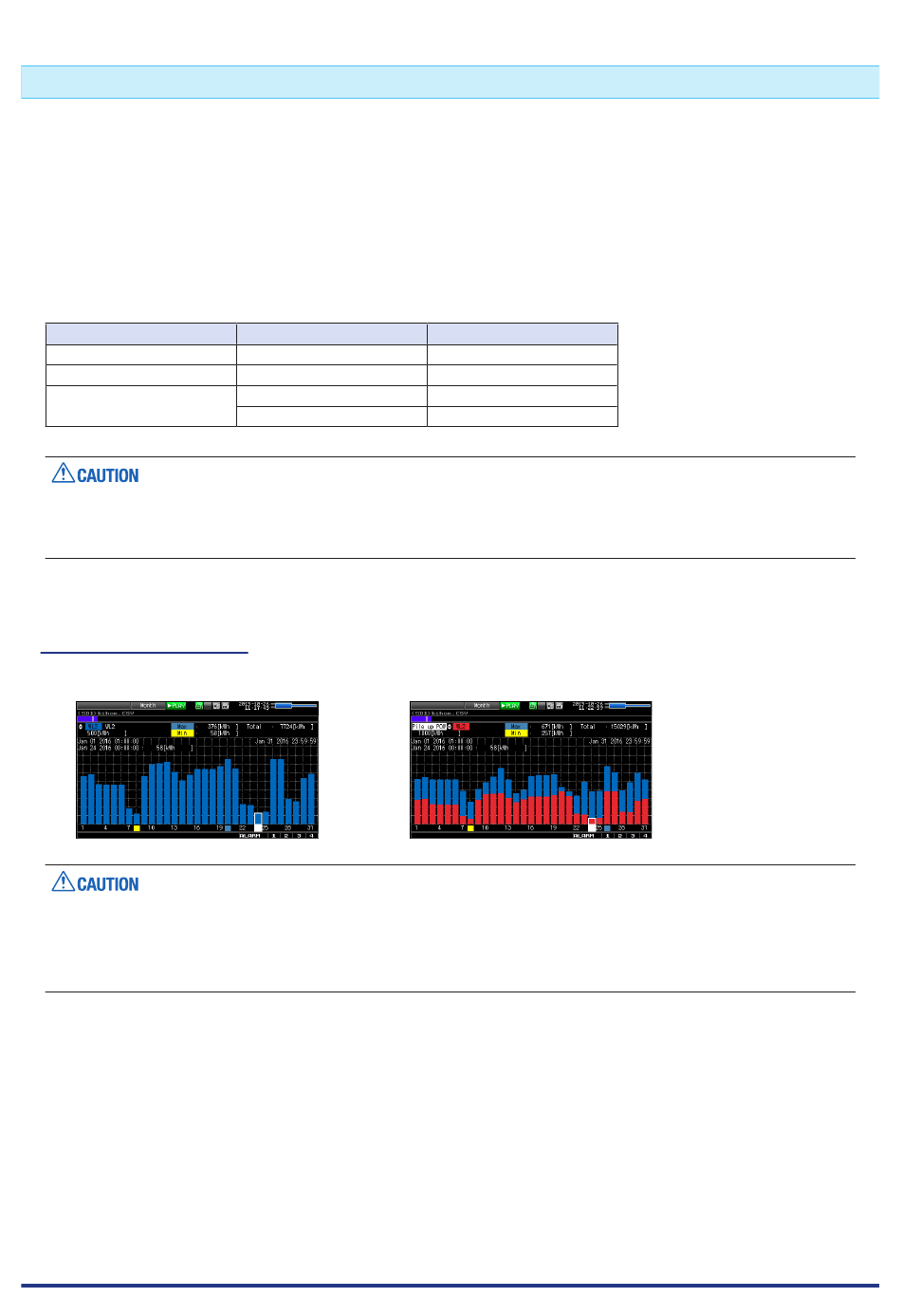

(11) Integrated bar graph display

By capturing the data after connecting to the GL100 that the integrated CH display possible GS sensor has
been connected, the captured data can be displayed on the Integrated Bar Graph screen.
Normally, the waveforms that has been piled up from the capture start are displayed in the Replay display.
But in the Integrated Bar Graph display, the increment of the specified period of time can be displayed.
In addition, the pile up bar graph that piled up a plurality of same kind of integrated data can be displayed.
The integrated CH display possible GS sensors are as follows;
For details on use of each GS sensor/GL100, please refer to the instruction manual supplied with the each
GS sensor/GL100.
Display possible sensor
WL+GS-TH
WL+GS-DPA-AC
WL+GS-LXUV
When the data without integrated CH, or the external sampling is selected, the integrated bar graph is not
displayed.
The CH data calculated between CHs is not displayed in the integrated bar graph.
(11)-1 Screen display
<CH select mode>
The CH is displayed individually.
The pile up display can be viewed only when the GL240 is connected with WL+GS-DPA-AC, the AC clamp
mode is set to single-phase 2-wire, and the integrated power is selected for both the 2CH and 4CH.
The pile up display can be selected only when the same kind of integrated CH exists two or more.
For details on ALARM function, please refer to "3.1 Window names and functions".
Input
Integrated temperature
Integrated power
Integrated illuminance
Integrated ultraviolet
<Pile up select mode>
The data is displayed as a single graph after adding the same kind of CH.
CHAPTER 3 Settings and Measurement
Unit
℃h
kWh
Lxh or klxh
2
mW/cm
h
3-83
